Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

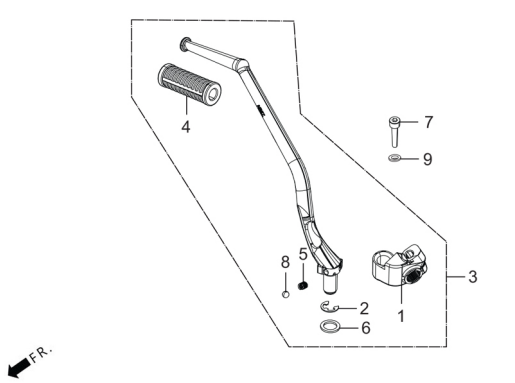

Other parts on this diagram — F17A - Kick Starter
- 9410208000S — Hero XPulse 200 WASHER, PLAIN, 8MM
- 9621108000S — Hero XPulse 200 BALL STEEL 8 MM
- 958010803807S — Hero XPulse 200 BOLT FLANGE 8X38
- 90505KRM860S — Hero XPulse 200 WASHER, 15.5 X 22
- 28333KK0000S — Hero XPulse 200 SPRING, KICK STARTER ARM SET
- 28311KC5000S — Hero XPulse 200 STARTER RUBBER, KICK
- 28300ABWL00S — Hero XPulse 200 ARM ASSY. KICK STARTER
- 28293333000S — Hero XPulse 200 CLIP, KICK STARTER ARM
