28124H6T900Sym Joymax Z+ 125 E5 START. CLUTCH ROLLER SPG. — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

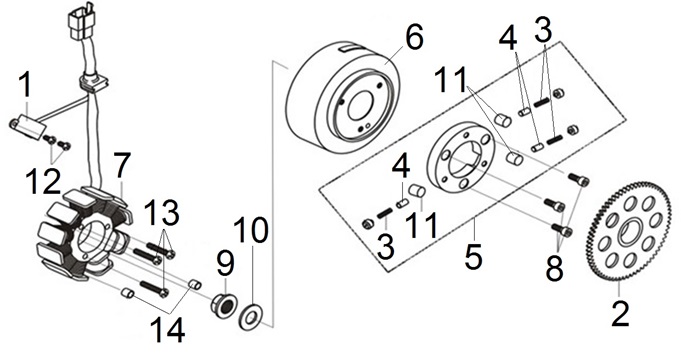

Location in exploded diagrams
Other parts on this diagram — AC Gen Assy
- 9430108140 — Sym Joymax Z+ 125 E5 DOWEL PIN 8*14
- 93500050350A — Sym Joymax Z+ 125 E5 PAN SCREW 5X35
- 93500050160A — Sym Joymax Z+ 125 E5 PAN SCREW 5X16
- 91105M9Q000 — Sym Joymax Z+ 125 E5 ROLLER
- 90401KJ9000 — Sym Joymax Z+ 125 E5 THRUST WASHER 14X28X2
- 90201KR8751M1 — Sym Joymax Z+ 125 E5 FLANGE NUT 14MM
- 90001KN7670 — Sym Joymax Z+ 125 E5 SPECIAL BOLT 6X12
- 90004M9Q000 — Sym Joymax Z+ 125 E5 SOCKET BOLT 6*12
- 31120LVA000 — Sym Joymax Z+ 125 E5 STATOR COMP
- 31110LK2000 — Sym Joymax Z+ 125 E5 FLYWHEEL COMP
- 2812AL1N300 — Sym Joymax Z+ 125 E5 ONE WAY CLUTCH ASSY
- 28126323000 — Sym Joymax Z+ 125 E5 CLUTCH ROLLER SPRING CAP
- 28126M9Q000 — Sym Joymax Z+ 125 E5 STARTING ROLLER SPRING CAP
- 28124H6T000 — Sym Joymax Z+ 125 E5 START. CLUTCH ROLLER SPG.
- 28110H9A900 — Sym Joymax Z+ 125 E5 STARTING CLUTCH GEAR COMP
- 15713H9A000 — Sym Joymax Z+ 125 E5 OIL BAFFLEPLATE
