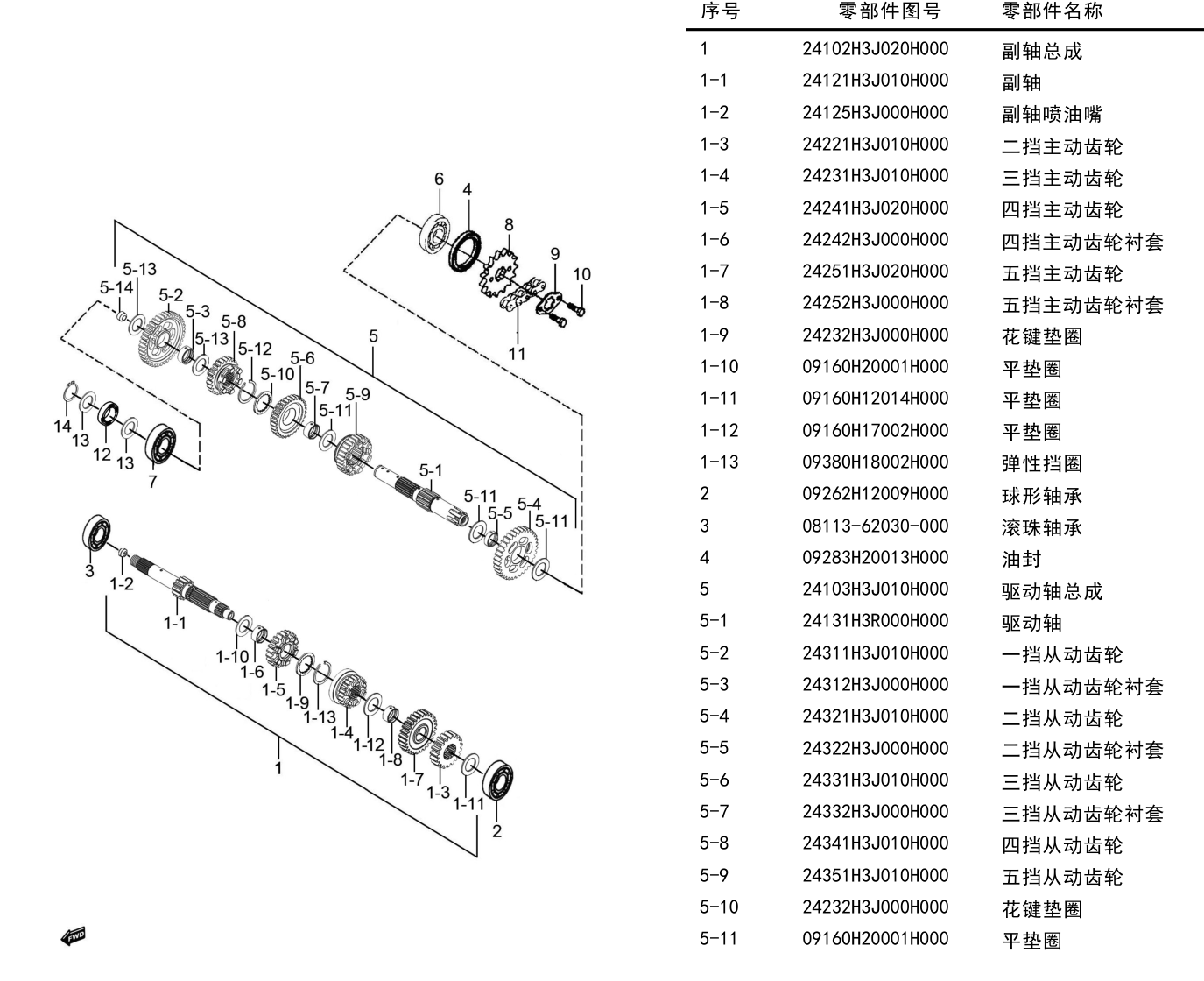

Location in exploded diagrams
Other parts on this diagram — 变速器组
- #1 24102H3J020H000 — 副轴总成
- #1-1 24121H3J010H000 — 副轴
- #1-2 24125H3J000H000 — 副轴喷油嘴
- #1-3 24221H3J010H000 — 二挡主动齿轮
- #1-4 24231H3J010H000 — 三挡主动齿轮
- #1-5 24241H3J020H000 — 四挡主动齿轮
- #1-6 24242H3J000H000 — 四挡主动齿轮衬套
- #1-7 24251H3J020H000 — 五挡主动齿轮
- #1-8 24252H3J000H000 — 五挡主动齿轮衬套
- #1-9 24232H3J000H000 — 花键垫圈
- #1-10 09160H20001H000 — 平垫圈
- #1-11 09160H12014H000 — 平垫圈
- #1-12 09160H17002H000 — 平垫圈
- #1-13 09380H18002H000 — 弹性挡圈
- #2 09262H12009H000 — 球形轴承
- #3 08113-62030-000 — 滚珠轴承
- #4 09283H20013H000 — 油封
- #5 24103H3J010H000 — 驱动轴总成
- #5-1 24131H3R000H000 — 驱动轴
- #5-2 24311H3J010H000 — 一挡从动齿轮
- #5-3 24312H3J000H000 — 一挡从动齿轮衬套
- #5-4 24321H3J010H000 — 二挡从动齿轮
- #5-5 24322H3J000H000 — 二挡从动齿轮衬套
- #5-7 24332H3J000H000 — 三挡从动齿轮衬套
