Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

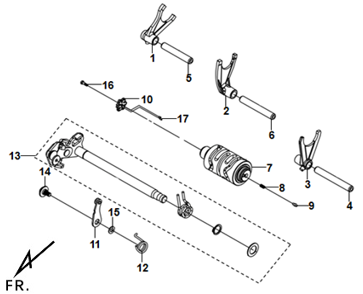

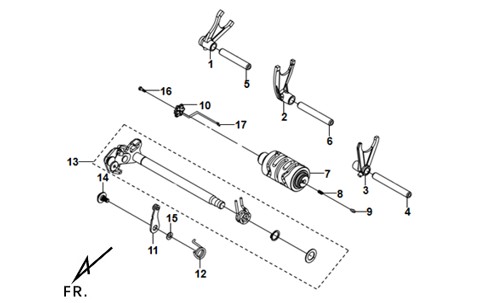

Other parts on this diagram — E10 - Gear Shift Mechanism
- 9622030085 — Sym NH-R 125 E5+ RALL3*8.5
- 92000060200H — Sym NH-R 125 E5+ HEX BOLT 6*20
- 92101060200H — Sym NH-R 125 E5+ HEX BOLT 6*20
- 90479X01000 — Sym NH-R 125 E5+ WASHER 6MM
- 90023NHA000 — Sym NH-R 125 E5+ STOPPER ARM PIVOT BOLT
- 2461AVF3000 — Sym NH-R 125 E5+ GEAR SHIFT SPINDLE ASSY.
- 24435BAD000 — Sym NH-R 125 E5+ SHIFT DRUM STOPPER SPRING
- 24430VF3000 — Sym NH-R 125 E5+ SHIFT DRUM SOPPER COMP.
- 24410VF3000 — Sym NH-R 125 E5+ SHIFT CAM PLATE COMP.
- 24323VF3000 — Sym NH-R 125 E5+ GEAR INDICATION DRILL
- 24319VF3000 — Sym NH-R 125 E5+ GEAR INDICATION DRILL SPR.
- 24243VF5000 — Sym NH-R 125 E5+ CENTER GEAR SHIFT FORK SHAFT
- 24242VF5000 — Sym NH-R 125 E5+ R. GEAR SHIFT FORK SHAFT
- 24241VF5000 — Sym NH-R 125 E5+ L.SHIFT FORK GUIDE SHAFT
- 24213VF3000 — Sym NH-R 125 E5+ L. GEAR SHIFT FORK
- 24212VF3000 — Sym NH-R 125 E5+ CENTER GEAR SHIFT FORK
- 24211VF3000 — Sym NH-R 125 E5+ R. GEAR SHIFT FORK
