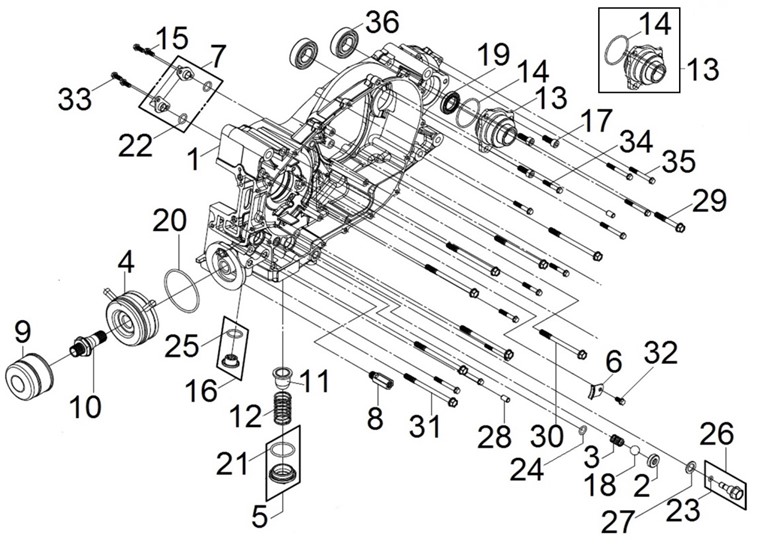

Location in exploded diagrams
Other parts on this diagram — L CRANK CASE
- 91204HMA000M2 — Sym MAXSYM TL 508 E5 OIL SEAL 25*40*7
- 15402TL1000 — Sym MAXSYM TL 508 E5 OIL FILTER BOLT
- 1540ATL1000 — Sym MAXSYM TL 508 E5 Oil Filter
- 1522ATL1000 — Sym MAXSYM TL 508 E5 OIL PIPE ASSY
- 11360TL1000 — Sym MAXSYM TL 508 E5 OIL COOLER ASSY
- 11202TL1000 — Sym MAXSYM TL 508 E5 CHECK BALL SPRING
- 11201TL1000 — Sym MAXSYM TL 508 E5 OIL SEAL VCY 11x23x7
- 11200TLA000 — Sym MAXSYM TL 508 E5 L CRANK CASE COMP GY-7520U
- 961006205000 — Sym MAXSYM TL 508 E5 RADIAL BALL BEARING 6205T
- 960010605000 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X50
- 960010603500 — Sym MAXSYM TL 508 E5 FLANGE SH BOLT 6X35
- 960010601400 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X14
- 960010601200 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X12
- 957010811000 — Sym MAXSYM TL 508 E5 FLANGE BOLT 8*110
- 957010809500 — Sym MAXSYM TL 508 E5 FLANGE BOLT 8*95
- 957010805500 — Sym MAXSYM TL 508 E5 FLANGE BOLT 8*55
- 9430108140 — Sym MAXSYM TL 508 E5 DOWEL PIN 8*14
- 9280ATL1000 — Sym MAXSYM TL 508 E5 DRAIN PLUG BOLT ASSY
- 91311TL1000 — Sym MAXSYM TL 508 E5 O-RING 21.7*2.5
- 91310REA000 — Sym MAXSYM TL 508 E5 L.CASE OIL HOLE O-RING
- 91304TL1000 — Sym MAXSYM TL 508 E5 O-RING 4.8*2.4
- 91303107000 — Sym MAXSYM TL 508 E5 O-RING 3X35
- 91303B08000 — Sym MAXSYM TL 508 E5 OIL RING 35*3
- 91303377000 — Sym MAXSYM TL 508 E5 O-RING13.8*2.5
