23430LA2000Sym Joymax Z+ 125 E5 FINAL SHAFT COMP. — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

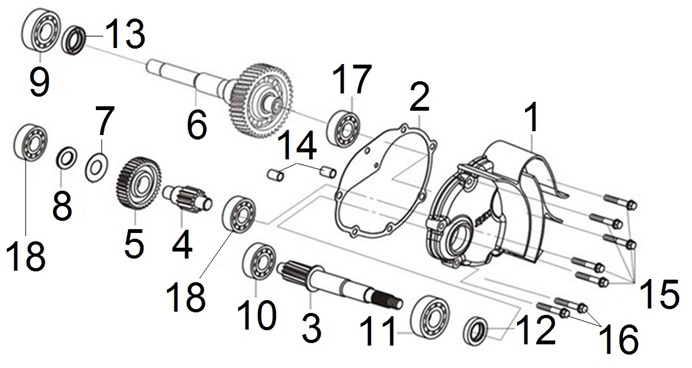

Other parts on this diagram — Mission Case & Drive Shaft
- 961006301300 — Sym Joymax Z+ 125 E5 RAD.BALL.BRG 6301 C3
- 961006203310 — Sym Joymax Z+ 125 E5 RAD.BRG.BALL 6203 C3/2A
- 960010603508 — Sym Joymax Z+ 125 E5 FLANGE BOLT SH 6X35
- 960010603008 — Sym Joymax Z+ 125 E5 FLANGE SH BOLT 6X30
- 9430108140 — Sym Joymax Z+ 125 E5 DOWEL PIN 8*14
- 91255L1A300 — Sym Joymax Z+ 125 E5 OIL SEAL 25.8*44*7
- 91202M8Q900 — Sym Joymax Z+ 125 E5 OIL SEAL 20X32X6
- 91104KN7670 — Sym Joymax Z+ 125 E5 RADIAL BALL BRG.6204
- 91003KS4003 — Sym Joymax Z+ 125 E5 RADIAL BALL BRG6301
- 91003M8Q000 — Sym Joymax Z+ 125 E5 RADAL BALL BRG.CSB301
- 91001L1A000 — Sym Joymax Z+ 125 E5 RADIAL BALL BEARING 60/22
- 90459107000 — Sym Joymax Z+ 125 E5 THRUST WASHER 12MM
- 90453M36000 — Sym Joymax Z+ 125 E5 THRUST WASHER 12MM
- 90401E5A000 — Sym Joymax Z+ 125 E5 CONED WASHER 12MM
- 23422LYD000 — Sym Joymax Z+ 125 E5 COUNTER GEAR
- 23421LYD000 — Sym Joymax Z+ 125 E5 COUNTER SHAFT 13T
- 23411L1N000 — Sym Joymax Z+ 125 E5 DRIVE SHAFT
- 21395L1N000 — Sym Joymax Z+ 125 E5 MISSION CASE GASKET
- 21301L1N000 — Sym Joymax Z+ 125 E5 MISSION COVER
