Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 104.42 | listing | motogbshop.co.uk |
Location in exploded diagrams

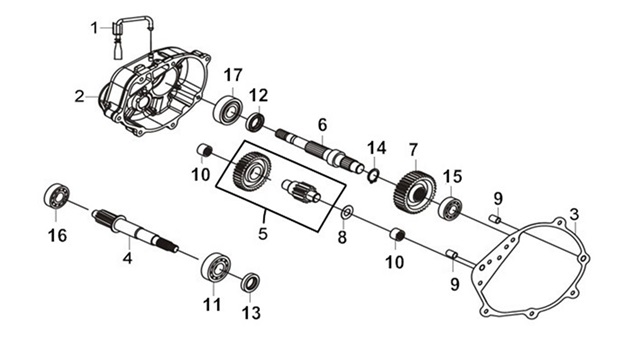

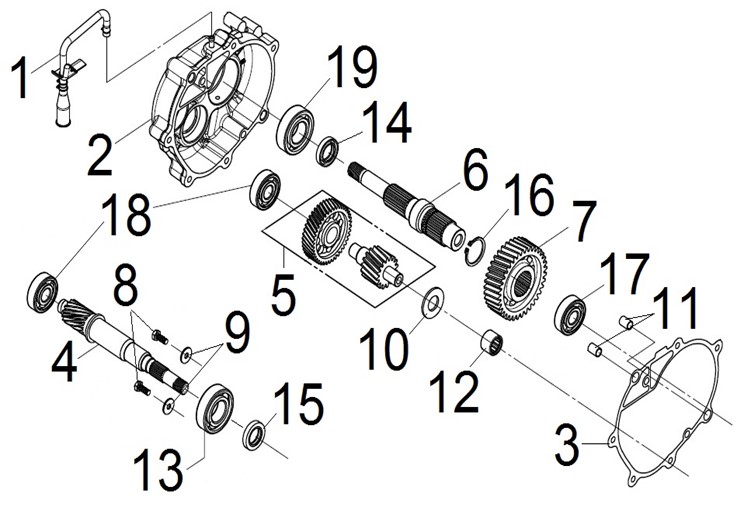

Other parts on this diagram — MISSION CASE
- 91204HMA000M2 — Sym CRUiSYM 300 E5 OIL SEAL 25*40*7
- 961506205010 — Sym CRUiSYM 300 E5 RADIAL BALL BRG. 6205LLU
- 961006302000 — Sym CRUiSYM 300 E5 RAD.BALL.BRG.6302
- 961006205010 — Sym CRUiSYM 300 E5 RADIAL BALL BEARING 6205/2AS
- 9451030000 — Sym CRUiSYM 300 E5 EX. CIRCLIP 30MM
- 91204HMA000 — Sym CRUiSYM 300 E5 OIL SEAL
- 91203HMA000 — Sym CRUiSYM 300 E5 OIL SEAL
- 91009HMC000 — Sym CRUiSYM 300 E5 BALL RADIAL BRG.CSB205 JR2C3
- 91002HWA000 — Sym CRUiSYM 300 E5 NEEDLE BRG.NK15*23*16
- 90703HC4000 — Sym CRUiSYM 300 E5 DOWEL PIN 10*14
- 9430110140 — Sym CRUiSYM 300 E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym CRUiSYM 300 E5 DOWEL PIN 10*14
- 90401HMA000 — Sym CRUiSYM 300 E5 THRUST WASHER 15MM
- 90401B9D000 — Sym CRUiSYM 300 E5 WASHER 6.2*18*1.6
- 23432LM7000 — Sym CRUiSYM 300 E5 FINAL GEAR 36T
- 23431L3A000 — Sym CRUiSYM 300 E5 FINAL SHAFT
- 23420LM7000 — Sym CRUiSYM 300 E5 COUNTER SHAFT COMP
- 21395L3A000 — Sym CRUiSYM 300 E5 MISSION CASE GASKET
- 21200L3A000 — Sym CRUiSYM 300 E5 MISSION CASE COMP
- 1122AHMA000 — Sym CRUiSYM 300 E5 MISSION BREATHER TUBE ASSY
