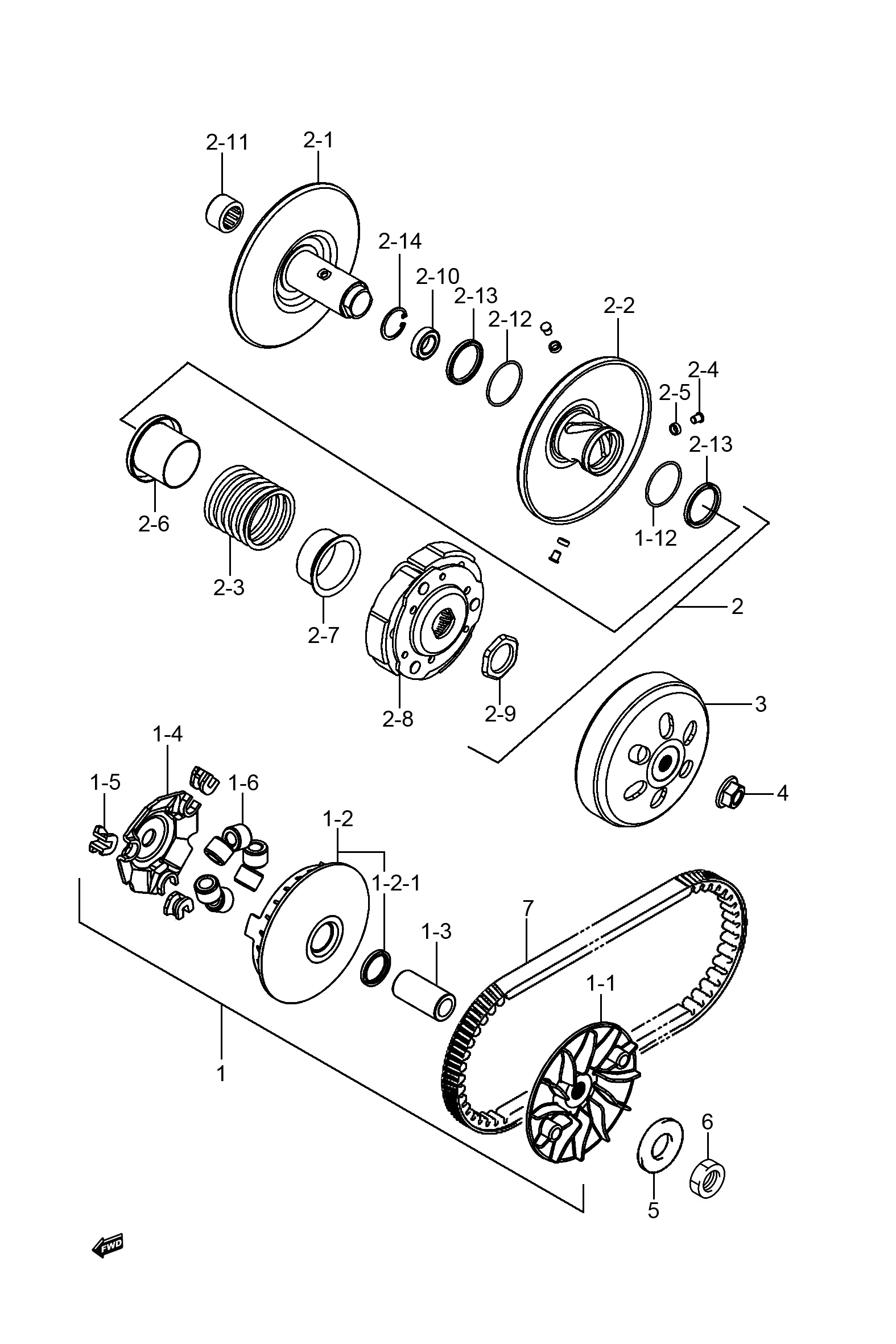

Location in exploded diagrams
Other parts on this diagram — 变速器组Ⅰ
- #3-8 21501H2C200H000 — 离合器离心蹄块总成
- #3-9 09140H28005H000 — 六角螺母
- #3-10 09262H15017H000 — 球形轴承
- #3-11 09263H20002H000 — 滚针轴承
- #3-12 09280H39004H000 — O形圈
- #3-13 09285H34005H000 — 油封
- #3-14 09381H30001H000 — 孔用挡圈
- #4 21200H2D421H000 — 从动皮带轮总成
- #4-1 21210H2C220H000 — 从动定皮带轮组成
- #4-2 21240H2D420H000 — 从动动皮带轮组成
- #4-3 21243H2D410H000 — 从动滑动皮带轮弹簧
- #4-4 21248H29000H000 — 从动动皮带轮定位销
- #4-5 21249H21D00H000 — 从动动皮带轮销
- #4-7 21471H21D00H000 — 从动动皮带轮衬套
- #4-9 09140-28007-000 — 六角螺母
- #4-12 09280H39001H000 — O形圈
- #4-14 08331-41289-000 — 弹性挡圈
- #6 21220H2C210H000 — 离合器外轮盘组成
- #7 27601H2C240H000 — 驱动皮带
- #1 21011H2C22AH000 — 变速器主动组合
- #1-2 21120H2D420H000 — 主动滑动皮带轮组成
- #2-2 21120H2D430H000 — 主动滑动皮带轮组成
- #3 21200H2D410H000 — 从动皮带轮总成
- #5 21220H2C220H000 — 离合器外轮盘组成
