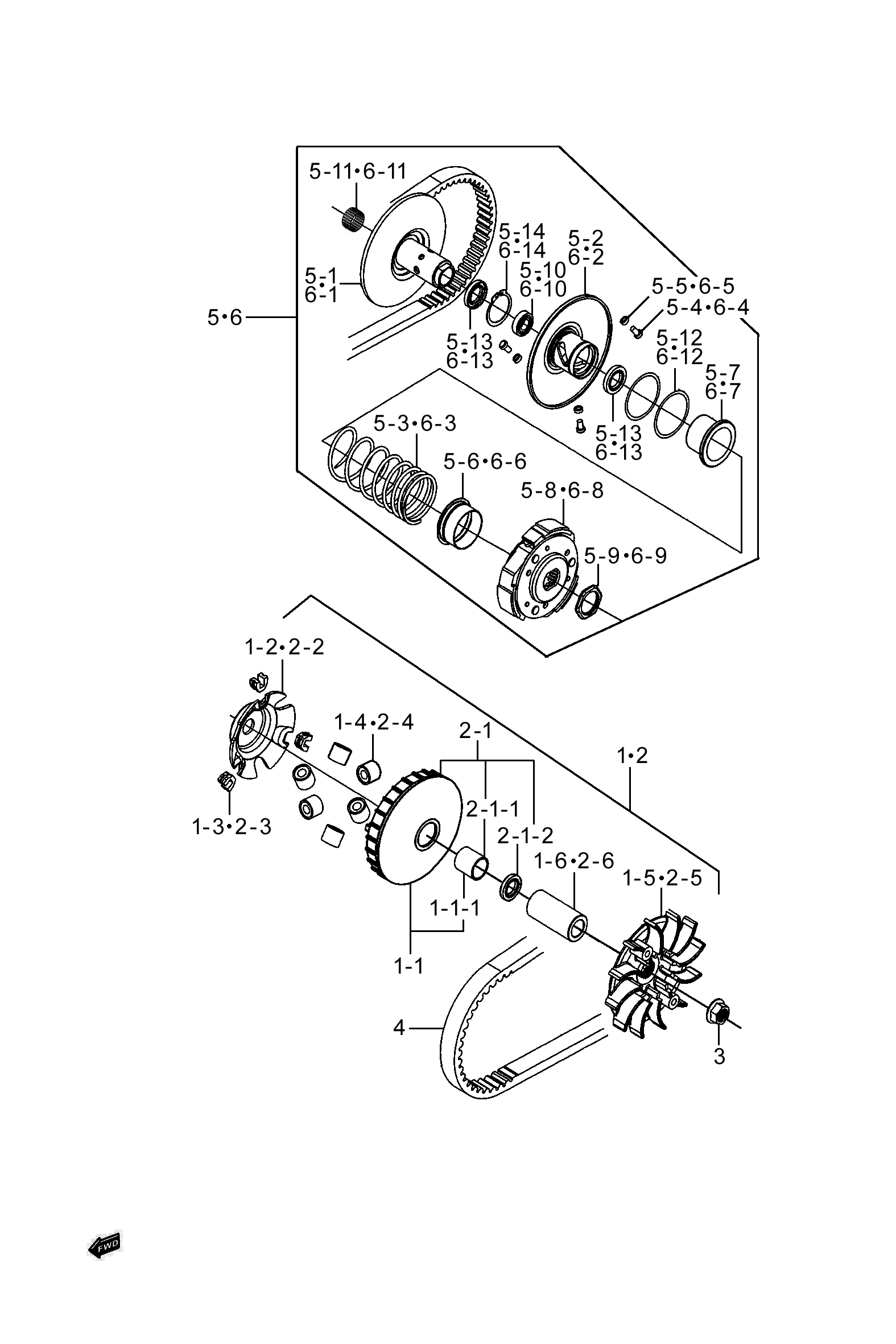

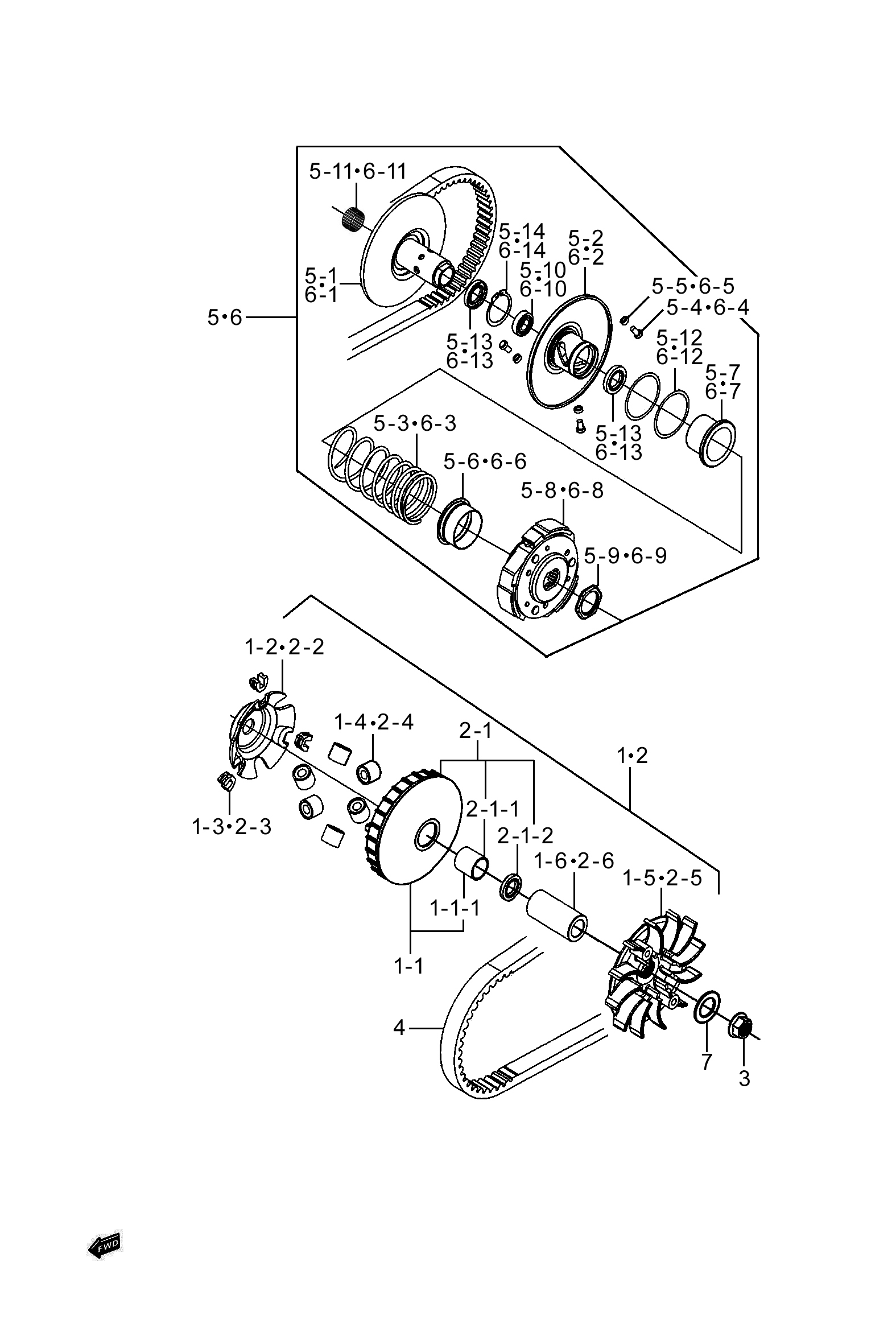

Other parts on this diagram — 变速器组Ⅰ
- #1 21011H2900AH000 — 变速器主动组合
- #1-2 21431H29000H000 — 主动滑动皮带轮传动板
- #1-3 21481H29000H000 — 主动滑动皮带轮传动板减震垫
- #1-6 21125H29000H000 — 主动滑动皮带轮轴套
- #2-2 21431H29010H000 — 主动滑动皮带轮传动板
- #2-3 21481H29010H000 — 主动滑动皮带轮传动板减震垫
- #3 08316-1012A-000 — 六角法兰面螺母
- #4 27601H29020H000 — 驱动皮带
- #5 21200H29060H000 — 从动皮带轮总成
- #5-1 21210H29001H000 — 从动定皮带轮组成
- #5-2 21240H29000H000 — 从动动皮带轮组成
- #5-3 21243H29030H000 — 从动滑动皮带轮弹簧
- #5-4 21248H29000H000 — 从动动皮带轮定位销
- #5-5 21249H21D00H000 — 从动动皮带轮销
- #5-6 21472H21D00H000 — 从动动皮带轮弹簧衬套
- #5-7 21471H21D00H000 — 从动动皮带轮衬套
- #5-8 21501H29030H000 — 离合器离心蹄块总成
- #5-9 09140-28007-000 — 六角螺母
- #5-10 09262H15017H000 — 球形轴承
- #5-12 09280H39001H000 — O形圈
- #5-13 09285H34002H000 — 油封
- #5-14 08331-41289-000 — 弹性挡圈
- #6-1 21210H29010H000 — 从动定皮带轮组成
- #6-2 21240H29010H000 — 从动动皮带轮组成
