Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

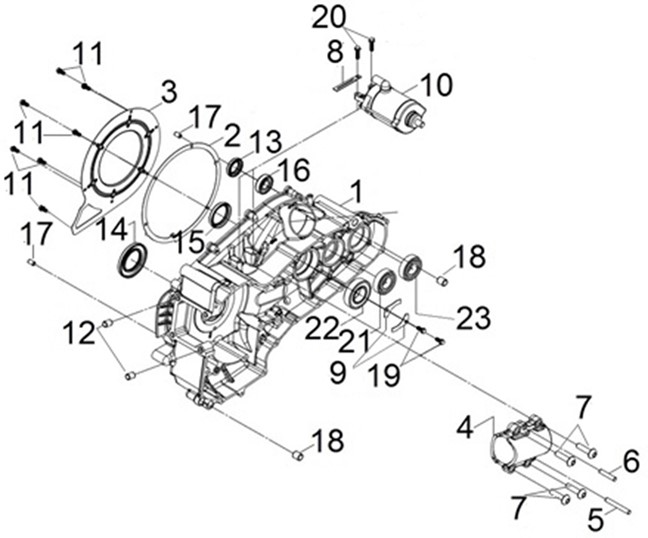

Location in exploded diagrams
Other parts on this diagram — R CRANK CASE
- 12113TL1000 — Sym MAXSYM TL 508 E5 BALANCE CYLINDER BOLT
- 12112TL1000 — Sym MAXSYM TL 508 E5 BALANCE CYLINDER DOWEL PIN B
- 12111TL1000 — Sym MAXSYM TL 508 E5 BALANCE CYLINDER DOWEL PIN A
- 12110TL1000 — Sym MAXSYM TL 508 E5 BALANCE CYLINDER
- 11112TL1002 — Sym MAXSYM TL 508 E5 CVT PLATE
- 11111TL1000 — Sym MAXSYM TL 508 E5 CVT PLATE GASKET
- 961006204000 — Sym MAXSYM TL 508 E5 RAD.BALL.BRG.6204T
- 961006206000 — Sym MAXSYM TL 508 E5 RADIAL BALL BEARING 6206
- 961006205000 — Sym MAXSYM TL 508 E5 RADIAL BALL BEARING 6205T
- 960010602200 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X22
- 960010601400 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X14
- 94301REA300 — Sym MAXSYM TL 508 E5 KNOCK PIN 14*16
- 9430108140 — Sym MAXSYM TL 508 E5 DOWEL PIN 8*14
- 91215RCA000 — Sym MAXSYM TL 508 E5 BEARING
- 91205TL1010 — Sym MAXSYM TL 508 E5 OIL SEAL HTCR 42*55*7
- 91204TL1000 — Sym MAXSYM TL 508 E5 OIL SEAL HTCR 44*75.8
- 91202RCA000 — Sym MAXSYM TL 508 E5 OIL SEAL(24X40X7)
- 91020TL1000 — Sym MAXSYM TL 508 E5 DOWEL PIN 12*16
- 90001AZA000 — Sym MAXSYM TL 508 E5 SH FLANGE BOLT 5*12
- 31200TL1000 — Sym MAXSYM TL 508 E5 START MOTOR ASSY
- 12342G02000 — Sym MAXSYM TL 508 E5 CLAMP
- 11100TL1010 — Sym MAXSYM TL 508 E5 R CRANK CASE COMP GY-7520U
