210416030010摇臂组件 — Genuine QJMOTOR Part
QJMOTORoemFactory supply status: Nicht verfügbar, muss bei QJ Motor bestellt werden, Lieferzeit 9-29 Tage, wenn beim Hersteller vorrätig
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (5)
Germany (2)

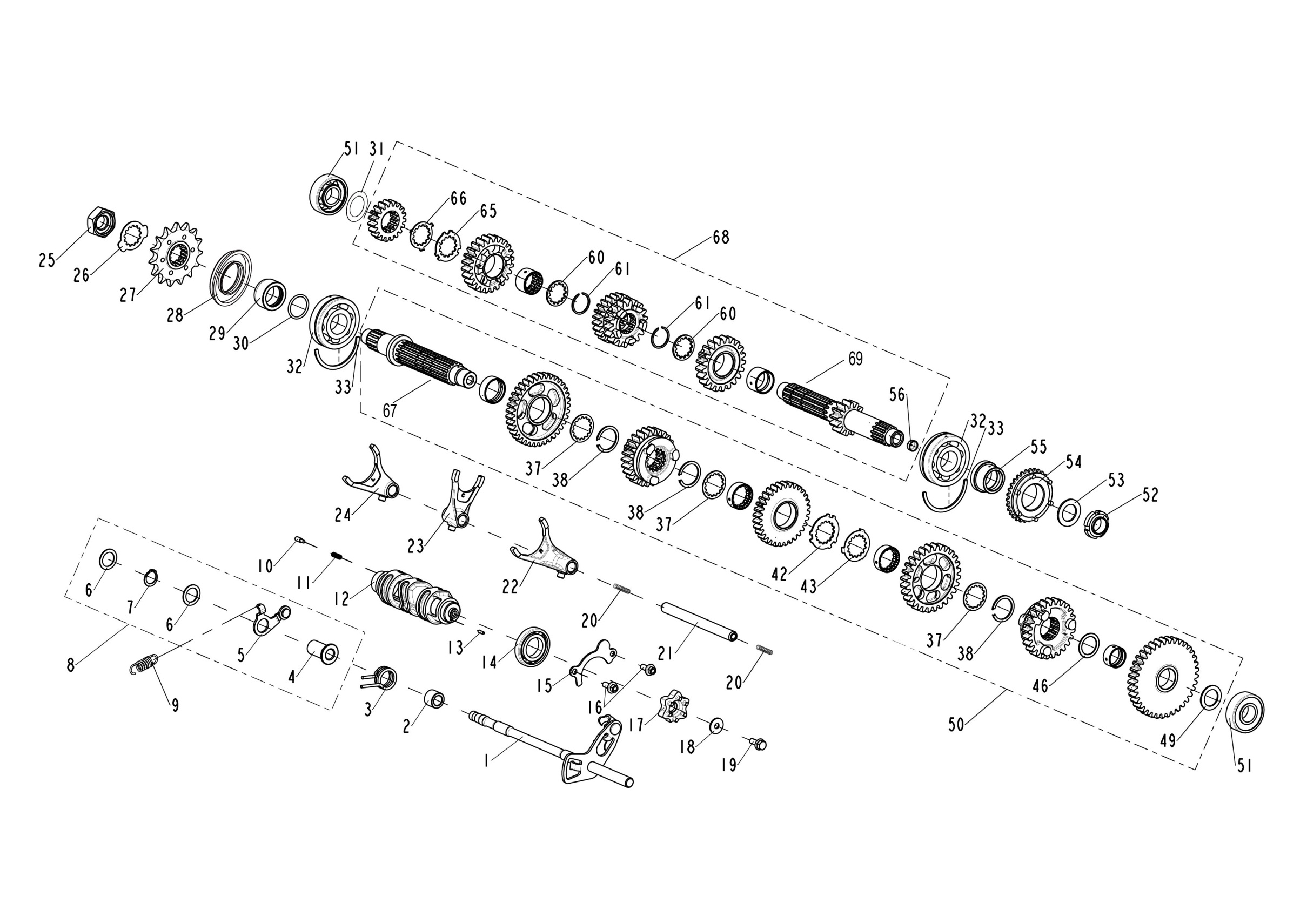

Location in exploded diagrams
Other parts on this diagram — COUNTER&DRIVE SHAFT ASSY&GEAR SHIFT MECHANISM(变速换档机构分总成)
- #1 210456030010 — 变档臂组件
- #2 210046030000 — 变档臂轴套
- #3 210056030000 — 变档臂弹簧
- #4 210396030000 — 止动臂轴套
- #6 210406030000 — 垫圈
- #7 B08010001701 — 轴用弹性挡圈17
- #8 210386030010 — 止动臂组件
- #9 210026030000 — 止动臂弹簧
- #10 210323090000 — 变档转换触头
- #11 210313090000 — 触头弹簧
- #12 219056030020 — 变档鼓
- #13 210356030000 — 定位销
- #14 B12016600501 — 轴承16005
- #15 210036030000 — 压板
- #16 B0109060146H — 螺栓M6×14
- #17 210366030000 — 荆轮
- #18 210376030000 — 垫片
- #19 B0107060156H — 螺栓M6×15
- #20 210016030000 — 拨叉轴弹簧
- #21 219086030000 — 拨叉轴
- #22 219126030000 — 右拨叉
- #23 219116030000 — 中拨叉
- #24 219106030000 — 左拨叉
- #25 210196030000 — 螺母M18×1.0
