1F30-050004NUT M22X1.5 — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
1F30-050004 - NUT M22X1.5 #12
Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (5)
United Kingdom (2)
China (1)
MY (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 4.32 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 4.00 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

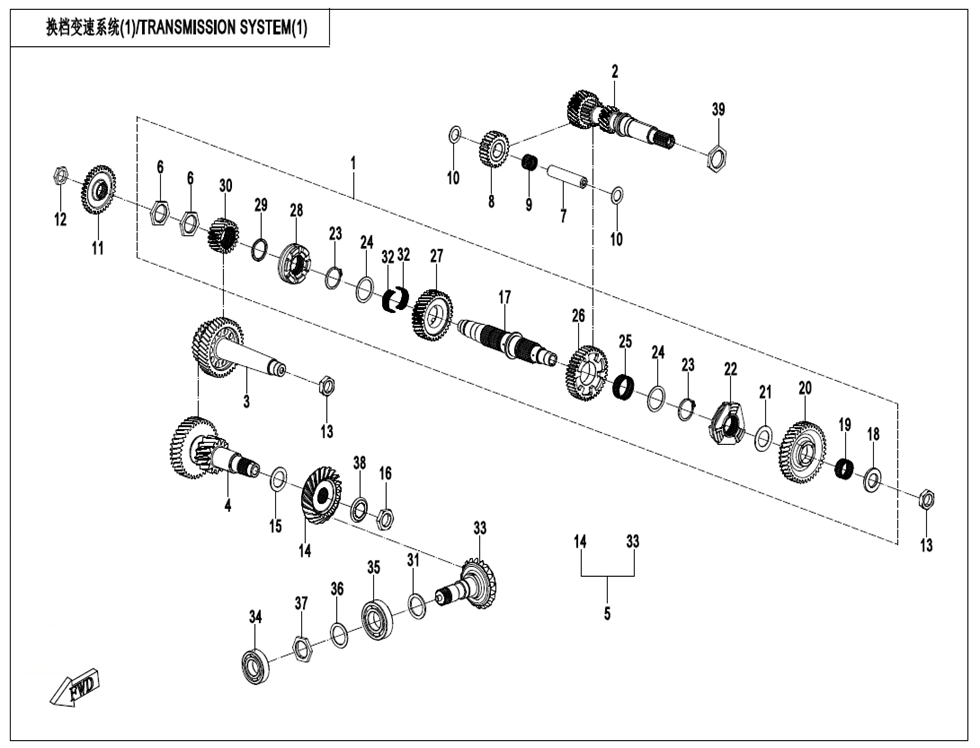

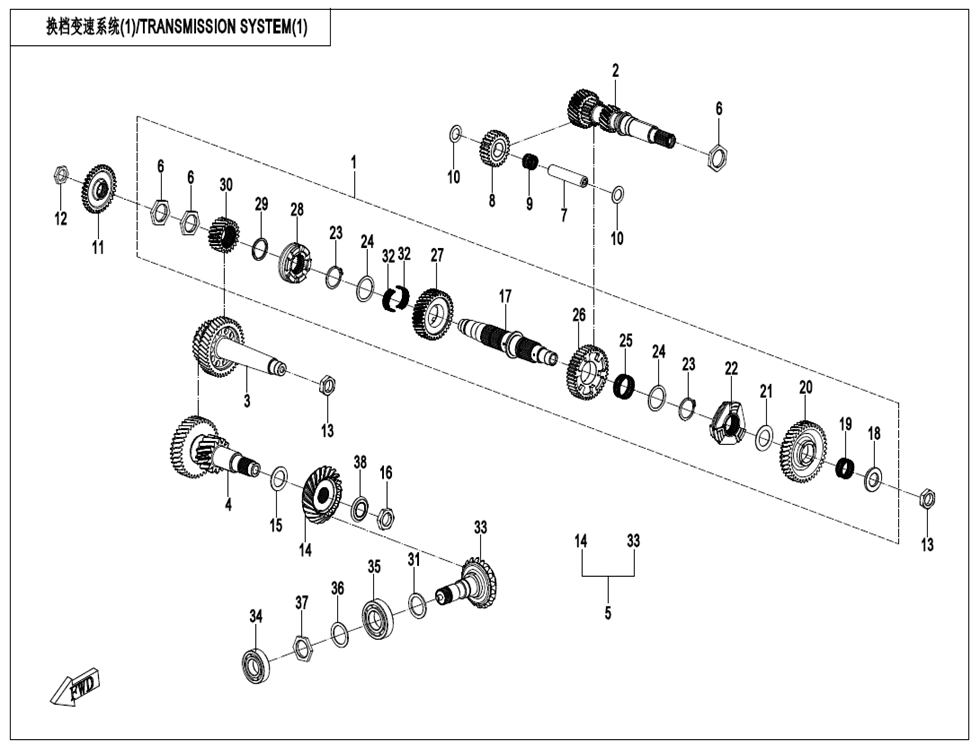

Other parts on this diagram — TRANSMISSION SYSTEM(1)
- #6 0NYV-060003-1001 — NUT
- #1 0NYV-062000-3003 — COUNTERSHAFT ASSY
- #2 0NYV-061000-3002 — MAIN SHAFT ASSY
- #3 0NYV-067000-1000 — INTERMEDIATE SHAFT ASSY
- #4 0NYV-068000-1001 — OUTPUT SHAFT ASSY
- #5 JBNY-06600Z-1000 — DRIVE AND DRIVEN BEVEL GEAR ASSY Replacing: SH-0NYV-0661A0 - BEVEL GEAR ASSY
- #7 0NYV-060002-1000 — REVERSE INTERMEDIATE GEAR SHAFT
- #8 0NYV-060001-1001 — REVERSE INTERMEDIATE GEAR
- #9 0NYV-061103-3000 — BEARING 20X26X18
- #10 0HUC-062009 — GASKET 20.5X32X1.5
- #11 0NYV-060008-1001 — PARKING GEAR
- #13 0NYV-060004-1000 — NUT M24X1.5
- #15 0NYV-066102-1000-Q0-00001 — DRIVE BEVEL GEAR WASHER T=1.325
- #15 0NYV-066102-1000-Q0-00002 — DRIVE BEVEL GEAR WASHER T=1.375
- #31 0NYV-066202-1000-Q0-00009 — DRIVEN BEVEL GEAR WASHER T=3.090
- #31 0NYV-066202-1000-Q0-00010 — DRIVEN BEVEL GEAR WASHER T=3.150
- #15 0NYV-066102-1000-Q0-00003 — DRIVE BEVEL GEAR WASHER T=1.425
- #15 0NYV-066102-1000-Q0-00004 — DRIVE BEVEL GEAR WASHER T=1.475
- #15 0NYV-066102-1000-Q0-00005 — DRIVE BEVEL GEAR WASHER T=1.525
- #15 0NYV-066102-1000-Q0-00006 — DRIVE BEVEL GEAR WASHER T=1.575
- #16 0NYV-060005-1001 — NUT
- #17 0NYV-062001-1001 — COUNTERSHAFT
- #18 0NYV-062002-1000 — COUNTERSHAFT WASHER 1
- #19 0NYV-062045-3000 — LOW GEAR ROLLER BEARING
