1B01L1N01Sym Joymax Z+ 125 E5 DRIVE BELT 824X22.2X28 — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

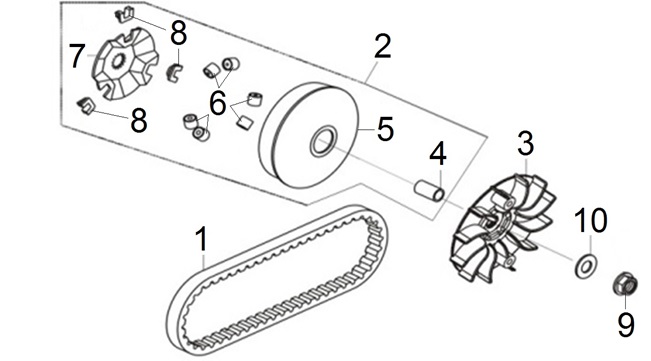

Location in exploded diagrams
Other parts on this diagram — Movable Drive Face Assy
- 90401KJ9000 — Sym Joymax Z+ 125 E5 THRUST WASHER 14X28X2
- 90201KR8751M1 — Sym Joymax Z+ 125 E5 FLANGE NUT 14MM
- 22132L1N000A — Sym Joymax Z+ 125 E5 SLIDE PIECE SET(3PCS/1SET)
- 22131L1N000 — Sym Joymax Z+ 125 E5 RAMP PLATE
- 22121L1N000A — Sym Joymax Z+ 125 E5 WEIGHT ROLLER(6PCS/1SET)
- 22110L1N000 — Sym Joymax Z+ 125 E5 MOVABLE DRIVE FACE COMP
- 22105L1N000 — Sym Joymax Z+ 125 E5 DRIVE FACE BOSS
- 22102L1N000 — Sym Joymax Z+ 125 E5 DRIVE FACE COMP
- 22000L1N000 — Sym Joymax Z+ 125 E5 MOVABLE DRIVE FACE ASSY
- 23100L1N000 — Sym Joymax Z+ 125 E5 Drive Belt
