196820002-0001Voge 525 ACX GEARSHIFT DRUM PLATE ASSY. — Genuine Voge Part
Vogeoem
Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 14.47 | listing | motogbshop.co.uk |

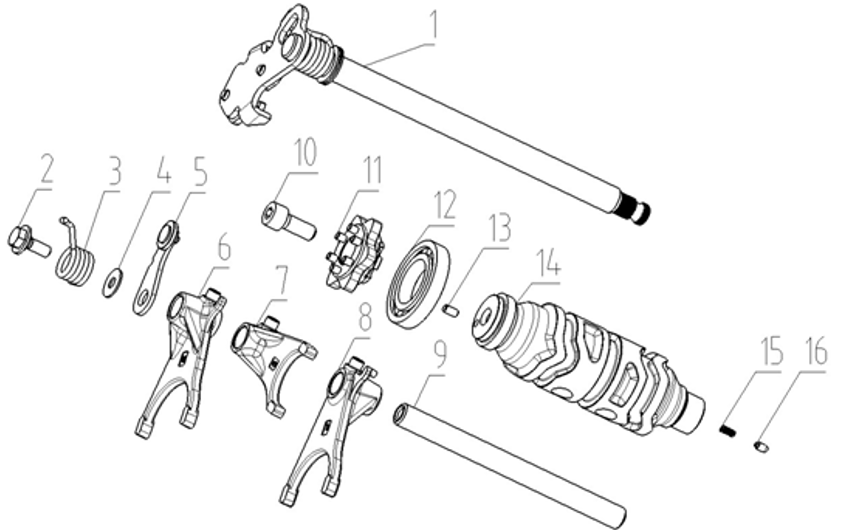

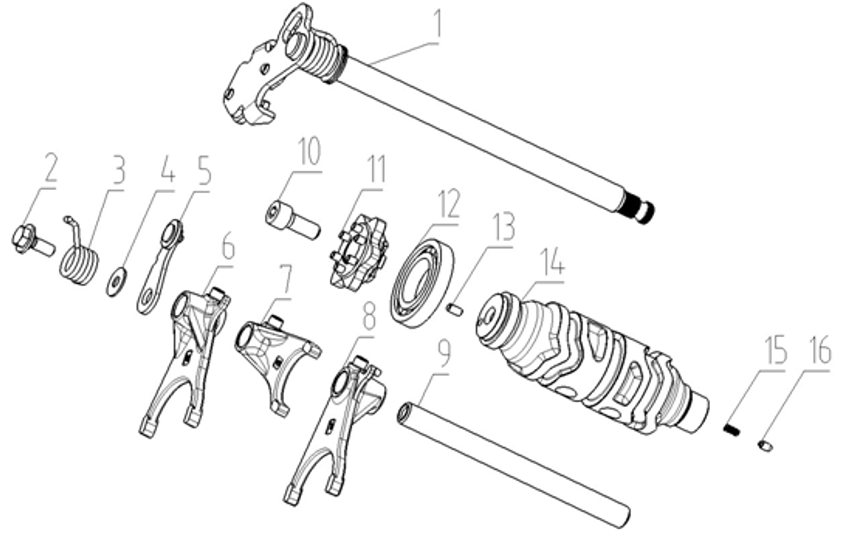

Location in exploded diagrams

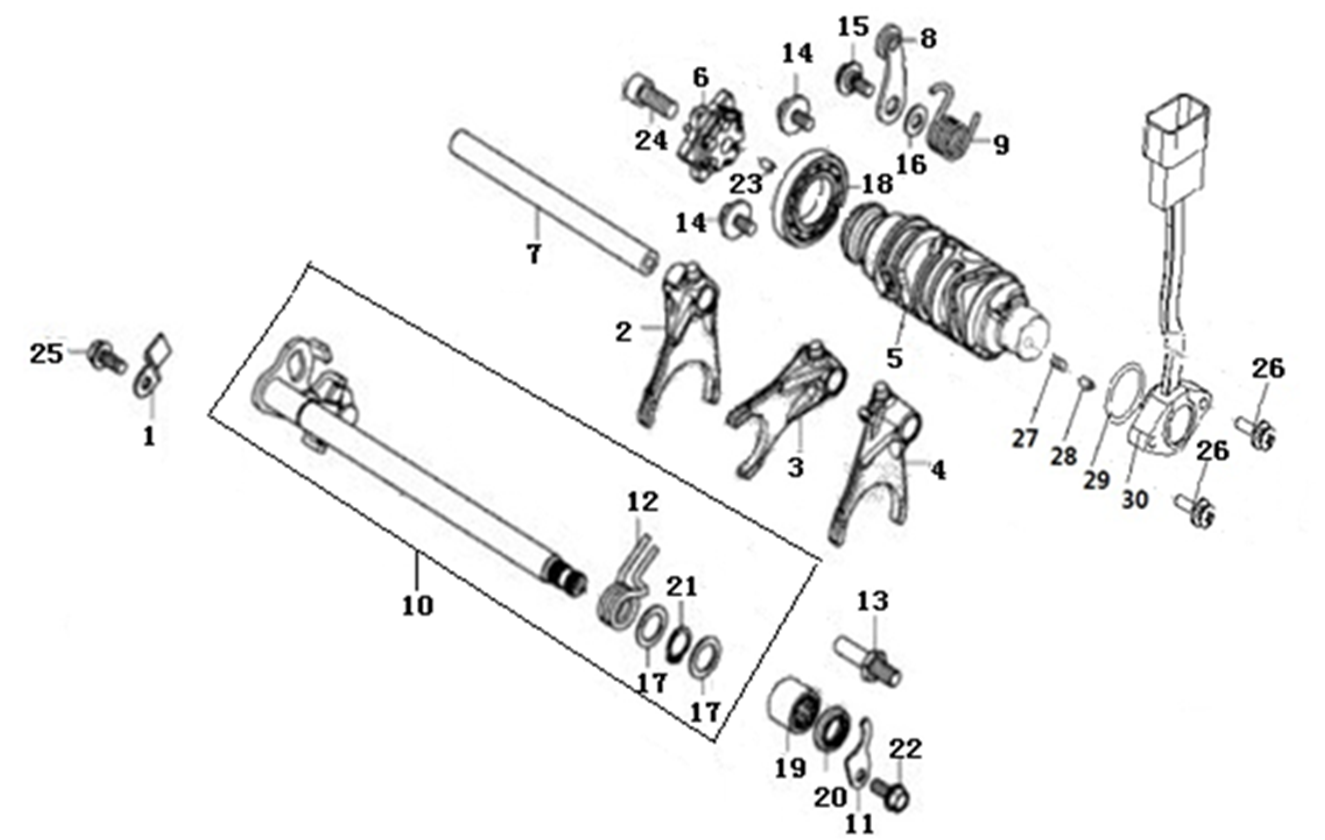

Other parts on this diagram — Speed Control Mechanism
- 270650098-0002 — Voge 525 ACX SWITCH COMP.,GEAR INDICATOR
- 380840012-0001 — Voge 525 ACX RING,SEAL
- 270720001-0001 — Voge 525 ACX SHIFT CONTACT,GEAR INDICATOR SWITCH
- 381150005-0001 — Voge 525 ACX SPRING,COMPRESSION
- 380680004-0004 — Voge 525 ACX SCREW,CROSS RECESSED PAN HEAD/WASHER,ELASTIC/WASHER,PLAIN COMP.
- 380140333-0001 — Voge 525 ACX BOLT,HEXAGON FLANGE
- 380190010-0008 — Voge 525 ACX SCREW,HEXAGON SOCKET
- 380610323-0001 — Voge 525 ACX PIN,CLEVIS
- 380140209-0001 — Voge 525 ACX BOLT,HEXAGON FLANGE
- 380650184-0001 — Voge 525 ACX OIL SEAL
- 380630471-0001 — Voge 525 ACX BEARING
- 380630470-0001 — Voge 525 ACX BEARING
- 380450227-0001 — Voge 525 ACX WASHER,PLAIN
- 192240007-0001 — Voge 525 ACX BOLT,CHECK PLATE
- 380710030-0001 — Voge 525 ACX BOLT/SCREW/WASHER,PALIN COMP.
- 192310008-0001 — Voge 525 ACX JACK BOLT,GEAR CHANGE ARM
- 197020001-0001 — Voge 525 ACX CHECK PLATE OF OIL SEAL ON GEARSHIFT SPINDLE
- 192320114-0001 — Voge 525 ACX ARM COMP.,GEAR CHANGE
- 381160229-0001 — Voge 525 ACX SPRING,TORSIONAL
- 192190024-0001 — Voge 525 ACX CHECK PLATE ASSY.
- 192130036-0001 — Voge 525 ACX SHAFT,SHIFT FORK GUIDE
- 192080075-0001 — Voge 525 ACX DRUM COMP.,GEAR SHIFT
- 192120077-0001 — Voge 525 ACX FORK,GEAR SHIFT
- 192120078-0001 — Voge 525 ACX FORK,GEAR SHIFT
