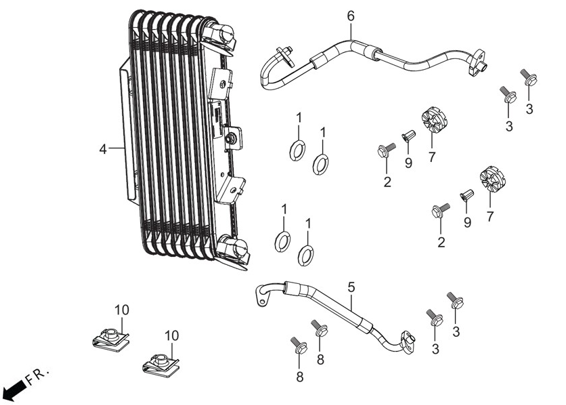

Location in exploded diagrams
Other parts on this diagram — F1B - Radiator
- 19014ABWB00S — Hero XPulse 200 SET NUT
- 19052MN8000S — Hero XPulse 200 COLLAR, RAD MT
- 957010602500S — Hero XPulse 200 BOLT, FLANGE, 6X 25
- 1552AABW800S — Hero XPulse 200 OIL HOSE B COMP
- 15510ABW800S — Hero XPulse 200 OIL HOSE A
- 15600ABW900S — Hero XPulse 200 OIL COOLER ASSEMBLY
- 960010602000S — Hero XPulse 200 BOLT, FLANGE, SH. 6 X 20
- 957010601607S — Hero XPulse 200 BOLT, FLANGE, 6 X 16
- 91314ME5003S — Hero XPulse 200 ORING, 10 X 2.6
