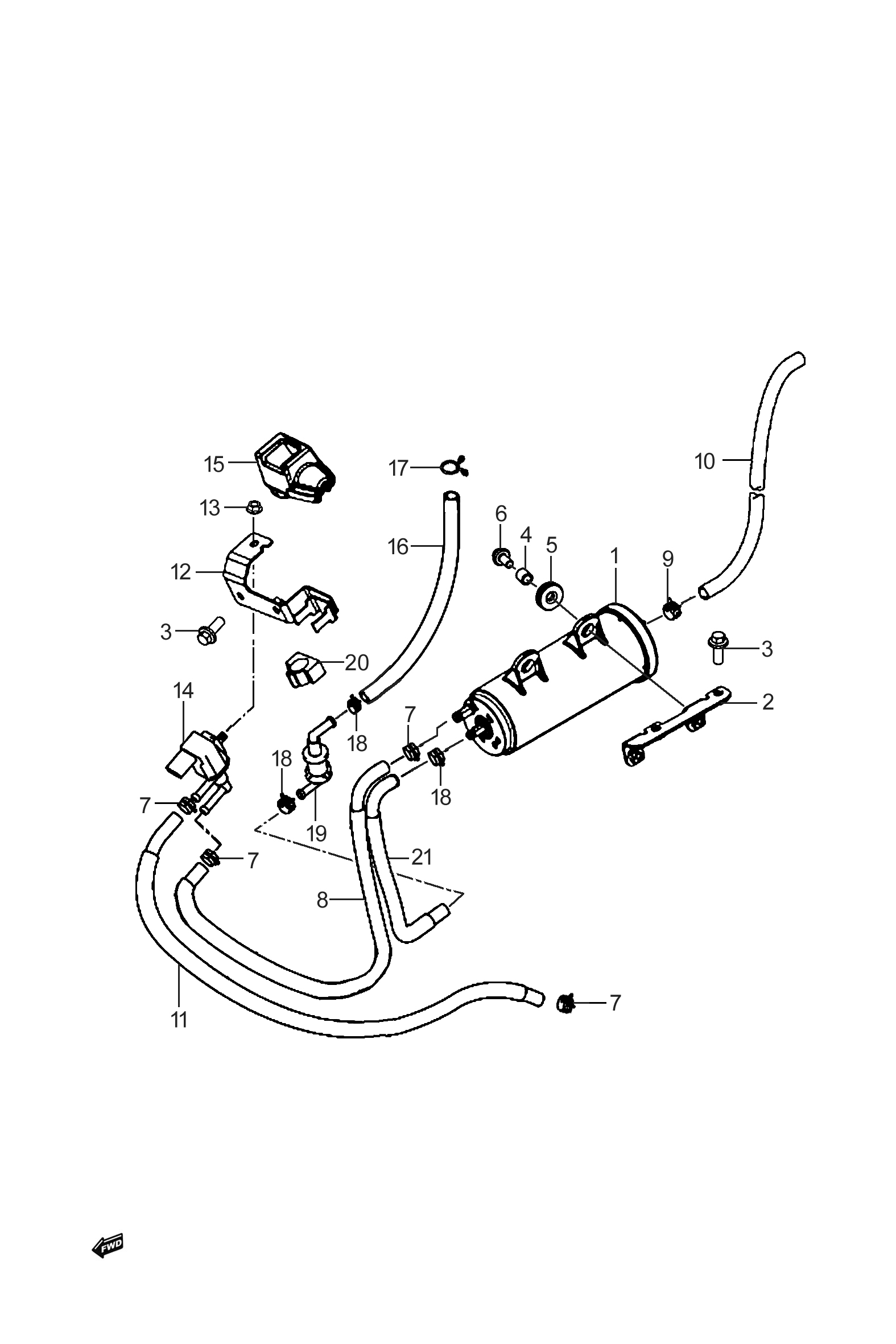

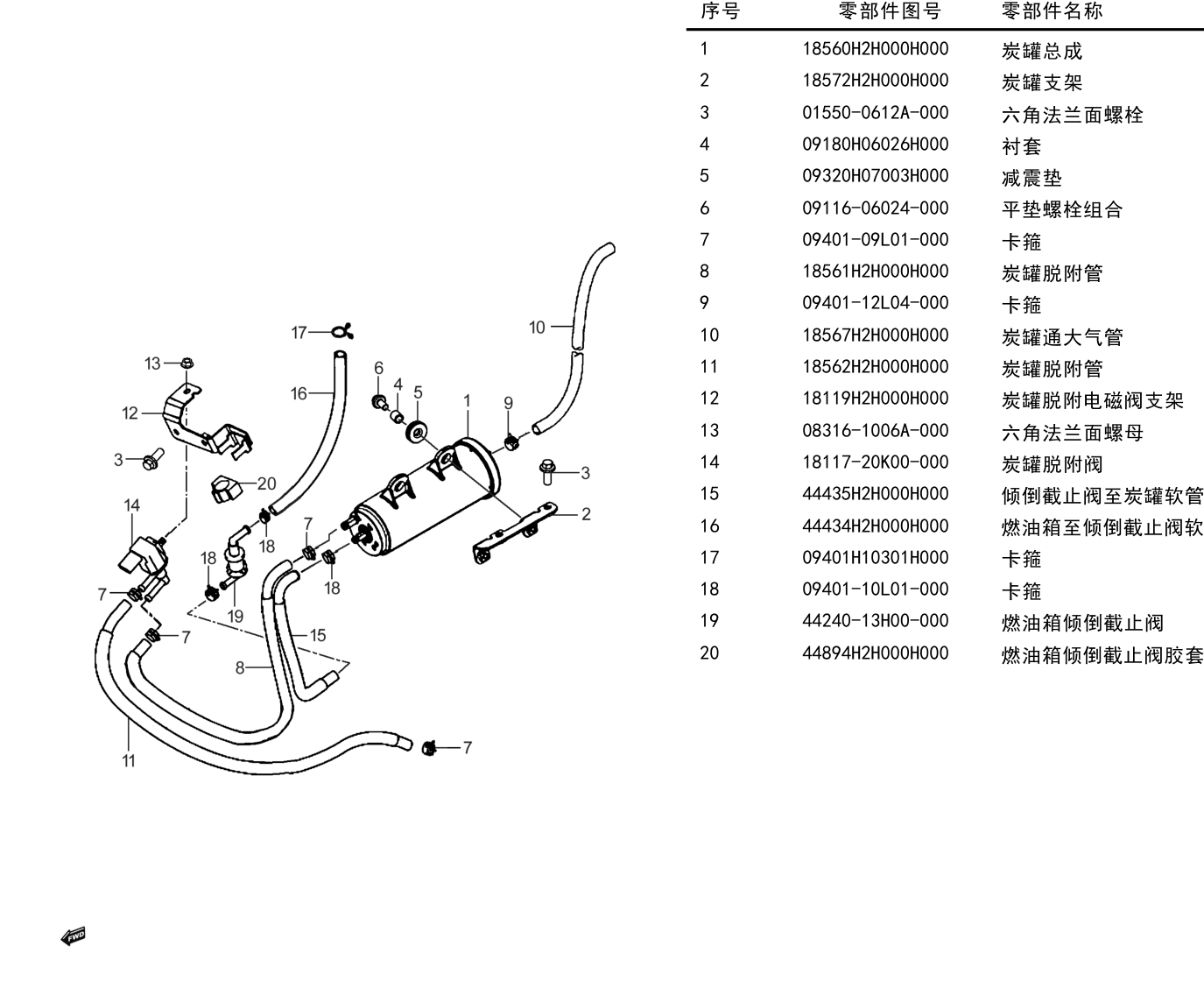

Other parts on this diagram — 燃油汽化组
- #1 18560H2H000H000 — 炭罐总成
- #2 18572H2H000H000 — 炭罐支架
- #3 01550-0612A-000 — 六角法兰面螺栓
- #4 09180H06026H000 — 衬套
- #5 09320-07014-000 — 减震垫
- #6 09116-06024-000 — 平垫螺栓组合
- #7 09401-09L01-000 — 卡箍
- #8 18561H2H000H000 — 炭罐脱附管
- #9 09401-12L04-000 — 卡箍
- #11 18562H2H000H000 — 炭罐脱附管
- #12 18119H2H000H000 — 炭罐脱附电磁阀支架
- #13 08316-1006A-000 — 六角法兰面螺母
- #14 18117-20K00-000 — 炭罐脱附阀
- #21 44435H2H000H000 — 倾倒截止阀至炭罐软管
- #15 15719H2H020H000 — 隔音套
- #16 44434H2H000H000 — 燃油箱至倾倒截止阀软管
- #17 09401H10301H000 — 卡箍
- #18 09401-10L01-000 — 卡箍
- #19 44240-13H00-000 — 燃油箱倾倒截止阀
- #20 44894H2H000H000 — 燃油箱倾倒截止阀胶套
