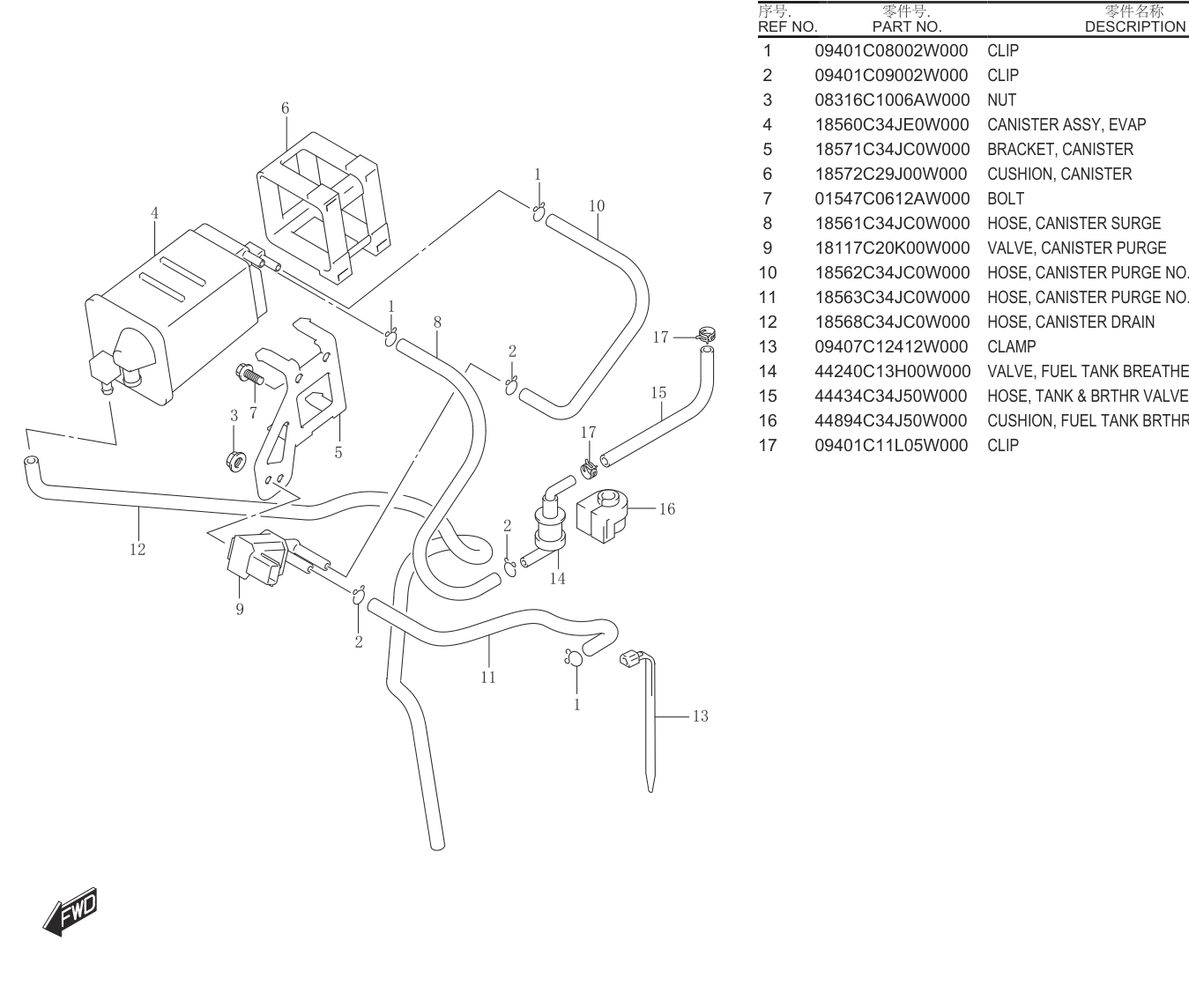

Location in exploded diagrams
Other parts on this diagram — EVAP SYSTEM................... 48
- #1 09401C08002W000 — CLIP NO.1
- #2 09401C09002W000 — CLIP NO.2
- #3 08316C1006AW000 — NUT
- #4 18560C34JE0W000 — CANISTER ASSY, EVAP
- #5 18571C34JC0W000 — BRACKET, CANISTER
- #6 18572C29J00W000 — CUSHION, CANISTER
- #7 01547C0612AW000 — BOLT
- #8 18561C34JC0W000 — HOSE, CANISTER SURGE
- #9 18117C20K00W000 — VALVE, CANISTER PURGE
- #10 18562C34JC0W000 — HOSE, CANISTER PURGE NO.1
- #12 18568C34JC0W000 — HOSE, CANISTER DRAIN
- #13 09407C12412W000 — CLAMP
