Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

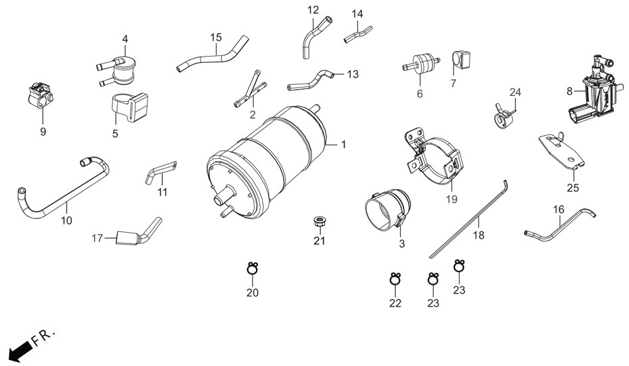

Other parts on this diagram — F11A - Carbon Canister
- 17554ABW20002S — Hero XPulse 200 STAY PURGE SOLENOID VALVE
- 950024080008S — Hero XPulse 200 CLAMP D 8.0 TUBE
- 9500270000S — Hero XPulse 200 CLIP, C11 TUBE
- 9500202130S — Hero XPulse 200 CLIP B 12.5 TUBE
- 9405006000S — Hero XPulse 200 NUT, FLANGE, 6 MM
- 9500202080S — Hero XPulse 200 CLIP, TUBE
- 50151AABA00S — Hero XPulse 200 CANISTER CLIP
- 17696ABW000S — Hero XPulse 200 TUBE DRAIN
- 17695AAM000S — Hero XPulse 200 TUBE AIR CANISTER
- 17671ABW200S — Hero XPulse 200 PURGE TUBE B
- 17694ABW000S — Hero XPulse 200 TUBE B J3W
- 17693ABW000S — Hero XPulse 200 TUBE A J3W
- 17691ABW000S — Hero XPulse 200 TUBE A CANISTER
- 17690ABW200S — Hero XPulse 200 TUBE A PIPE BREATHER
- 17697AAM000S — Hero XPulse 200 TUBE ONE WAY VALVE
- 17646MN8700S — Hero XPulse 200 RUBBER SEAL BREATHER
- 17554AAGA01S — Hero XPulse 200 PURGE SOLENOID VALVE
- 17431AAHA00S — Hero XPulse 200 SUSP. ONE WAY VALVE
- 17430AAE100S — Hero XPulse 200 ONE WAY VALVE
- 17421AAB500S — Hero XPulse 200 SUSP ROLL OVER VALVE
- 17420AADA00S — Hero XPulse 200 ROLL OVER VALVE
- 17411AAB500S — Hero XPulse 200 SUSP CANISTER
- 17230AAH100S — Hero XPulse 200 JOINT 3 WAY
- 17410AAM001S — Hero XPulse 200 CANISTER COMP
