Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 21.60 | listing | motogbshop.co.uk |
Location in exploded diagrams

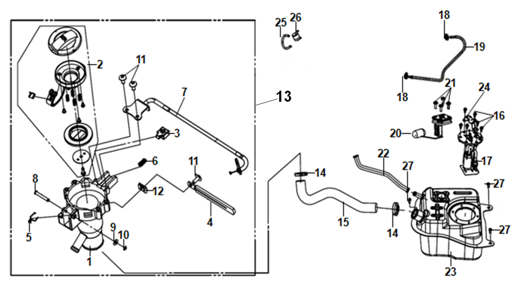

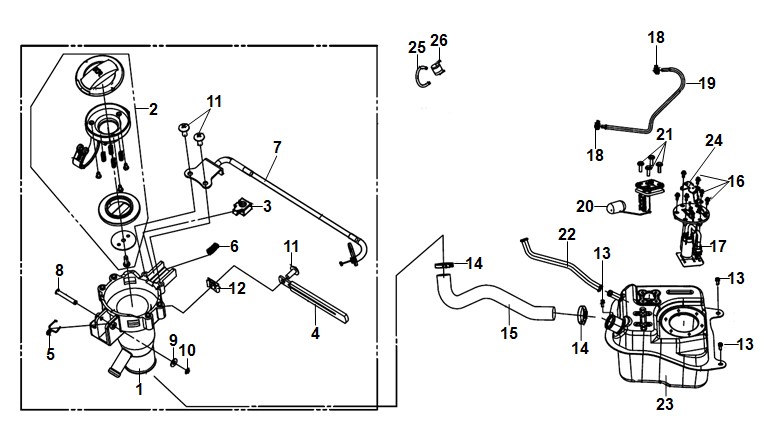

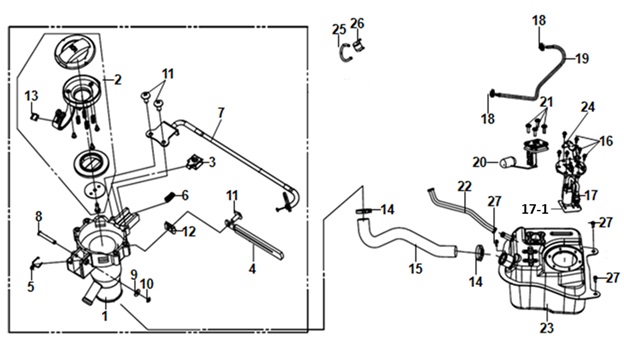

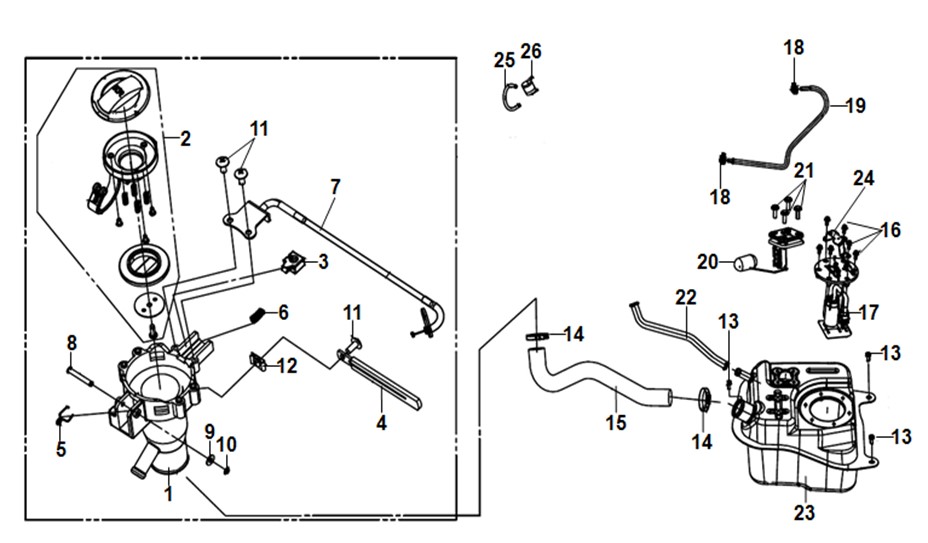

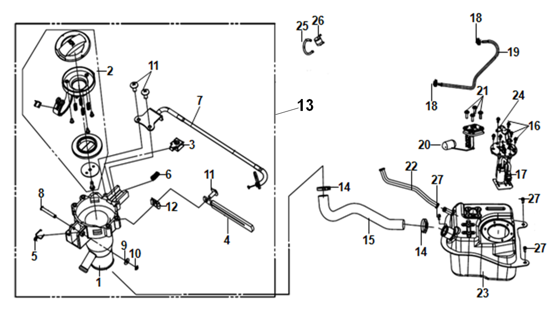

Other parts on this diagram — FUEL TANK
- 1762AFSG000 — Sym Jet 4 RX 125 E5 FUEL CAP ASSY
- 17580XB1000 — Sym Jet 4 RX 125 E5 FUEL CUT VALVE ASSY
- 17583XB1000 — Sym Jet 4 RX 125 E5 TANK-FCV TUBE
- 17503XB1000 — Sym Jet 4 RX 125 E5 FUEL TANK STAY
- 17500XB1000 — Sym Jet 4 RX 125 E5 FUEL TANK COMP.
- 17654XB1000 — Sym Jet 4 RX 125 E5 BREATHER TUBE B
- 9011AN13000 — Sym Jet 4 RX 125 E5 FLANGE SCREW M5*14
- 90116Z5C000 — Sym Jet 4 RX 125 E5 SPECIAL BOLT
- 9011ANHA000 — Sym Jet 4 RX 125 E5 FLANGE SCREW M5X14 ASSY
- 37800XVA000 — Sym Jet 4 RX 125 E5 Fuel unit ASSY
- 17682XB1000 — Sym Jet 4 RX 125 E5 FUEL TUBE
- 19505H5D000 — Sym Jet 4 RX 125 E5 HOSE CLAMP
- 19505H5D000TW — Sym Jet 4 RX 125 E5 HOSE CLAMP
- 16700Z5C010 — Sym Jet 4 RX 125 E5 FUEL PUMP
- 16700Z5C010CN2 — Sym Jet 4 RX 125 E5 FUEL PUMP
- 17651XB1000 — Sym Jet 4 RX 125 E5 FUEL NECK TUBE
- 17652TAA000 — Sym Jet 4 RX 125 E5 FILLER TUBE CLIP
- 9405006040 — Sym Jet 4 RX 125 E5 FLANGE NUT 6MM
- 90308X04000 — Sym Jet 4 RX 125 E5 SPRING NUT 5MM
- 9390325220 — Sym Jet 4 RX 125 E5 TAPPING SCREW 5*12
- 9454003010 — Sym Jet 4 RX 125 E5 E RING
- 9410104800 — Sym Jet 4 RX 125 E5 PLAIN WASHER 4MM
- 17664FDA000 — Sym Jet 4 RX 125 E5 FILLER PIPE HINGE PIN
- 77245XB1000 — Sym Jet 4 RX 125 E5 FUEL CAP LOCK CABLE
