Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

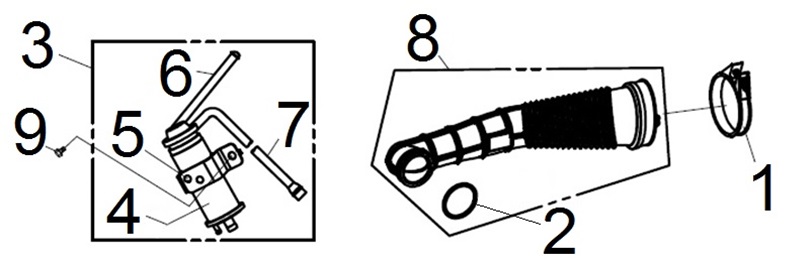

Location in exploded diagrams
Other parts on this diagram — Canister Set
- 957010601208 — Sym Joymax Z+ 125 E5 BOLT FLANGE 6X12
- 958010601208 — Sym Joymax Z+ 125 E5 FLANGE BOLT 6X12
- 1940AHTA000 — Sym Joymax Z+ 125 E5 L.COVER DUCT ASSY
- 17688L3D000 — Sym Joymax Z+ 125 E5 CANISTER-AIR/C. TUBE
- 17682L3D000 — Sym Joymax Z+ 125 E5 CANI-CARB. TUBE
- 17550HMB900 — Sym Joymax Z+ 125 E5 CANISTER ASSY
- 1730ALM7000 — Sym Joymax Z+ 125 E5 CANISTER SET
- 17242M9Q000 — Sym Joymax Z+ 125 E5 AIR/ C DUCT BAND
- 11346GY6900 — Sym Joymax Z+ 125 E5 BAND L COVER DUCT
- 11346M9Q000 — Sym Joymax Z+ 125 E5 L. COVER DUCT BAND
