17547ABW100SHero XPulse 200 PAD FUEL TANK MIDDLE — Genuine Hero Part
Herooem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

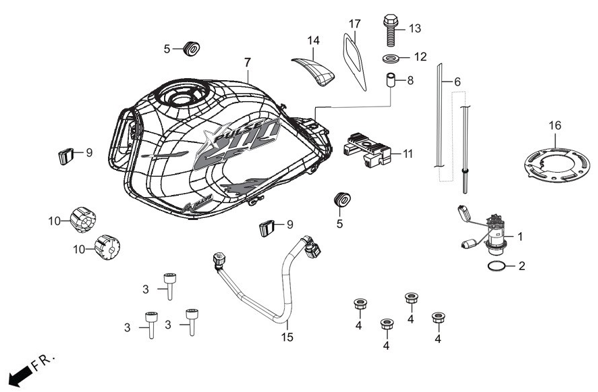

Location in exploded diagrams

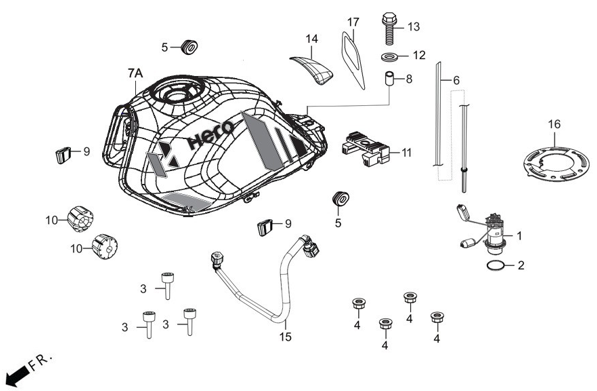

Other parts on this diagram — F11 PRO - Fuel Tank
- ABWZB4A000000GS — Hero XPulse 200 FILM PROTECTOR TANK FUEL
- 17521ABW200S — Hero XPulse 200 PLATE SETTING
- 17570ABW800S — Hero XPulse 200 FUEL HOSE
- 957010803200S — Hero XPulse 200 BOLT, FLANGE, 8?32
- 90534MV4000S — Hero XPulse 200 WASHER ,8.5X28
- 17613KCC900S — Hero XPulse 200 CUSHION, RR. TANK
- 17611KRY970S — Hero XPulse 200 CUSHION , FRONT FUEL TANK
- 77267KTR900S — Hero XPulse 200 RUBBER, COWL
- 90324KCC900S — Hero XPulse 200 COLLAR, 8 MM
- 17520ADR000RS — Hero XPulse 200 SET FUEL TANK (PEARL FADELESS WHITE NH341P)
- 17520ABW900WS — Hero XPulse 200 SET FUEL TANK (METALLIC NEXUS BLUE)
- 17520ABW900VS — Hero XPulse 200 SET FUEL TANK (SPORTS RED)
- 17520ABW900SS — Hero XPulse 200 SET FUEL TANK (POLESTAR BLUE)
- 17199AAC200S — Hero XPulse 200 TUBE DRAIN
- 83551300000S — Hero XPulse 200 GROMMET, AIR CLEANER CASE
- 9405006000S — Hero XPulse 200 NUT, FLANGE, 6 MM
- 90074KVE900S — Hero XPulse 200 BOLT SOCKET 4 X 21
- 17572AABC00S — Hero XPulse 200 GASKET FUEL PUMP
- 16700ABW201S — Hero XPulse 200 UNIT ASSY FUEL PUMP
