17506TL1000Sym MAXSYM TL 508 E5 HEAT PROOF PANEL — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

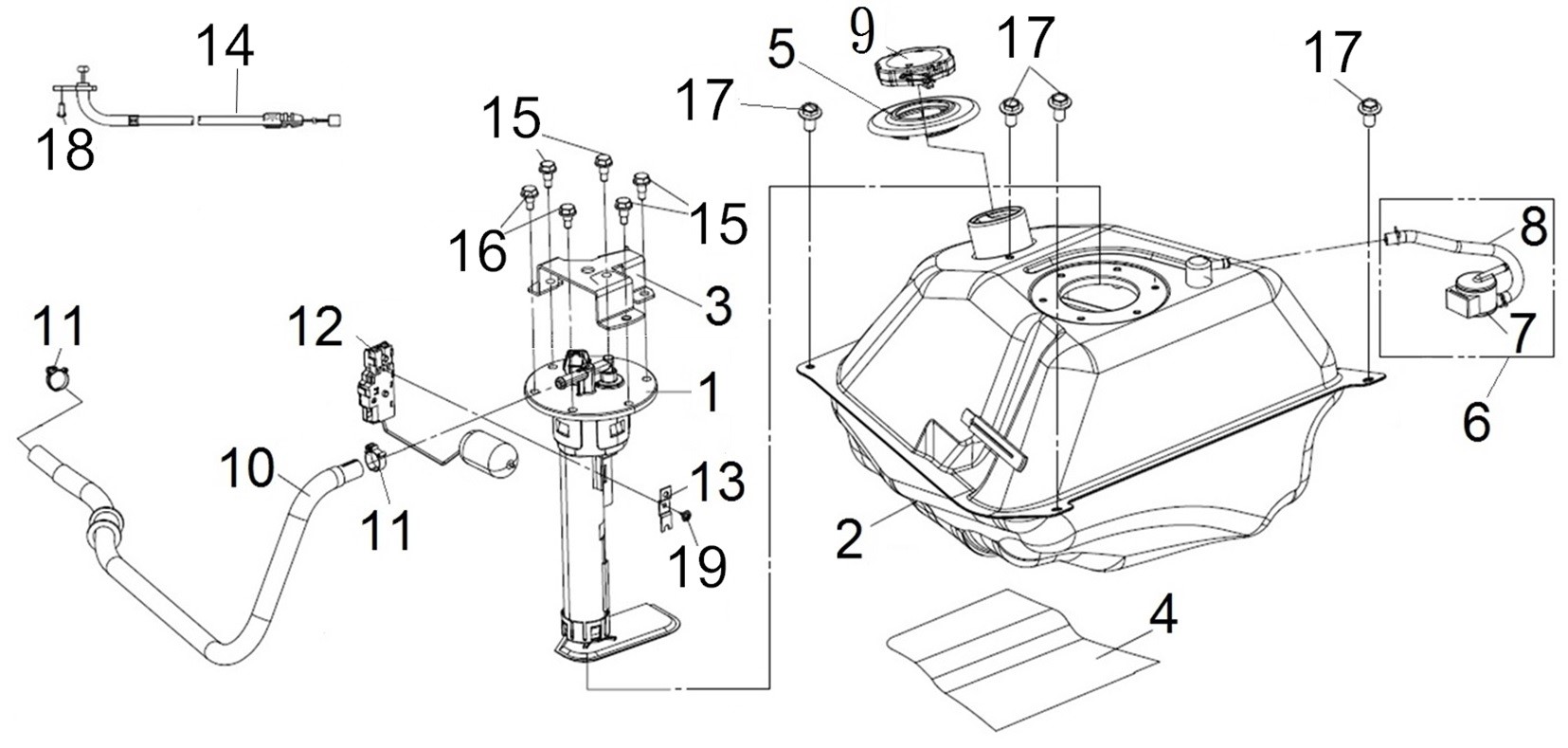

Location in exploded diagrams
Other parts on this diagram — FUEL TANK
- 17782TL1000 — Sym MAXSYM TL 508 E5 FUEL TUBE
- 17583TL1000 — Sym MAXSYM TL 508 E5 TANK-F.C.V. TUBE
- 17580TL1000 — Sym MAXSYM TL 508 E5 FUEL CUT VALVE ASSY
- 17512TL1000 — Sym MAXSYM TL 508 E5 PACKING FILLER NECK
- 17502TL1000 — Sym MAXSYM TL 508 E5 FUEL PUMP STAY
- 17500TL1000 — Sym MAXSYM TL 508 E5 FUEL TANK COMP
- 16712TL1000 — Sym MAXSYM TL 508 E5 O RING
- 16711TL1000 — Sym MAXSYM TL 508 E5 FUEL FILTER COMP
- 16700TL1000 — Sym MAXSYM TL 508 E5 FUEL PUMP ASSY
- 93903HGC000 — Sym MAXSYM TL 508 E5 TAPPING SCREW
- 938920501408 — Sym MAXSYM TL 508 E5 WASHER SCREW
- 938920501208 — Sym MAXSYM TL 508 E5 WASHER SCREW 5X12
- 934040601207 — Sym MAXSYM TL 508 E5 WASHER BOLT 6X12
- 90106LEA000 — Sym MAXSYM TL 508 E5 FUEL PUMP BOLT
- 90105HMC000 — Sym MAXSYM TL 508 E5 FUEL PUMP BOLT
- 77245TL1000 — Sym MAXSYM TL 508 E5 FUEL CAP LOCK CABLE
- 37804TL1000 — Sym MAXSYM TL 508 E5 FUEL UNIT STAY
- 37800TL1002 — Sym MAXSYM TL 508 E5 FUEL UNIT COMP
- 19505F81000 — Sym MAXSYM TL 508 E5 HOSE CLAMP
- 17620XH1010 — Sym MAXSYM TL 508 E5 Fuel filler cap COMP.
- 17620XH1020 — Sym MAXSYM TL 508 E5 Fuel filler cap COMP.
- 17581L32000 — Sym MAXSYM TL 508 E5 FUEL CUT VALVE(SENTEC)
