Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

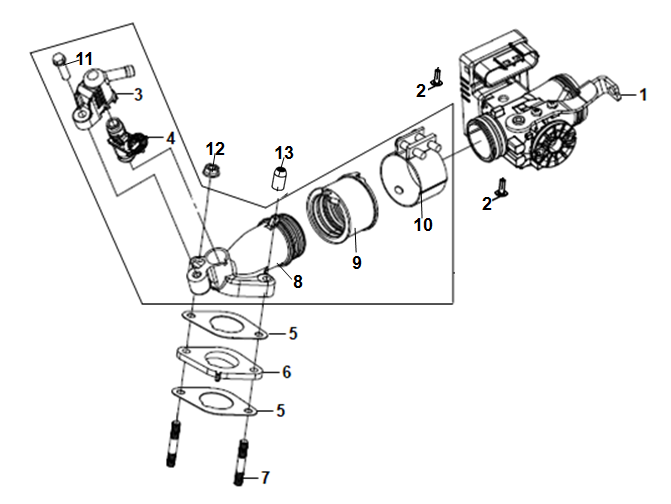

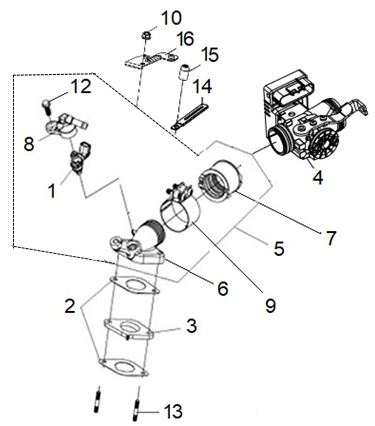

Location in exploded diagrams
Other parts on this diagram — ECU Set
- 90086MA1000 — Sym ADX 125 E5 SPECIAL NUT
- 9405006000 — Sym ADX 125 E5 FLANGE NUT 6MM
- 960010602202 — Sym ADX 125 E5 FLANGE BOLT SH 6X22
- 17111NH9000 — Sym ADX 125 E5 INLET PIPE RUBBER
- 17110ZGA000 — Sym ADX 125 E5 INLET PIPE ASS'Y
- 92900060280B — Sym ADX 125 E5 STUB BOLT 6X28
- 929000602800 — Sym ADX 125 E5 STUD BOLT 6*28
- 16211D21010 — Sym ADX 125 E5 Carb. Insulator
- 16201D21010 — Sym ADX 125 E5 Carb. Insulator gasket
- 06414NHA000 — Sym ADX 125 E5 FUEL INJECTOR
- 17120XN1000 — Sym ADX 125 E5 Fuel injector cap
- 935000400802DL — Sym ADX 125 E5 PAN SCREW 4x8MM
- 1640AZC1600 — Sym ADX 125 E5 Ecu set
