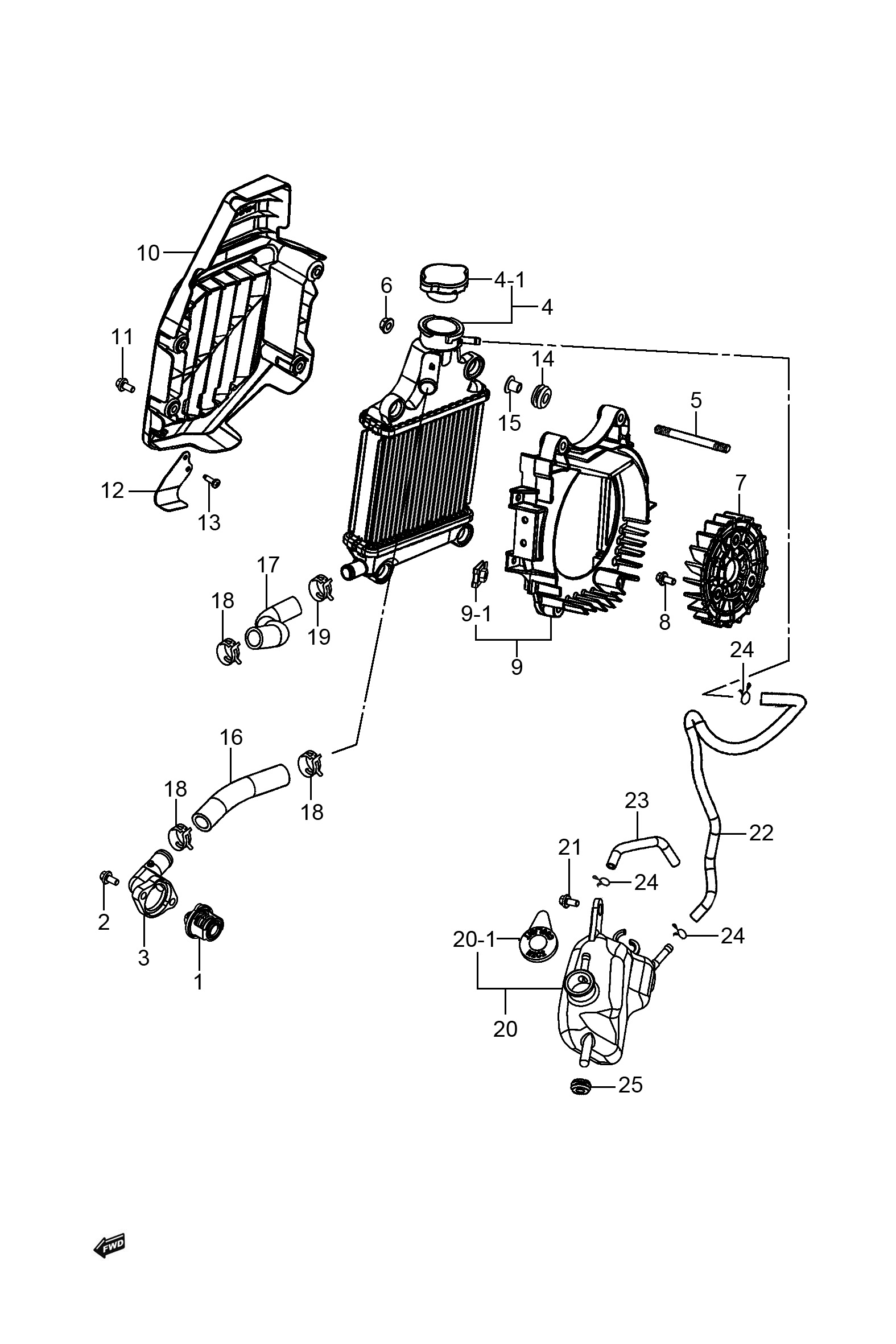

Location in exploded diagrams
Other parts on this diagram — 散热器组
- #1 17670H2C200H000 — 水恒温器总成
- #2 01547-0620A-000 — 六角法兰面螺栓
- #3 17663H2C201H000 — 恒温器盖
- #4 17071H2C202H000 — 散热器组合
- #4-1 17730-48H00-000 — 散热器盖组成
- #5 09108H07009H000 — 双头螺柱
- #6 09159H07001H000 — 法兰面螺母
- #7 17800H2C210H000 — 散热器风扇组成
- #8 01550-0620A-000 — 六角法兰面螺栓
- #9-1 35157H22501H000 — 螺母夹
- #10 17760H2C200H000 — 散热器护罩组成
- #11 01547-0616B-000 — 六角法兰面螺栓
- #12 17763H2C200H000 — 散热器护罩挡板
- #13 03541-0412A-000 — 十字槽球头自攻钉
- #14 09320H11003H000 — 减震垫
- #15 09180H08038H000 — 衬套
- #16 17856H2C200H000 — 散热器进水软管
- #17 17851H2C201H000 — 散热器出水软管
- #18 09401H21403H000 — 卡箍
- #19 09401H19403H000 — 卡箍
- #20 17910H2C210H000 — 副水箱总成
- #20-1 17932H2C210H000 — 副水箱盖
- #21 09116H06004H000 — 平垫螺栓组合
- #22 17981H2C200H000 — 副水箱进水软管
