Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (9)
- 2025–2026 Fugue 125 E5+ (2025 – 2026)
- 2021–2024 Jet 14 125 AC E5 (2021 – 2024)
- 2024 Jet 14 125 EVO E5 (2024 – 2024)
- 2021–2024 Jet 14 125 LC E5 (2021 – 2024)
- 2025–2026 Jet 14 50 E5+ (2025 – 2026)
- 2021–2024 Jet X 125 E5 (2021 – 2024)
- 2025 Jet X 125 E5+ (2025 – 0)
- 2025–2026 MMBCU 125 E5+ (2025 – 2026)
- 2021–2024 Symphony 125 E5 (2021 – 2024)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 264.74 | listing | motogbshop.co.uk |

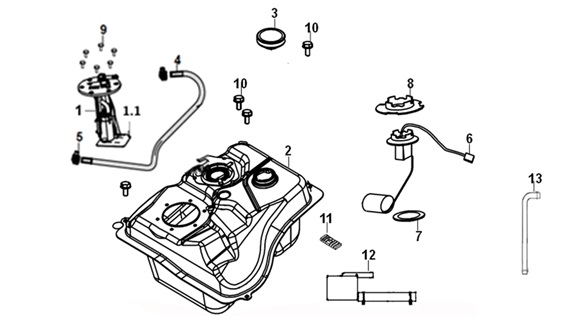

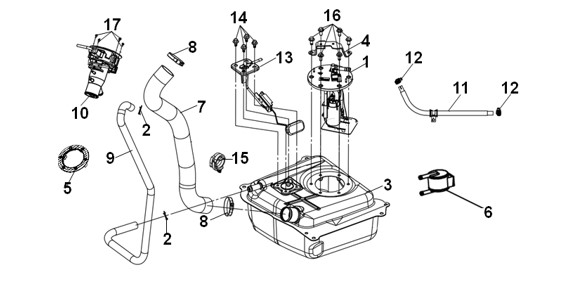

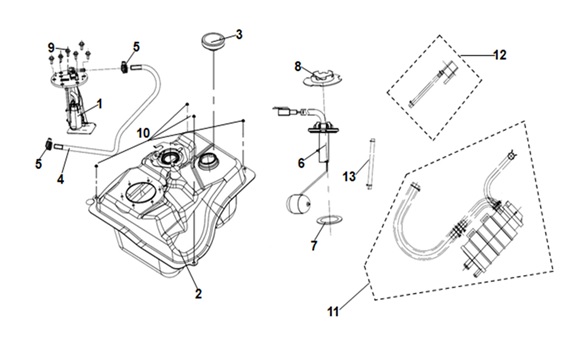

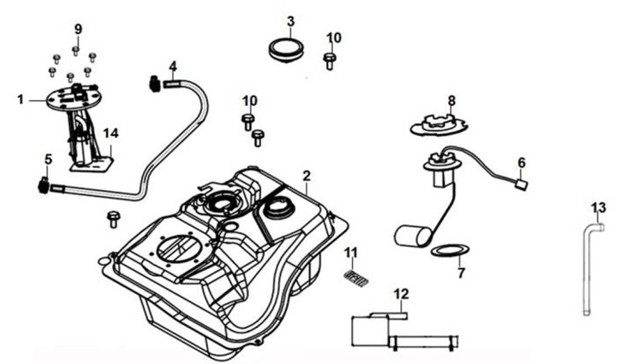

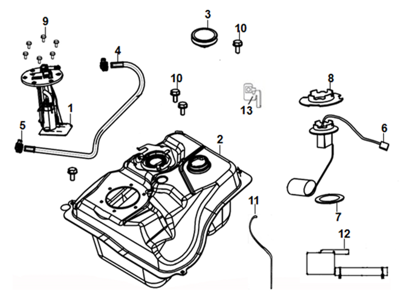

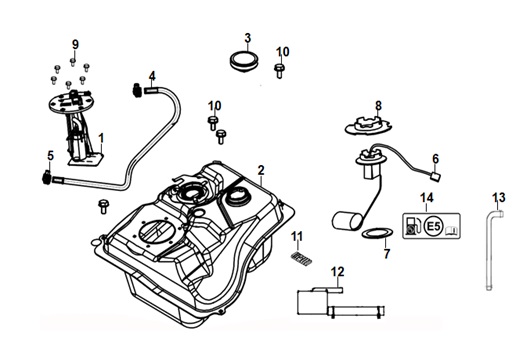

Location in exploded diagrams

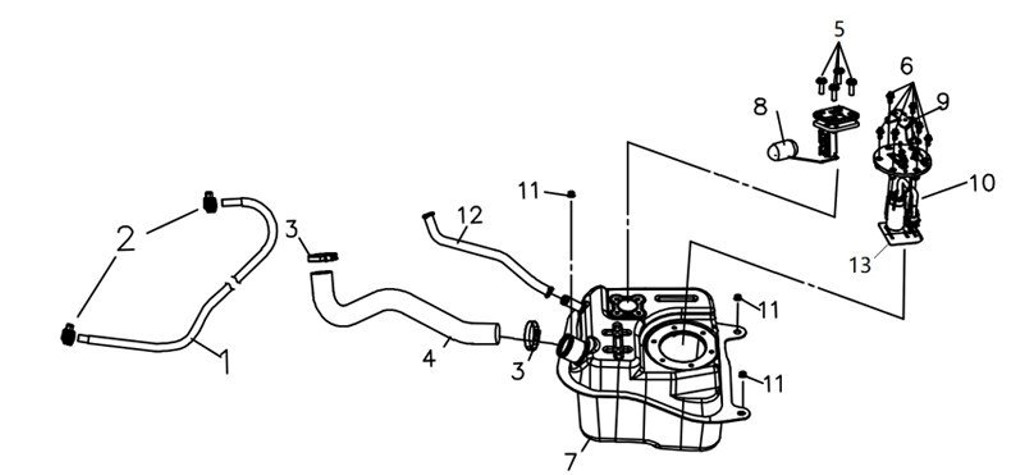

Other parts on this diagram — FUEL TANK ASSY FUEL PUMP COMP.
- 16711HJA000CN2 — Sym Fugue 125 E5+ FUEL FILLTER COMP.
- 17654XVA000 — Sym Fugue 125 E5+ Breather tube b
- 9405006080L1 — Sym Fugue 125 E5+ FLANGE NUT 6 mm
- 16700XMA003 — Sym Fugue 125 E5+ FUEL STRAINER ASS'Y
- 16700XMA000CN2 — Sym Fugue 125 E5+ FUEL PUMP COMP
- 17503XB1000 — Sym Fugue 125 E5+ FUEL TANK STAY
- 37800XVA000 — Sym Fugue 125 E5+ Fuel unit ASSY
- 17500VW3000 — Sym Fugue 125 E5+ FUEL TANK COMP.
- 90116Z5C000 — Sym Fugue 125 E5+ SPECIAL BOLT
- 9011ANHA000 — Sym Fugue 125 E5+ FLANGE SCREW M5X14 ASSY
- 17651VW3000 — Sym Fugue 125 E5+ FUEL NECK TUBE
- 17652TAA000 — Sym Fugue 125 E5+ FILLER TUBE CLIP
- 19505H5D000TW — Sym Fugue 125 E5+ HOSE CLAMP
- 19505H5D000 — Sym Fugue 125 E5+ HOSE CLAMP
- 17682XVA000 — Sym Fugue 125 E5+ Fuel tube
