Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

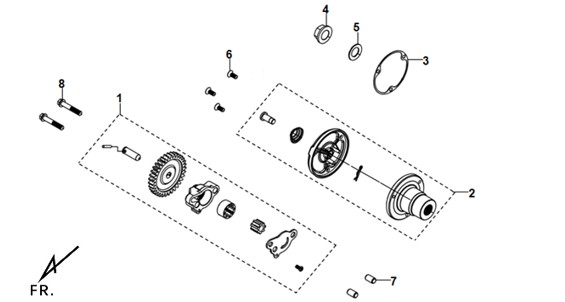

Location in exploded diagrams

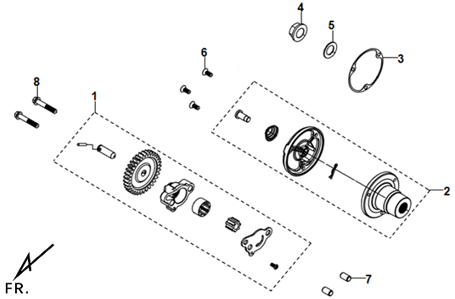

Other parts on this diagram — E06 - Oil System
- 957010603500 — Sym NH-R 125 E5+ FLANGE BOLT 6X35
- 9430108140 — Sym NH-R 125 E5+ DOWEL PIN 8*14
- 93700050120H — Sym NH-R 125 E5+ OVAL SCREW 5*12
- 90432A01000 — Sym NH-R 125 E5+ CLUTCH LOCK WASHER
- 90201KR8751M1 — Sym NH-R 125 E5+ FLANGE NUT 14MM
- 15459107000 — Sym NH-R 125 E5+ OIL FILTER ROTOR CAP GASKET
- 15459M2Q000 — Sym NH-R 125 E5+ OIL FILTER ROTOR GASKET
- 15100VF3000 — Sym NH-R 125 E5+ OIL PUMP ASSY.
