15100TL1000Sym MAXSYM TL 508 E5 OIL PUMP ASSY — Genuine Sym Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

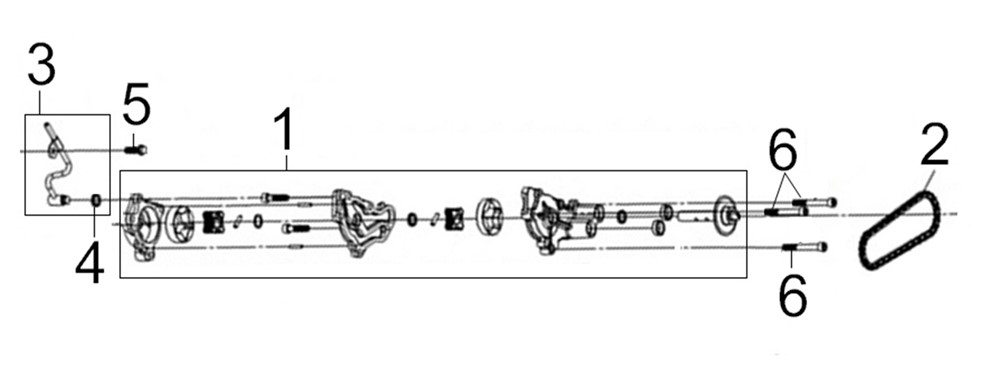

Location in exploded diagrams

Other parts on this diagram — OIL PUMP

• 1524ATL1000 — Sym MAXSYM TL 508 E5 OIL BREATHER PIPE ASSY
• 15141TL1000 — Sym MAXSYM TL 508 E5 OIL PUMP CHAIN 58L
• 15133TL1300 — Sym MAXSYM TL 508 E5 OIL PUMP DRIVEN SPROCKET
• 967000605007 — Sym MAXSYM TL 508 E5 SOCKET BOLT 6X50
• 960010601200 — Sym MAXSYM TL 508 E5 FLANGE BOLT SH 6X12
• 91308TL1000 — Sym MAXSYM TL 508 E5 O-RING 5.8X1.9
