Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

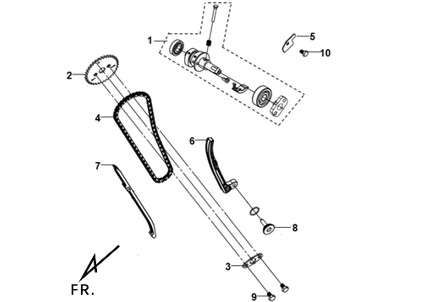

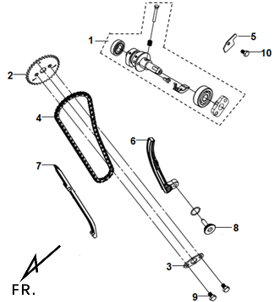

Other parts on this diagram — E03 - Camshaft & Chain
- 92000060100H — Sym NH-R 125 E5+ HEX BOLT 6X10
- 92101060100H — Sym NH-R 125 E5+ HEX BOLT 6*10
- 90083B12000 — Sym NH-R 125 E5+ KNOCK BOLT 6MM
- 14531M9Q000 — Sym NH-R 125 E5+ CAM CHAIN TENSIONER PIVOT
- 14610F8A000 — Sym NH-R 125 E5+ CAM CHAIN GUIDE
- 14510F8A000 — Sym NH-R 125 E5+ CAM CHAIN TENSIONER
- 14457NFG000 — Sym NH-R 125 E5+ CAM SHAFT SETTING PLATE
- 1C14401M92000M2 — Sym NH-R 125 E5+ Cam chain
- 14105F6A000 — Sym NH-R 125 E5+ CAM SPROCKET
- 14100NFG000 — Sym NH-R 125 E5+ CAM SHAFT COMP.
