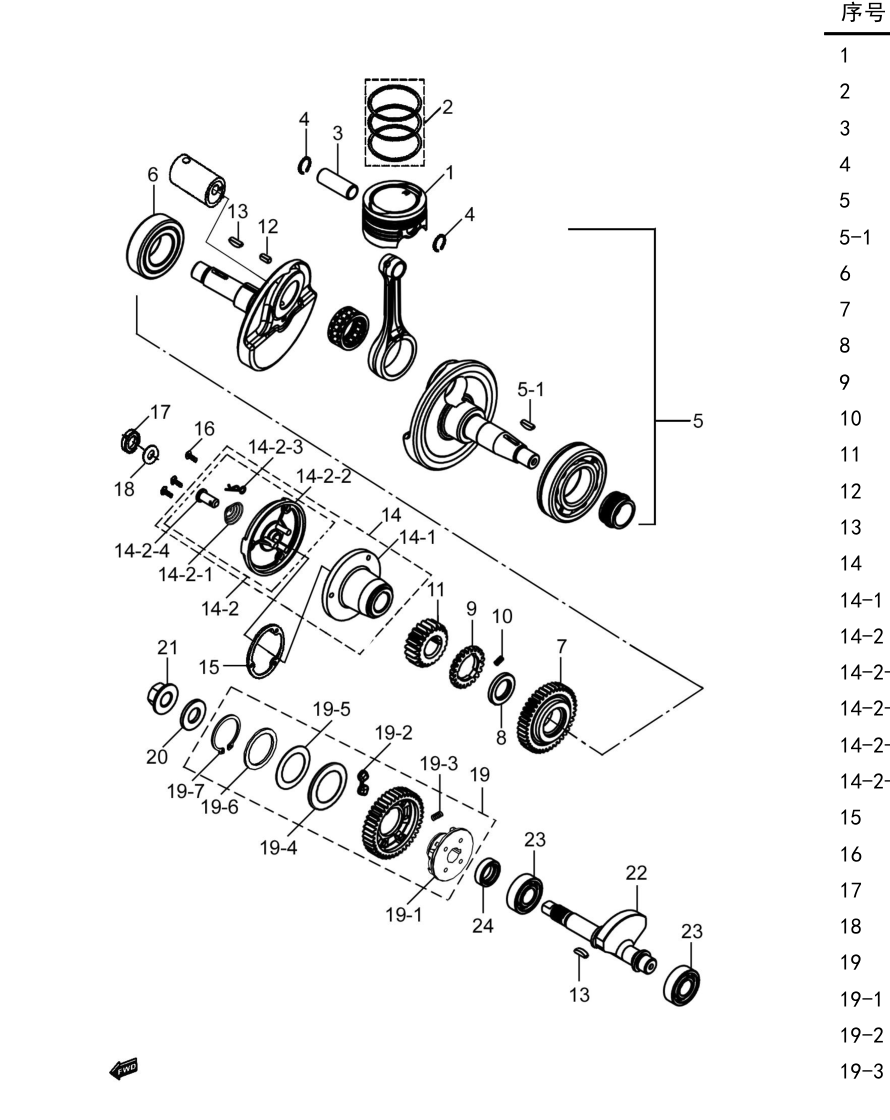

Location in exploded diagrams
Other parts on this diagram — 曲轴组
- #19-4 09181H28001H000 — 止推垫圈
- #19-5 12687H3J000H000 — 碟形弹簧
- #1 12111H3R000H000 — 活塞
- #2 12140H3R000H000 — 活塞环组合
- #3 12151H3R000H000 — 活塞销
- #4 09381H15001H000 — 活塞销挡圈
- #5 12200H3R001H000 — 曲轴总成
- #5-1 09420H04002H000 — 半圆键
- #6 09264H30001H000 — 滚柱轴承
- #7 12661H3J001H000 — 平衡轴驱动轮
- #8 21113H3J000H000 — 初级主动齿轮垫圈
- #9 21112H3R000H000 — 初级主动齿轮Ⅱ
- #10 21114H3J010H000 — 初级主动齿轮弹簧
- #11 21111H3R010H000 — 初级主动齿轮
- #12 09421H04001H000 — 平键
- #13 09420H04005H000 — 半圆键
- #14 16052H3D010H000 — 机油滤清器组合
- #14-1 16514H3D000H000 — 机油过滤器转子
- #14-2 16520H33040H000 — 机油滤清器盖总成
- #15 16561H33000H000 — 转子盖垫片
- #16 02122-0512A-000 — 十字槽沉头小螺钉
- #17 21346H33000H000 — 锁紧螺母
- #18 09160H16004H000 — 金属平垫圈
- #19 12670H3J000H000 — 平衡轴从动齿轮组成
