Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

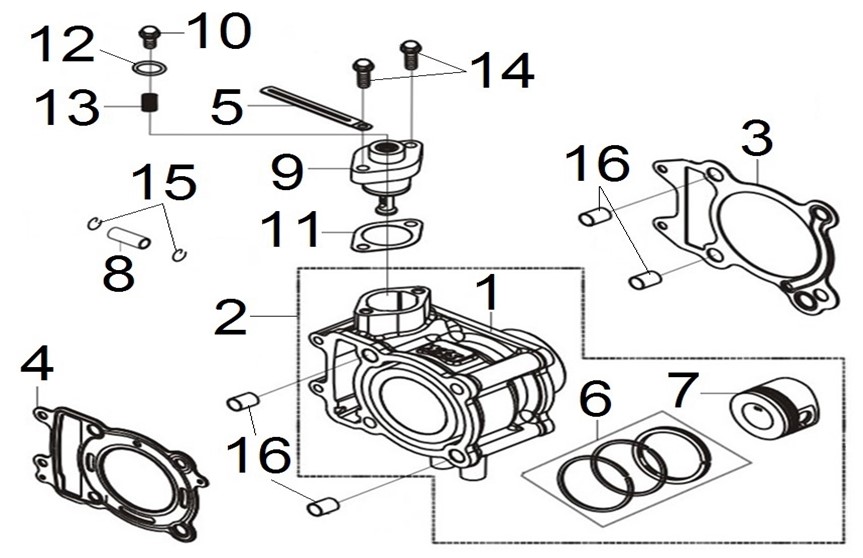

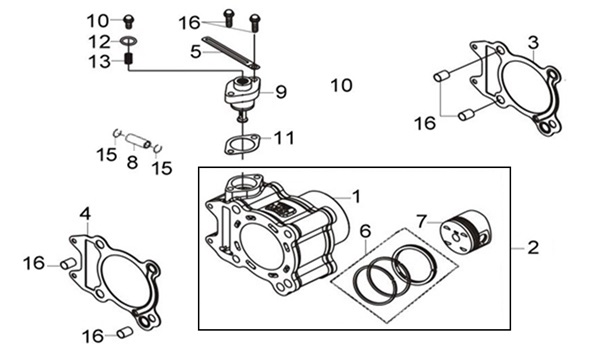

Location in exploded diagrams
Other parts on this diagram — CYLINDER
- 9430112200 — Sym CRUiSYM 300 E5 DOWEL PIN 12*20
- 90601HMA000 — Sym CRUiSYM 300 E5 PISTON PIN CLIP
- 90001RFS000 — Sym CRUiSYM 300 E5 FLANGE SHF BOLT 6X22
- 14525H6T000 — Sym CRUiSYM 300 E5 ADJUSTER SPRING
- 14524H6T000 — Sym CRUiSYM 300 E5 OIL-RING
- 14523GY6900 — Sym CRUiSYM 300 E5 TENSIONER LIFTER GASKET
- 14523M9Q002 — Sym CRUiSYM 300 E5 TENSIONER LIFTER GASKET
- 14522H6T000 — Sym CRUiSYM 300 E5 TENSIONER ADJUSTER BOLT
- 14520H6T000 — Sym CRUiSYM 300 E5 TENSIONER LIFTER
- 13101BCF010 — Sym CRUiSYM 300 E5 PISTON
- 13010L9L000 — Sym CRUiSYM 300 E5 PISTON RING SET
- 12342G02000 — Sym CRUiSYM 300 E5 CLAMP
- 12251RFA000 — Sym CRUiSYM 300 E5 CYLINDER HEAD GASKET
- 12191RFA001 — Sym CRUiSYM 300 E5 CYLINDER GASKET
- 12100L9L000A — Sym CRUiSYM 300 E5 CYLINDER SET
- 12100L9L000 — Sym CRUiSYM 300 E5 CYLINDR ASSY
