Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 21.52 | listing | motogbshop.co.uk |
Location in exploded diagrams

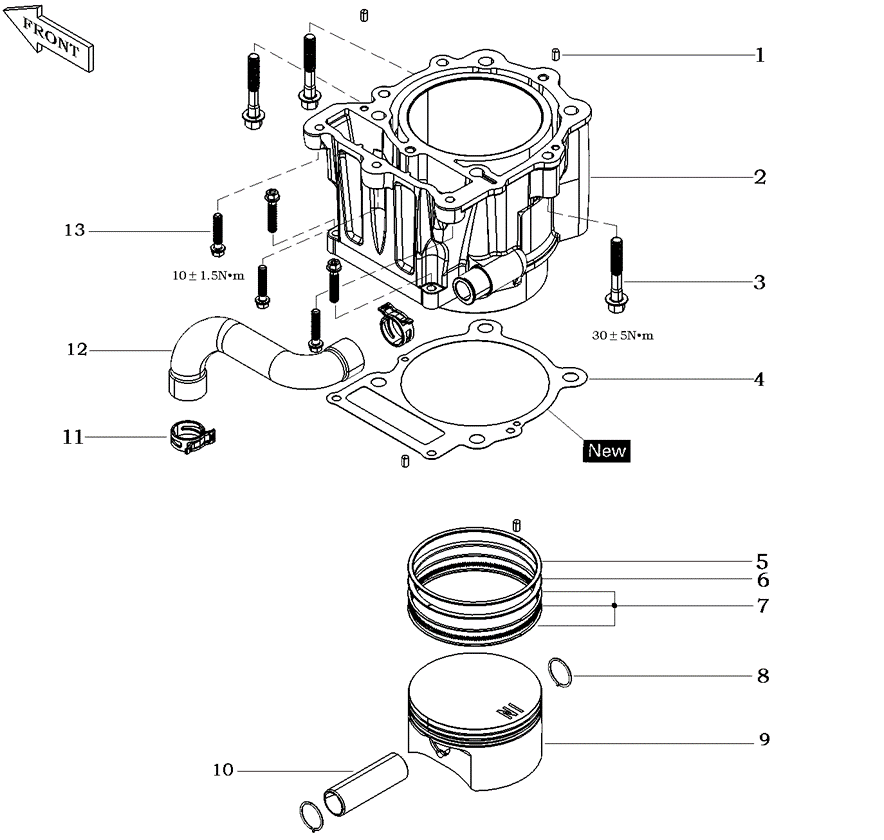

Other parts on this diagram — Cylinder & Piston Set
- 130030014-0001 — Voge 650 DS PISTON COMP.
- 120050129-0001 — Voge 650 DS GASKET,CYLINDER
- 381420005-0001 — Voge 650 DS BOLT,LOBULAR SOCKET COUNTERSUNK HEAD
- 380760003-0001 — Voge 650 DS TUBE,WATER
- 380950070-0001 — Voge 650 DS CLAMP,TUBE
- 130030218-0001 — Voge 650 DS PISTON COMP.
- 380560032-0001 — Voge 650 DS CHECK RING,STEEL CABLE BAFFLE
- 130110010-0001 — Voge 650 DS OIL RING COMP.
- 130090012-0001 — Voge 650 DS 2ND PISTON RING
- 130080010-0001 — Voge 650 DS 1ST PISTON RING
- 120050010-0001 — Voge 650 DS GASKET,CYLINDER
- 380140768-0001 — Voge 650 DS BOLT,HEXAGON FLANGE
- 120020458-0001 — Voge 650 DS BODY SET,CYLINDER
- 380600025-0001 — Voge 650 DS PIN,DOWEL
