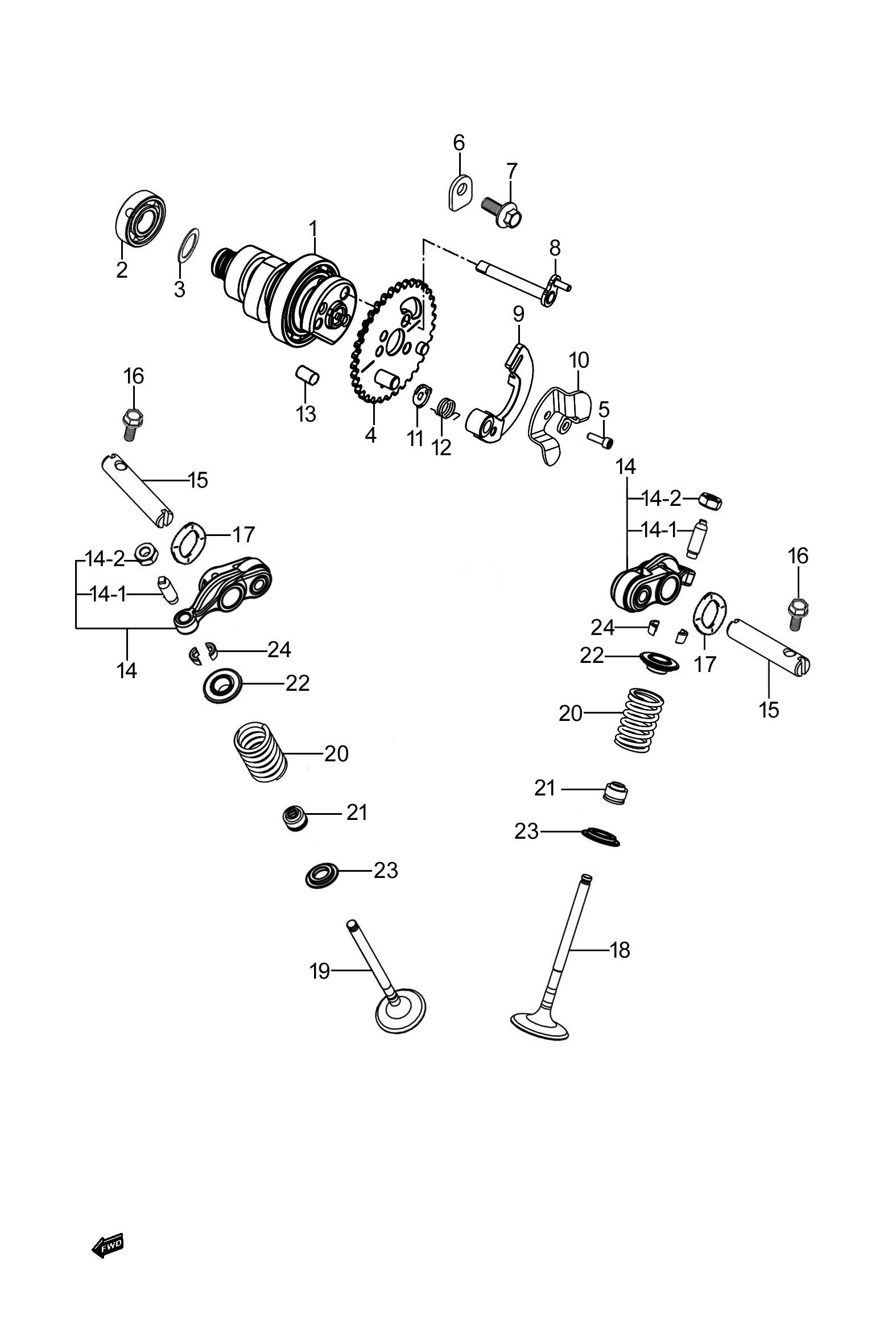

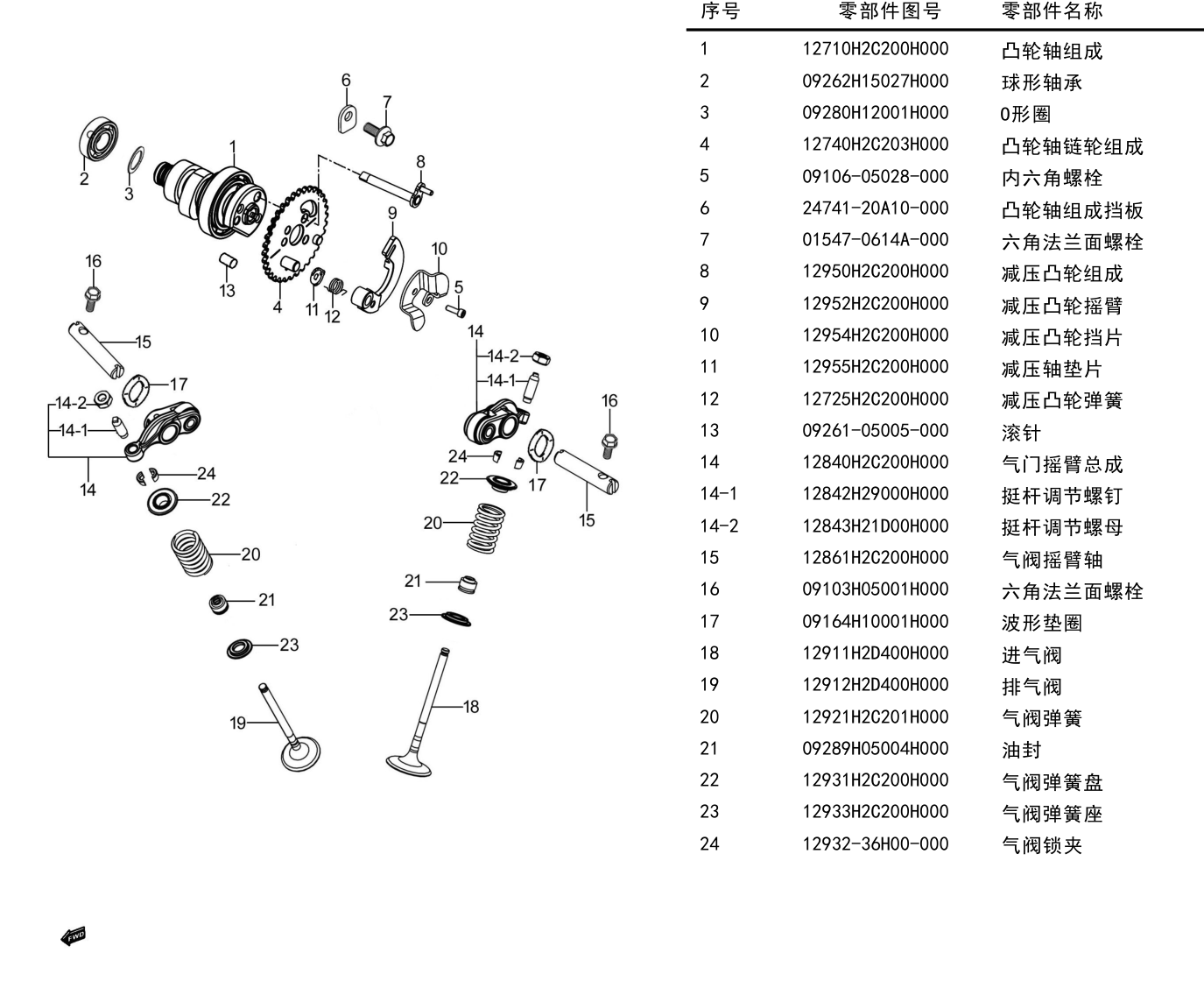

Location in exploded diagrams
Other parts on this diagram — 凸轮摇臂、气门组
- #1 12710H2C200H000 — 凸轮轴组成
- #2 09262H15027H000 — 球形轴承
- #3 09280H12001H000 — O形圈
- #4 12740H2C202H000 — 凸轮轴链轮组成
- #5 09106-05028-000 — 内六角螺栓
- #6 24741-20A10-000 — 凸轮轴组成挡板
- #7 01547-0614A-000 — 六角法兰面螺栓
- #8 12950H2C200H000 — 减压凸轮组成
- #9 12952H2C200H000 — 减压凸轮摇臂
- #10 12954H2C200H000 — 减压凸轮挡片
- #12 12725H2C200H000 — 减压凸轮弹簧
- #13 09261-05005-000 — 滚针
- #14 12840H2C200H000 — 气门摇臂总成
- #14-1 12842H29000H000 — 挺杆调节螺钉
- #14-2 12843H21D00H000 — 挺杆调节螺母
- #15 12861H2C200H000 — 气阀摇臂轴
- #16 09103H05001H000 — 六角法兰面螺栓
- #17 09164H10001H000 — 波形垫圈
- #18 12911H2D400H000 — 进气阀
- #19 12912H2D400H000 — 排气阀
- #20 12921H2C200H000 — 气阀弹簧
- #21 09289H05004H000 — 油封
- #22 12931H2C200H000 — 气阀弹簧盘
- #23 12933H2C200H000 — 气阀弹簧座
