Verified fitment — 12 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

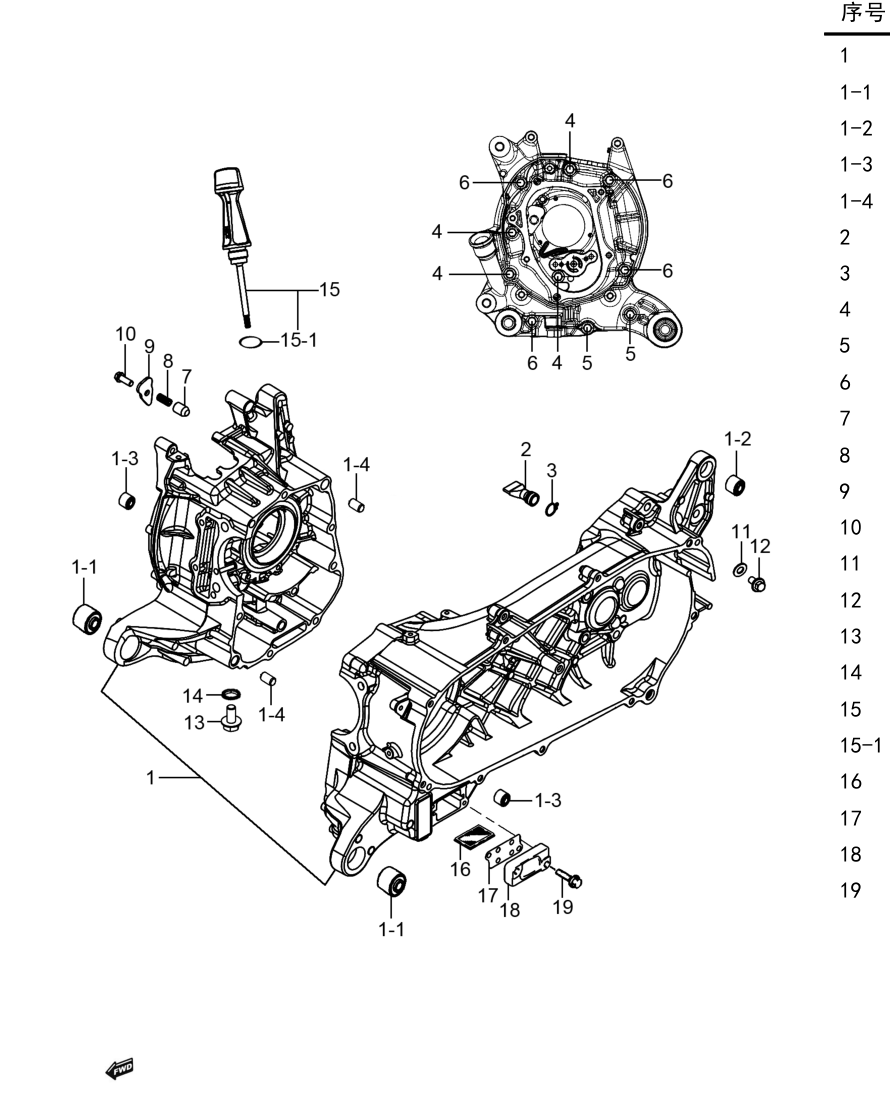

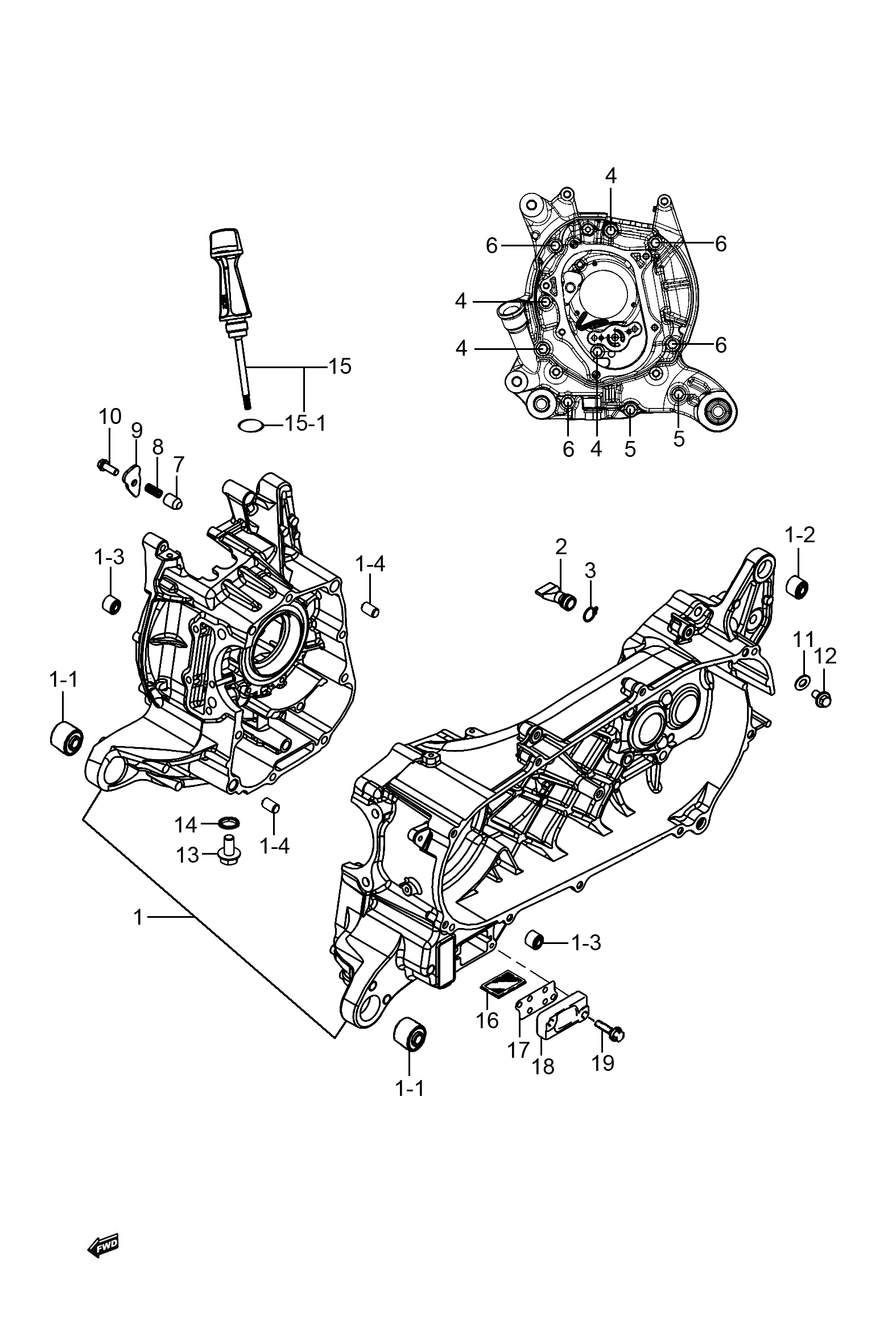

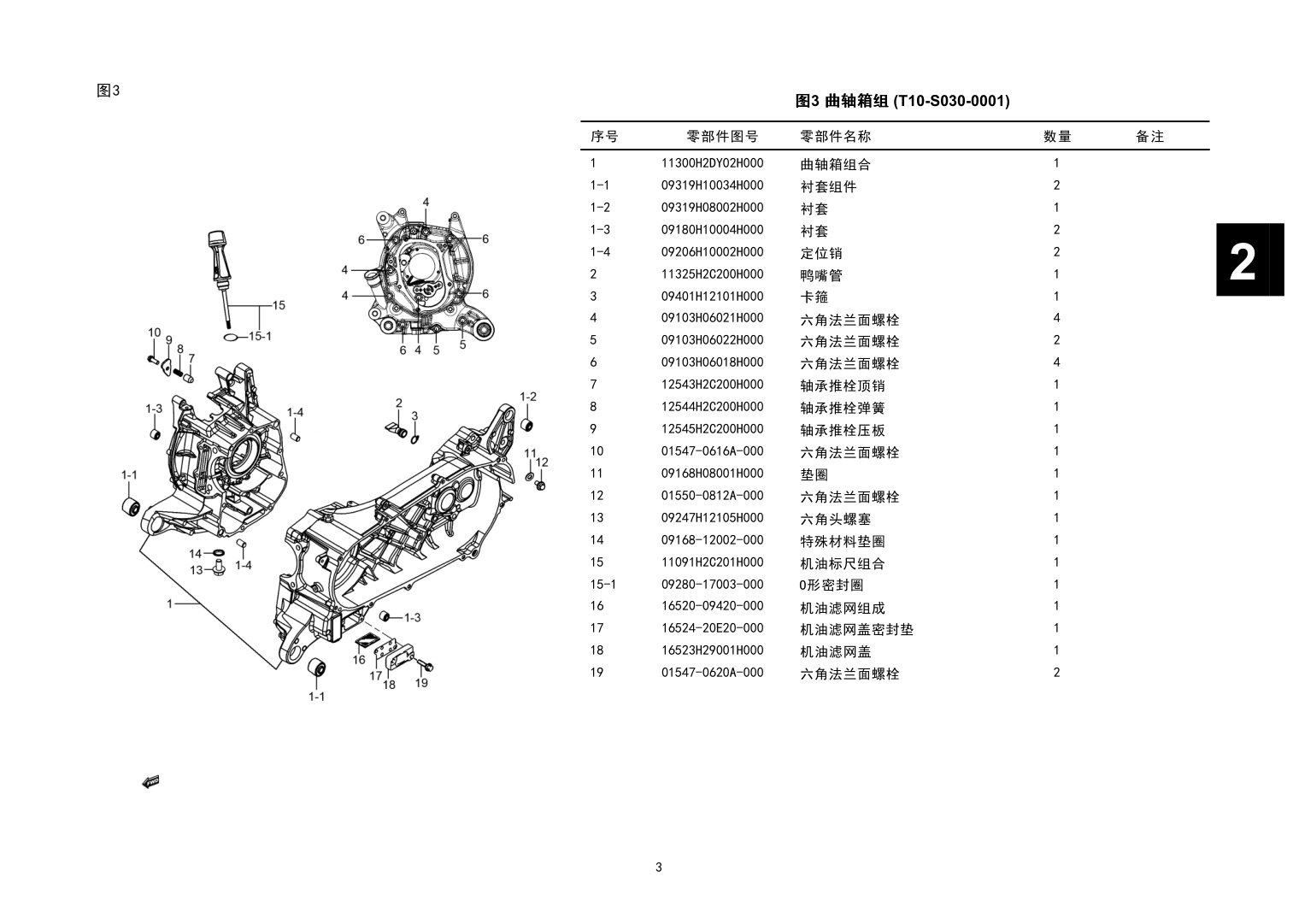

Other parts on this diagram — 曲轴箱组
- #1 11300H2DY02H000 — 曲轴箱组合
- #1-1 09319H10034H000 — 衬套组件
- #1-2 09319H08002H000 — 衬套
- #1-3 09180H10004H000 — 衬套
- #1-4 09206H10002H000 — 定位销
- #2 11325H2C200H000 — 鸭嘴管
- #3 09401H12101H000 — 卡箍
- #4 09103H06021H000 — 六角法兰面螺栓
- #5 09103H06022H000 — 六角法兰面螺栓
- #6 09103H06018H000 — 六角法兰面螺栓
- #7 12543H2C200H000 — 轴承推栓顶销
- #9 12545H2C200H000 — 轴承推栓压板
- #17 16524-20E20-000 — 机油滤网盖密封垫
- #15-1 09280-17003-000 — O形密封圈
- #16 16520-09420-000 — 机油滤网组成
- #18 16523H29001H000 — 机油滤网盖
- #19 01547-0620A-000 — 六角法兰面螺栓
- #10 01547-0616A-000 — 六角法兰面螺栓
- #11 09168H08001H000 — 垫圈
- #12 01550-0812A-000 — 六角法兰面螺栓
- #13 09247H12105H000 — 六角头螺塞
- #14 09168-12002-000 — 特殊材料垫圈
- #15 11091H2C201H000 — 机油标尺组合
