Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

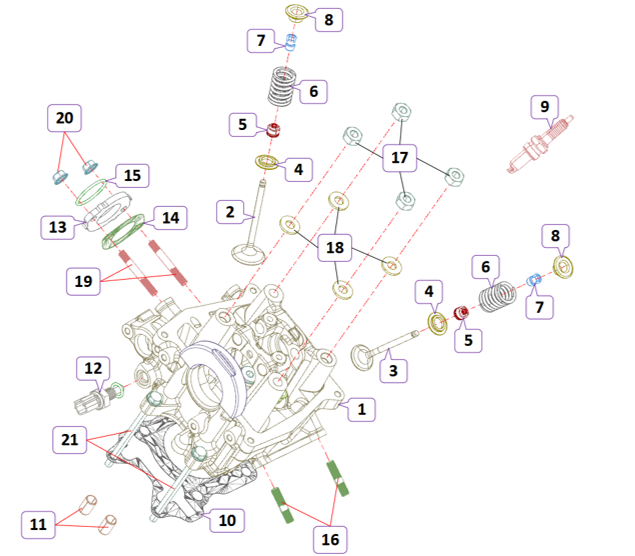

Location in exploded diagrams
Other parts on this diagram — E02 - Cylinder Head
- 96010-06095-00 — MGB AMAX 125 Flanged big head screw
- 94051-06006-00 — MGB AMAX 125 Nut M6
- 96003-06048-00 — MGB AMAX 125 Double end studs M6*53
- 90411-08018-20 — MGB AMAX 125 Steel gasket
- 94050-08008-00 — MGB AMAX 125 Nut M8
- 96003-07032-00 — MGB AMAX 125 Stud
- 16212-PC3A-9000 — MGB AMAX 125 Heat insulation board paper pad
- 91300-00290-20 — MGB AMAX 125 O-ring of heat insulation board
- 16211-PC3A-9000 — MGB AMAX 125 thermal baffle
- 12410-PC3A-9001 — MGB AMAX 125 Water temperature sensor
- 94301-10016-00 — MGB AMAX 125 Bowel pin 10*16
- 12251-PC3A-9000 — MGB AMAX 125 Cylinder gasket
- 120010-PC1-D900 — MGB AMAX 125 SPARK PLUG
- 30001-PC3A-9000 — MGB AMAX 125 Spark plug
- 14771-PC3A-9000 — MGB AMAX 125 Upper retainer
- 14781-X3CA-9000 — MGB AMAX 125 Valve collet
- 1475A-PC3A-9000 — MGB AMAX 125 Valve spring assembly
- 91201-GY6A-9000-PY1 — MGB AMAX 125 Valve seals
- 14773-PC3A-9000 — MGB AMAX 125 Lower retainer
- 14711-PC3A-9000 — MGB AMAX 125 Exhaust valve
- 14721-PC3A-9000 — MGB AMAX 125 inlet valve
Same number, other brands
The number 12200-PC3A-90DP also appears in other manufacturers' catalogues: unknown brand — MGB SST 125 Cylinder head
