Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

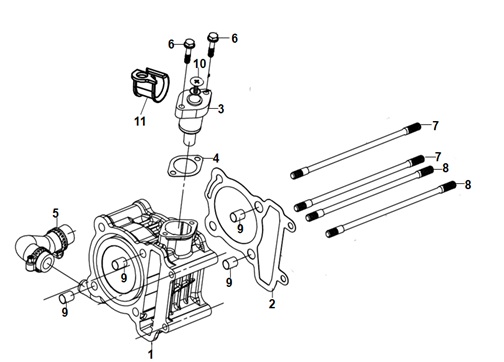

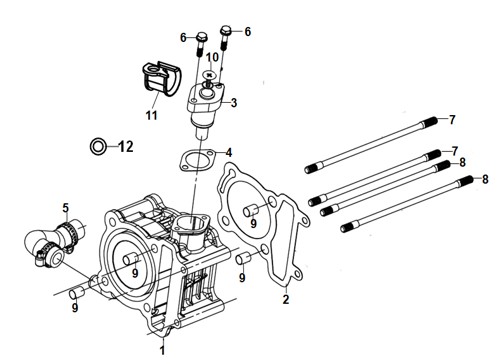

Location in exploded diagrams
Other parts on this diagram — Cylinder Assy
- 91306GY6A00 — Sym Jet 14 125 LC E5 O-RING 1.78*9.5
- 11383GY6A00 — Sym Jet 14 125 LC E5 AIR/C DRAIN TUBE CLAMPER
- 90005KW1900 — Sym Jet 14 125 LC E5 PAN SCREW 6*6
- 90703HC4000 — Sym Jet 14 125 LC E5 DOWEL PIN 10*14
- 9430110140 — Sym Jet 14 125 LC E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym Jet 14 125 LC E5 DOWEL PIN 10*14
- 90032A6A000 — Sym Jet 14 125 LC E5 CYLINDER STUD BOLT B
- 90031M92000 — Sym Jet 14 125 LC E5 CYLINDER STUD BOLT A
- 90001M9Q000 — Sym Jet 14 125 LC E5 FLANGE BOLT 6*22
- 1950AMA1000 — Sym Jet 14 125 LC E5 WATER HOSE A ASS'Y
- 14523F6C000 — Sym Jet 14 125 LC E5 TENSIONER LIFTER GASKET
- 14523GY6900KD — Sym Jet 14 125 LC E5 TENSIONER LIFTER GASKET
- 14523M9Q000 — Sym Jet 14 125 LC E5 TENSIONER LIFTER GASKET
- 14523Z8G000 — Sym Jet 14 125 LC E5 TENSIONER LIFTER GASKET
- 14520M9Q000 — Sym Jet 14 125 LC E5 TENSIONER LIFTER ASSY
- 14520GY6A00 — Sym Jet 14 125 LC E5 Tensioner lifter ASSY.
- 14520GY6901 — Sym Jet 14 125 LC E5 TENSIONER LIFTER ASSY
- 12191MA1000 — Sym Jet 14 125 LC E5 CYL. GASKET
- 12191MA2000 — Sym Jet 14 125 LC E5 CYL. GASKET
