Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

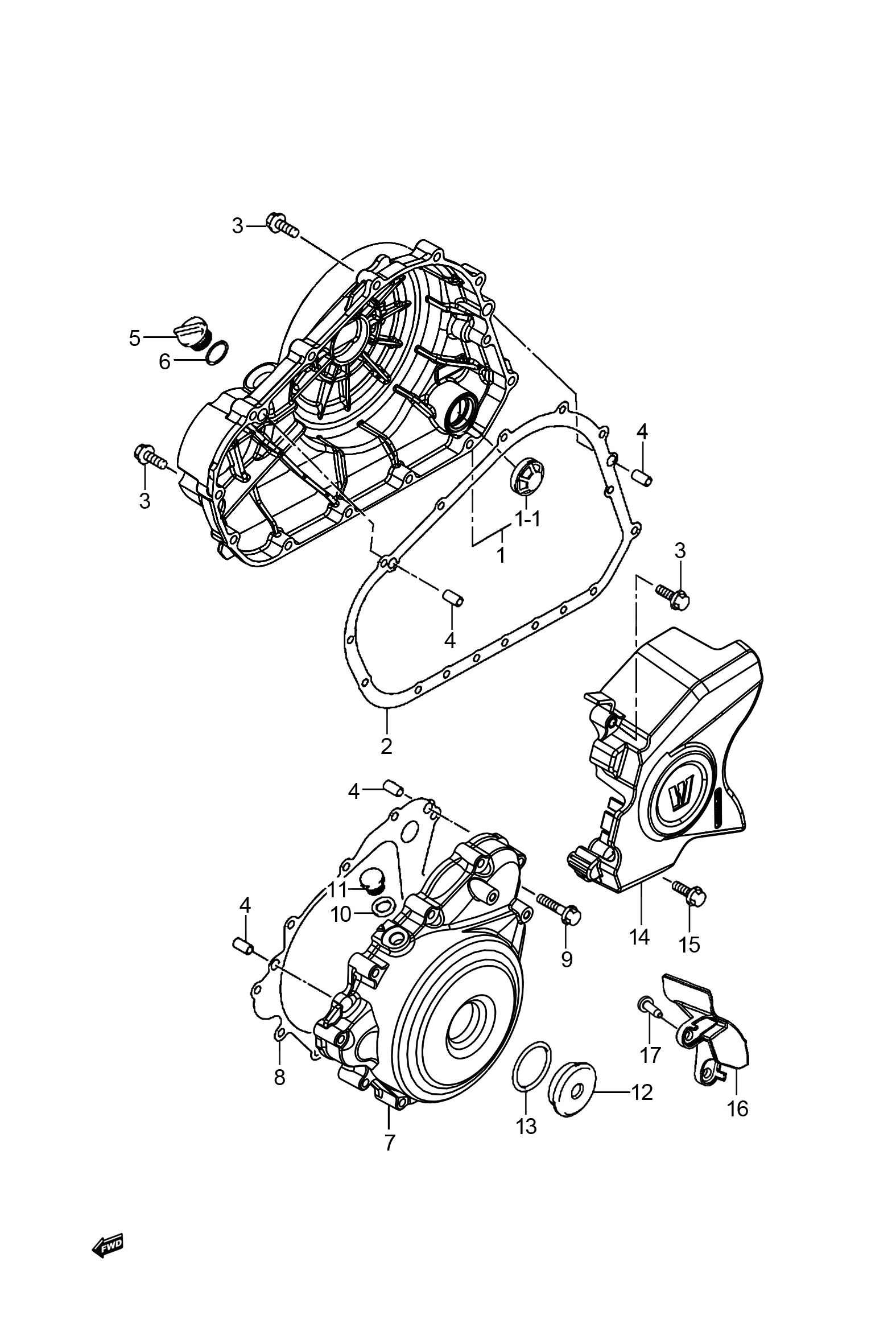

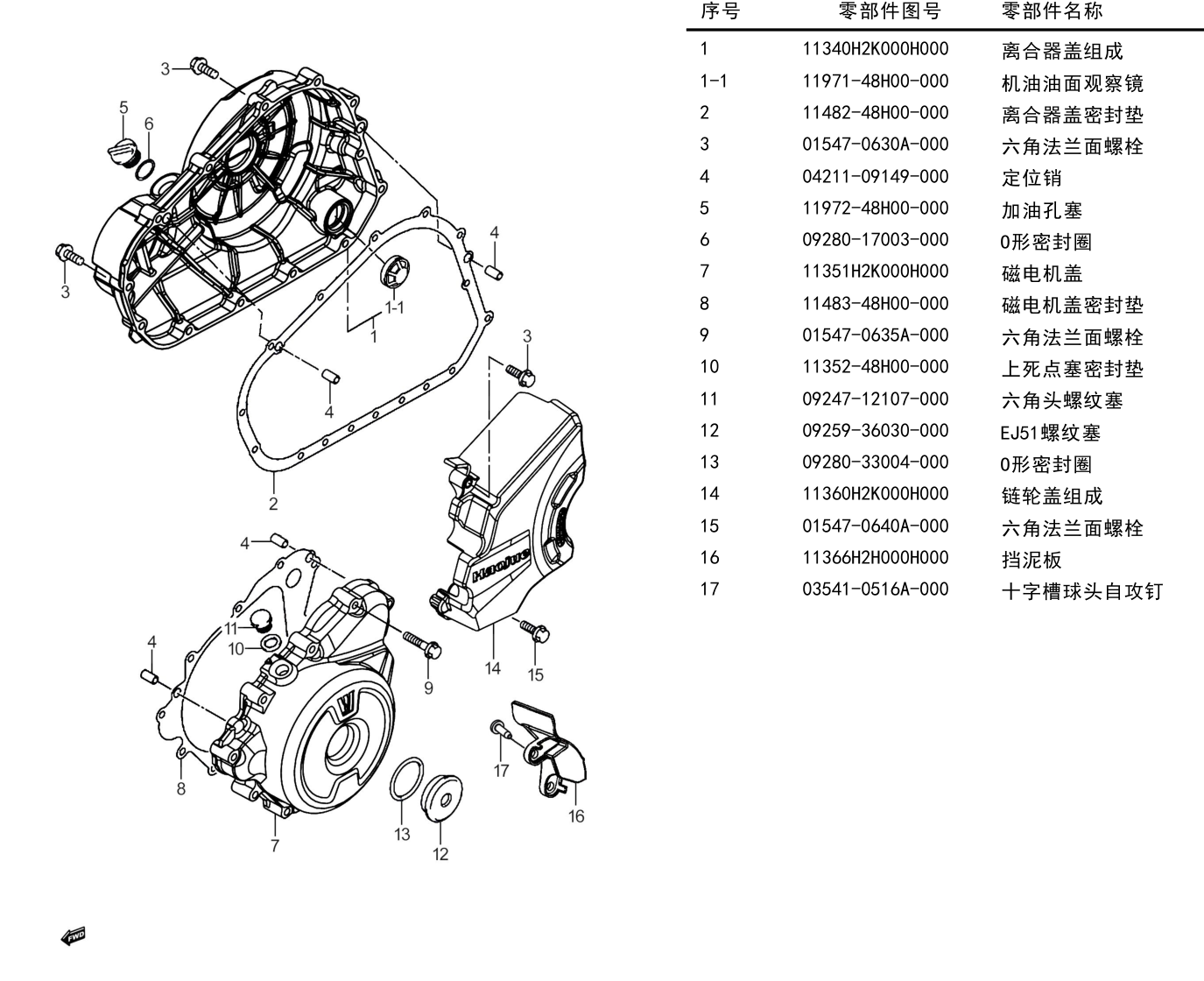

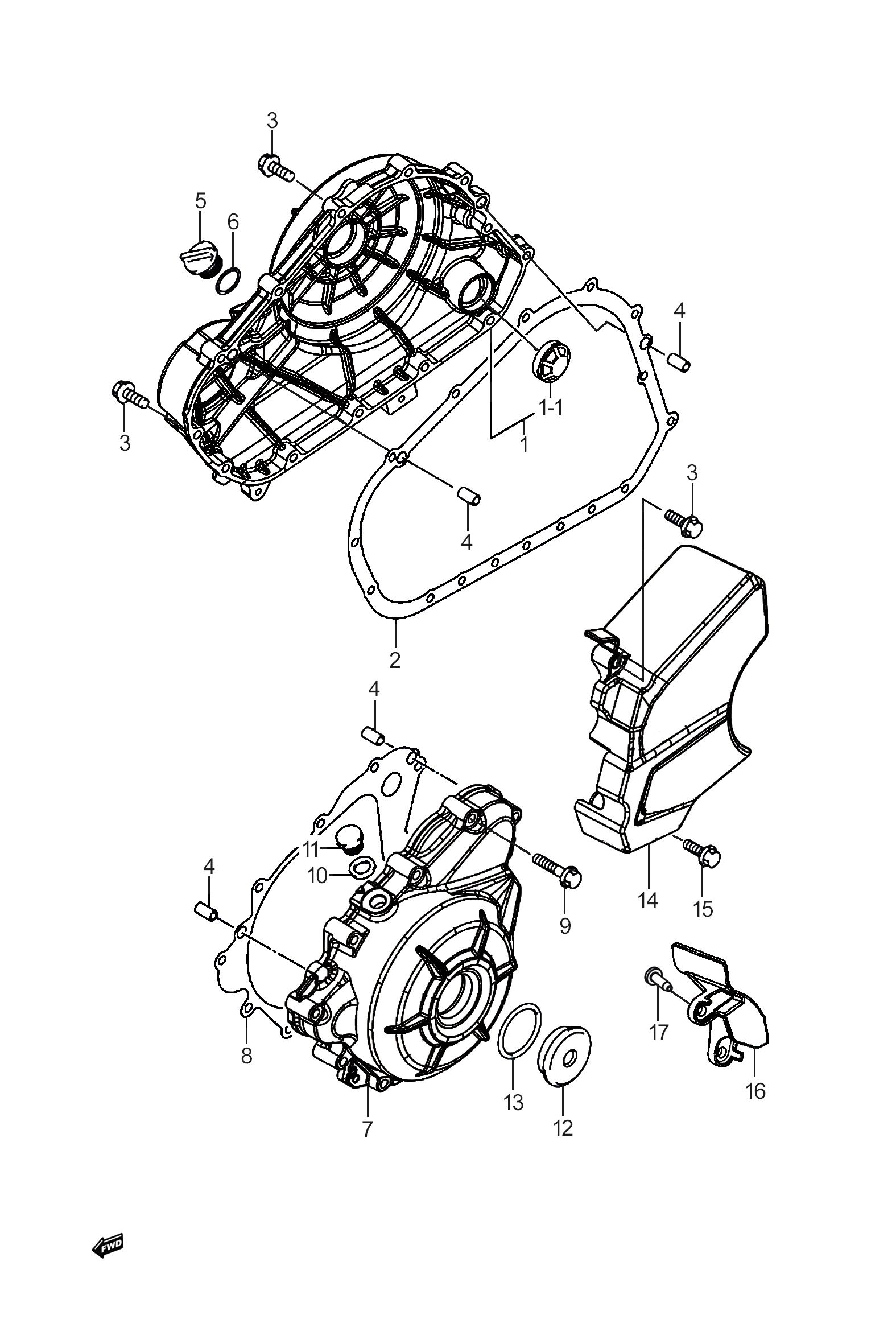

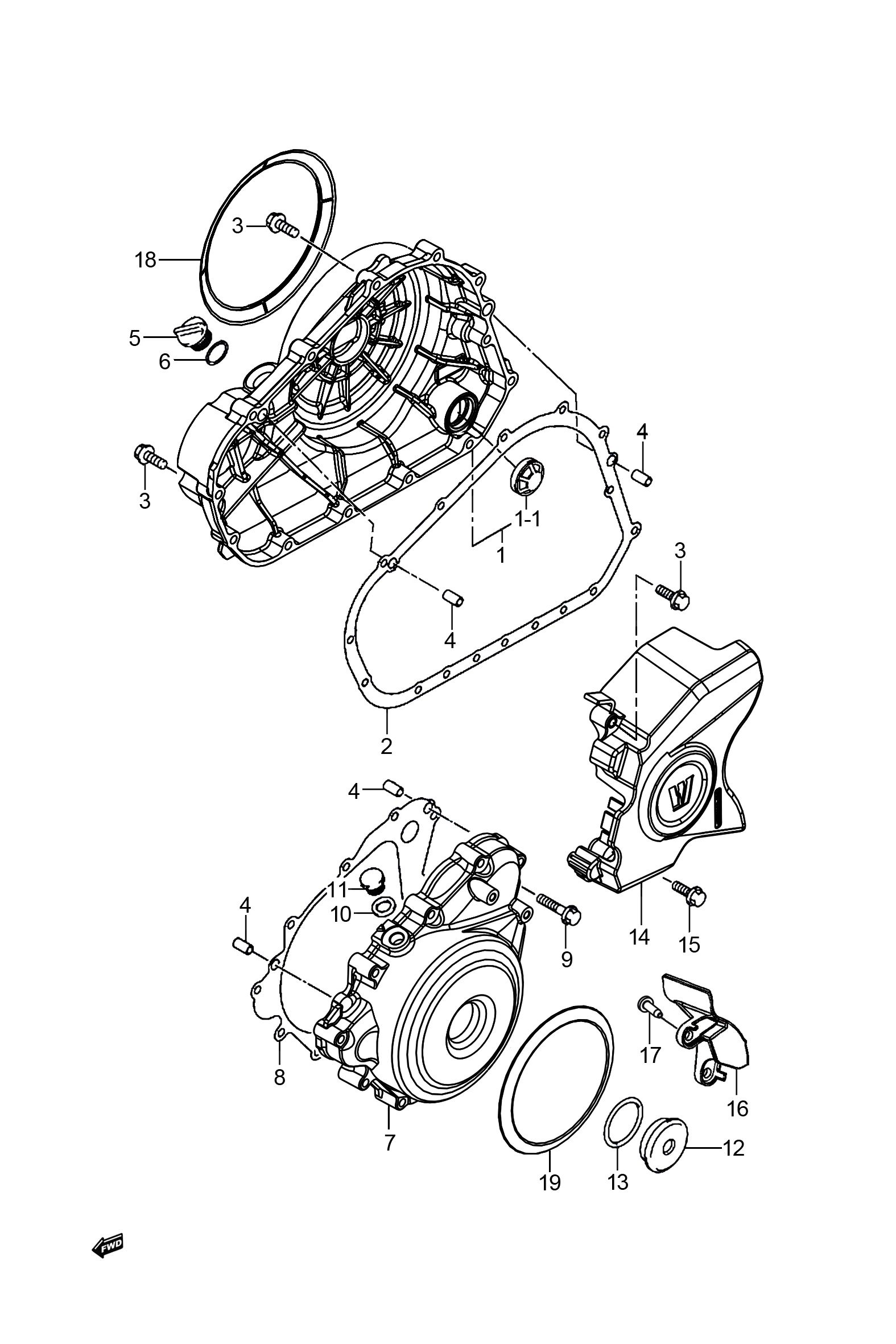

Location in exploded diagrams
Other parts on this diagram — 曲轴箱盖组
- #1 11340H3A001H000 — 离合器盖组成
- #7 11351H3A001H000 — 磁电机盖
- #8 11483-48H00-000 — 磁电机盖密封垫
- #9 01547-0635A-000 — 六角法兰面螺栓
- #10 11352-48H00-000 — 上死点塞密封垫
- #11 09247-12107-000 — 六角头螺纹塞
- #12 09259-36030-000 — EJ51螺纹塞
- #13 09280-33004-000 — O形密封圈
- #14 11360H3A001H000 — 链轮盖组成
- #15 01547-0640A-000 — 六角法兰面螺栓
- #17 03541-0516A-000 — 十字槽球头自攻钉
- #1-1 11971-48H00-000 — 机油油面观察镜
- #2 11482-48H00-000 — 离合器盖密封垫
- #3 01547-0630A-000 — 六角法兰面螺栓
- #4 04211-09149-000 — 定位销
- #5 11972-48H00-000 — 加油孔塞
- #6 09280-17003-000 — O形密封圈
