Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

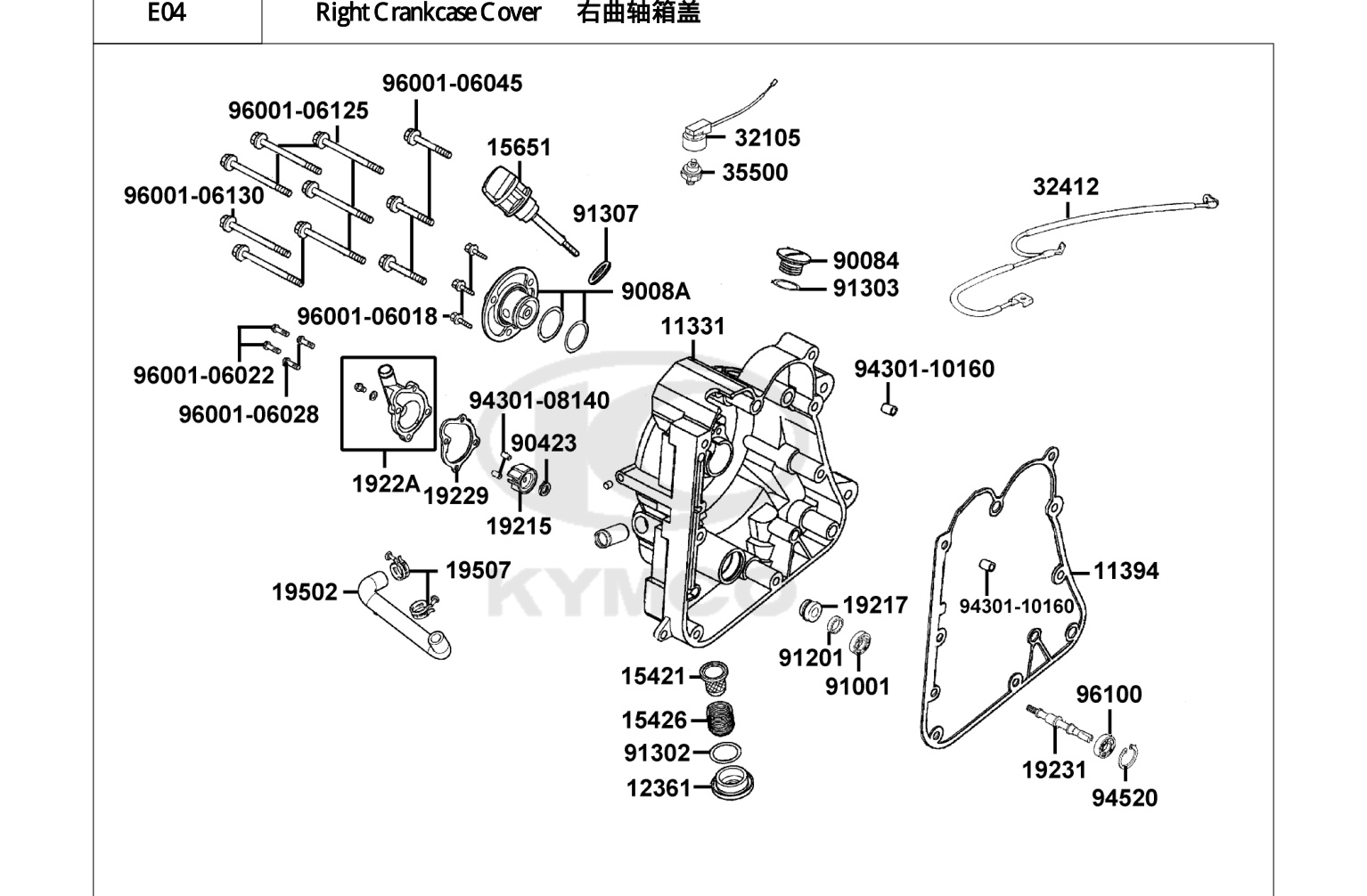

Location in exploded diagrams
Other parts on this diagram — 右曲轴箱盖
- #91303 91303-3G77-C00 — O-RING 13.8*2.5
- #12361 12361-LHD1-C00 — "HOLE CAP. TAPPET ADJUSTING"
- #15421 15421-1G07-C00 — SCREEN OIL FILTER
- #15651 15651-KEBE-C00 — GAUGE OIL LEVEL
- #19215 19215-KHE7-C00 — IMPELLER WATER PUMP
- #19229 19229-LBA7-C00 — GASKET WATER OUMP
- #1922A 1922A-KHE7-C00 — COVER ASSY WATER PUMP
- #19231 19231-KKJ9-C00 — SHAFT WATER PUMP
- #19502 19502-KHE7-C00 — HOSE B WATER
- #19507 19507-ABD6-C00 — "CLAMP. D28"
- #32105 32105-LLJ3-C00 — SUB HARNESS
- #32412 32412-AGE7-C00 — CABLE EARTH
- #35500 35500-KED9-900 — SW ASSY OIL PRESSURE
- #90084 90084-KKF9-901 — CAP ACG
- #9008A 9008A-KHE7-C00 — CAP ASSY R COVER
- #90423 90423-KKJ9-C00 — WASHER 7.2*13*1.2
- #91001 91001-KKJ9-C00 — BRG BALL RADIAL 6901
- #91201 91201-ABD6-C00 — OIL SEAL 12*20*4
- #91302 91302-0A01-C00 — O-RING 30.8MM
- #91307 91307-0E35-W10 — O-RING 18*3
- #94520 94520-26000 — CIR CLIP INTERAL 26MM
- #96100 96100-60000-00 — BEARING BALL RADIAL 6000
- #11394 11394-KHE7-980 — GASKET R COVER @A
- #15426 15426-GAE1-C00 — SPG OIL FILTER SCREEN
