11191H9A005Sym Joymax Z+ 125 E5 CRANK CASE GASKET — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 10.18 | listing | motogbshop.co.uk |
Location in exploded diagrams

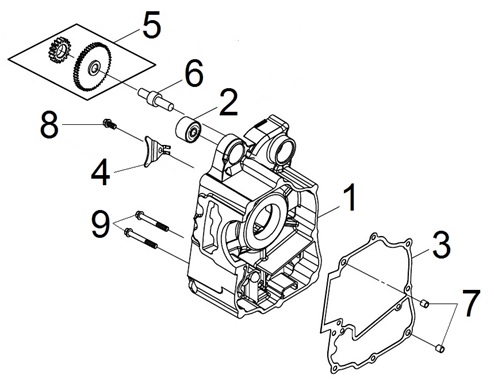

Other parts on this diagram — Right Crank Case Comp
- 960010605000 — Sym Joymax Z+ 125 E5 FLANGE BOLT SH 6X50
- 960010601208 — Sym Joymax Z+ 125 E5 FLANGE BOLT SH 6X12
- 9430108140 — Sym Joymax Z+ 125 E5 DOWEL PIN 8*14
- 28102H9A000 — Sym Joymax Z+ 125 E5 STARTER RED.GEAR SHAFT
- 28100H9A000 — Sym Joymax Z+ 125 E5 STARER RED.GEAR COMP
- 14151H9A000 — Sym Joymax Z+ 125 E5 CAM CHAIN SET PLATE
- 11191H9A000 — Sym Joymax Z+ 125 E5 CRANK CASE GASKET
- 11102H9A300 — Sym Joymax Z+ 125 E5 ENG. HANGER RUB. BUSH
- 11100LGA010 — Sym Joymax Z+ 125 E5 R CRANK CASE COMP
