100-15-0601Lambretta X125 BOLT, M8?40 — Genuine Lambretta Part
Lambrettaoem
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

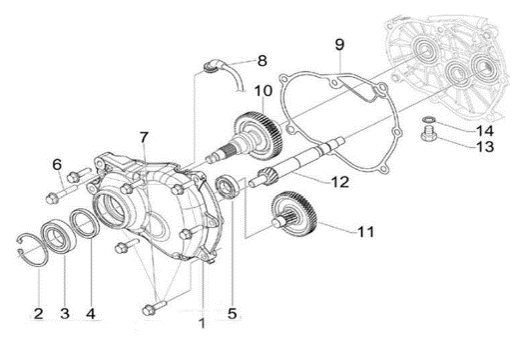

Location in exploded diagrams

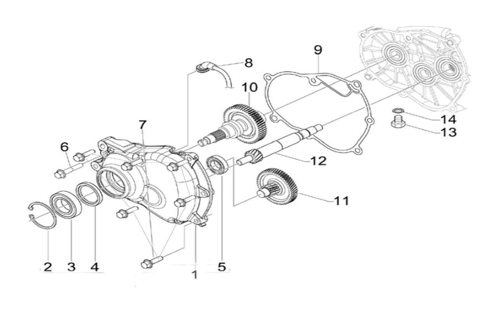

Other parts on this diagram — E14 - Transmission
- 100-15-1401 — Lambretta X125 WASHER,?8.2?1??12
- 100-15-1301 — Lambretta X125 BOLT, M8?12
- D-125-14-1201 — Lambretta X125 Driven Main Shaft
- D-125-14-1101 — Lambretta X125 Counter Shaft
- D-125-14-1001 — Lambretta X125 Final Shaft
- 100-15-0901 — Lambretta X125 TRANSMISSION CASE GASKET
- 100-15-0801 — Lambretta X125 BREATHER PIPE
- 100-15-0701 — Lambretta X125 BOLT, M8?45
- 100-01-0501 — Lambretta X125 BEARING,(6302_C3)
- 100-15-0401 — Lambretta X125 SEAL RING 38?50?7
- 100-15-0301 — Lambretta X125 BEARING
- 100-15-0201 — Lambretta X125 CIRCLIP
- 100-15-0101 — Lambretta X125 TRANSMISSION CASE COVER
