100-10-2001Lambretta X125 BOLT, M6?16 — Genuine Lambretta Part
Lambrettaoem
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

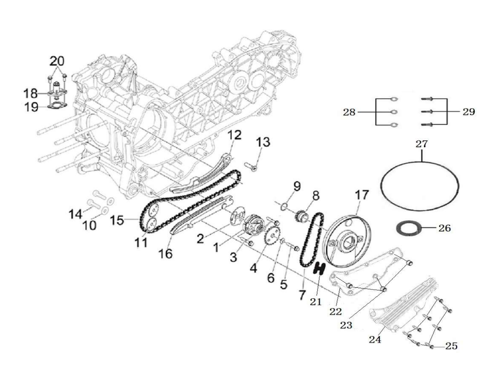

Other parts on this diagram — E09 - Cam Chain & Oil Pump
- 100-10-2201 — Lambretta X125 SCREW, M5?12
- 100-10-3001 — Lambretta X125 WASHER ?5.5?1??10
- 100-10-2801 — Lambretta X125 O-RING,?101?2.6
- 100-10-2901 — Lambretta X125 OIL SEAL 24?35?7
- 100-09-1301 — Lambretta X125 BOLT, M6?30
- D-125-09-2401 — Lambretta X125 Oil Sump
- 100-01-2001 — Lambretta X125 DOWEL PIN,?7.5?12
- D-125-09-2201 — Lambretta X125 Oil Sump Gasket
- 100-10-2701 — Lambretta X125 ASSEMBLY CHAIN PROTECT PLATE
- 100-10-1901 — Lambretta X125 GASKET TENSIONER
- 100-10-1801 — Lambretta X125 CHAIN TIGHTENER
- 100-10-1701 — Lambretta X125 DISK INSULATOR
- D-125-09-1601 — Lambretta X125 Sliding Block
- D-125-09-1501 — Lambretta X125 Sproket Chain
- D-125-09-1401 — Lambretta X125 Bolt, M8?1?20
- D-125-09-1301 — Lambretta X125 Bolt
- D-125-09-1201 — Lambretta X125 Sliding Block
- D-125-09-1101 — Lambretta X125 Timing Driven Sprocket
- D-125-09-1001 — Lambretta X125 Washer,?8.25?4??23
- 100-10-0901 — Lambretta X125 O-RING,?15?1
- D-125-09-0801 — Lambretta X125 Sprocket-P
- 100-10-0701 — Lambretta X125 CHAIN OIL PUMP
- 100-10-0601 — Lambretta X125 DISH WASER,?6.4?2??20
- 100-10-0501 — Lambretta X125 BOLT, M6?14
