100-01-1401Lambretta X125 SPRING,STUD COUPLER FOR STAND — Genuine Lambretta Part
Lambrettaoem
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

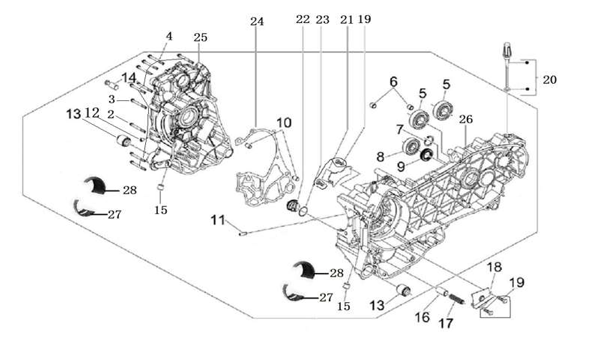

Location in exploded diagrams
Other parts on this diagram — E01 - Engine Block
- D-125-01-2801 — Lambretta X125 Crankshaft BeaRing,B
- D-125-01-2701 — Lambretta X125 Crankshaft BeaRing,A
- D-125-01-2601 — Lambretta X125 Left Crankcase Block
- D-125-01-2501 — Lambretta X125 Right Crankcase Block
- D-125-01-2401 — Lambretta X125 Crankcase Gasket
- 100-01-2401 — Lambretta X125 O-RING,?29.87?1.78
- D-125-01-2201 — Lambretta X125 Strainer Oil Filter Pedestal
- D-125-01-2101 — Lambretta X125 Oil Clapboard
- 100-01-2101 — Lambretta X125 OIL RULER ASSY
- 100-01-1901 — Lambretta X125 BOLT, M5?16
- D-125-01-1801 — Lambretta X125 Cover Sprocket Wheel Oil Pump
- D-125-01-1701 — Lambretta X125 Decompression Spring
- 100-01-1601 — Lambretta X125 DECOMPRESSION
- 100-01-0301 — Lambretta X125 BOLT, M12?1.5
- 100-01-1301 — Lambretta X125 ABSORBER SLEEVE
- 100-01-1201 — Lambretta X125 SCREW
- 100-01-1101 — Lambretta X125 OIL PUSS
- 100-01-0401 — Lambretta X125 PIN
- 100-01-0901 — Lambretta X125 OIL SEAL 20?32?7
- 100-01-0801 — Lambretta X125 BEARING
- 100-01-0701 — Lambretta X125 CHECK RING,?26.9
- 100-01-0601 — Lambretta X125 DOWEL PIN,?11?10
- 100-01-0501 — Lambretta X125 BEARING,(6302_C3)
- 100-01-2501 — Lambretta X125 BOLT, M6?60
