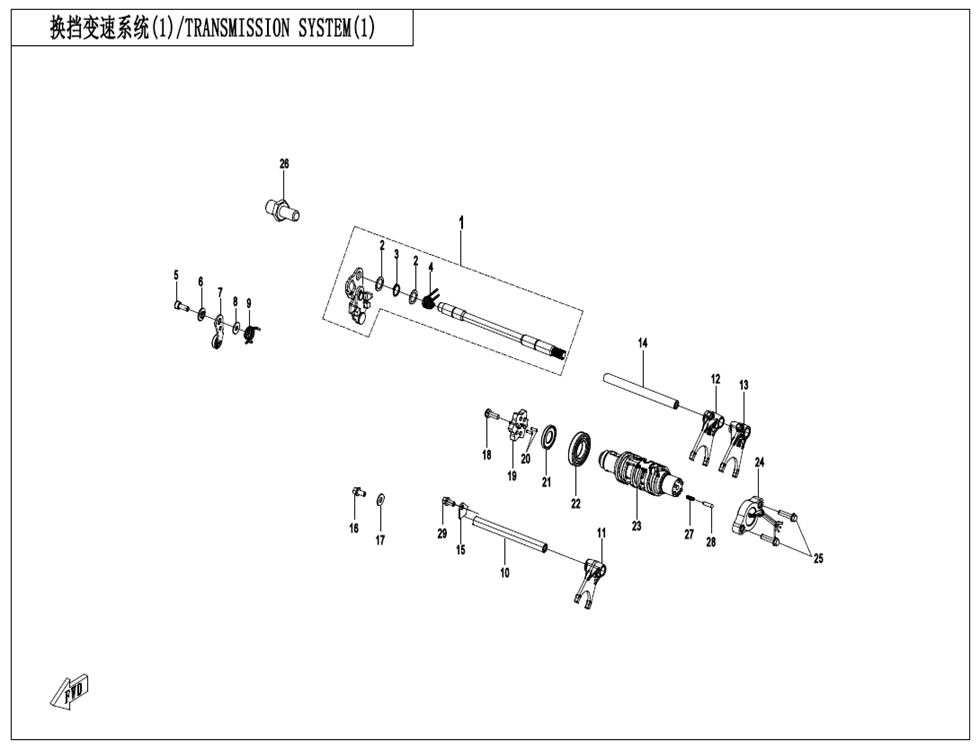

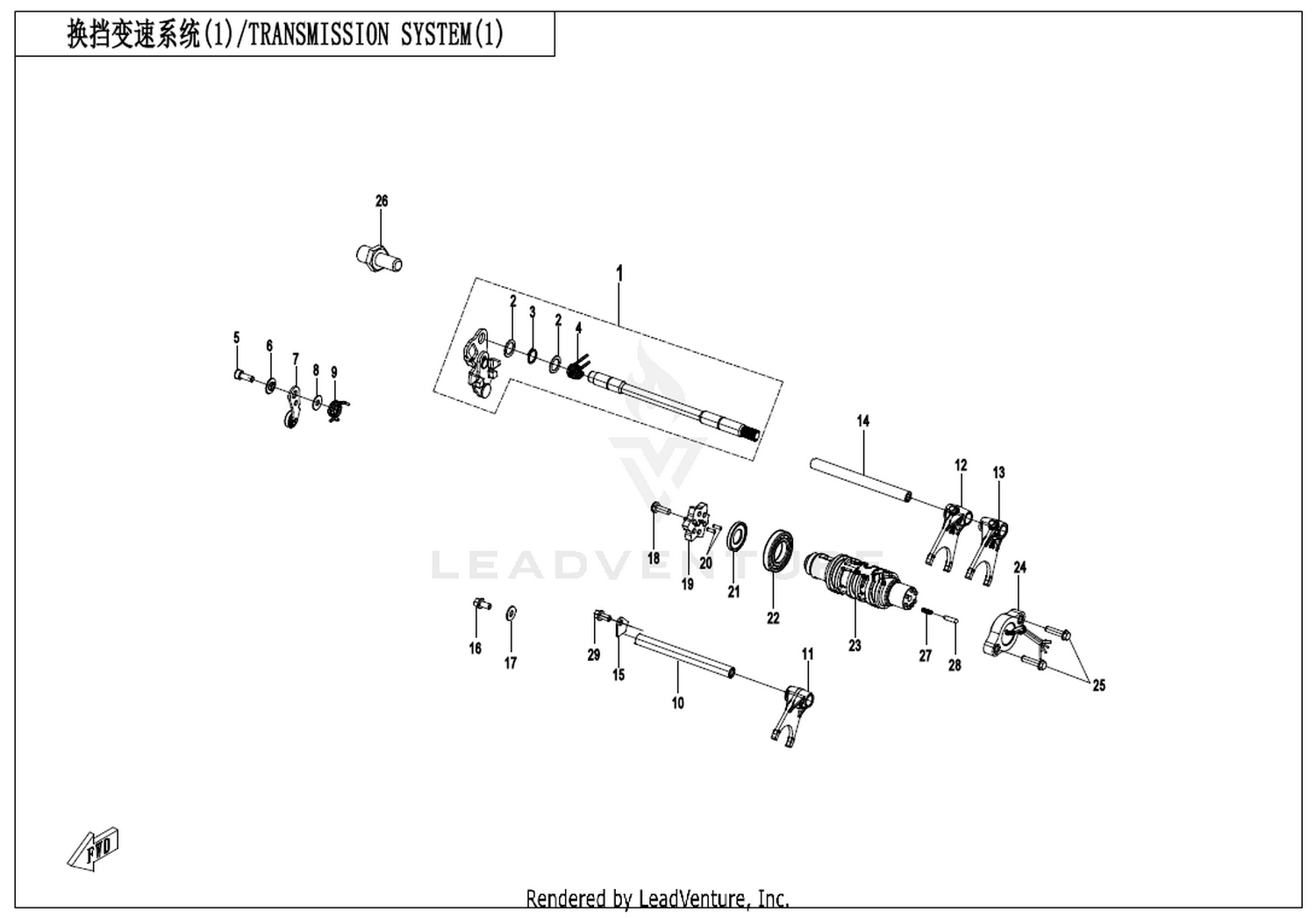

Location in exploded diagrams
Other parts on this diagram — Trainsmision System(1)
- #03 30801-01405 — Circlips For Shaft 14
- #09 0DM0-065001 — Gearshift Swing Arm Spring
- #14 0HTV-060004-7000 — Fork Shaft 2
- #19 0SQV-064100-1002 — Gearshift Drum Cam Assy
- #24 0SQV-060400-1001 — Gear Sensor Assy
- #04 0DM0-063001-00001 — Gearshift Return Spring
- #10 0HTV-060102-7001 — Fork Shaft 1
- #14 0HTV-060004-7001 — Fork Shaft 2
- #20 30406-00303 — Needle Bearing
- #19 0010-021017-0010 — Bolt M6X25 Galvanized Trivalent Chromium
- #09 30102-060016810 — Screw M6X16@Color Zinc Trivalent Chromium
- #15 0HTV-060006-7000 — Fork Shaft Retainer
- #21 0HTV-064002-7000 — Shift Drum Bushing
- #26 0DM0-063002-00001 — Gearshift Position Spring Pin
- #01 0HTV-063000-7001 — Gearshift Lever Assy
- #06 0700-064003-00001 — Gearshift Swing Arm Sleeve
- #11 0HTV-060003-7000 — Shift Fork(Middle)
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
- #22 30400-02505 — Bearing
- #27 0700-063007-00001 — Spring
- #01 0HTV-063000-7002 — Gearshift Lever Assy
- #07 0HTV-065100-7000 — Gearshift Swing Arm Sub Assy
- #12 0HTV-060001-7000 — Lh Gearshift Fork
- #22 30305-060112 — Washer F6@Color Zinc Trivalent Chromium
