0NYV-06900Z-3001REAR GEAR CASE DIFFERENTIAL ASSY — Genuine CF MOTO Part
CF MOTOoem
0NYV-06900Z-3001 - REAR GEAR CASE DIFFERENTIAL ASSY #2
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (5)
United States (4)
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 391.73 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 362.16 | listing | cfmoto.quadzillaparts.co.uk |
| USD | 599.99 | listing | cfmotousaparts.com |

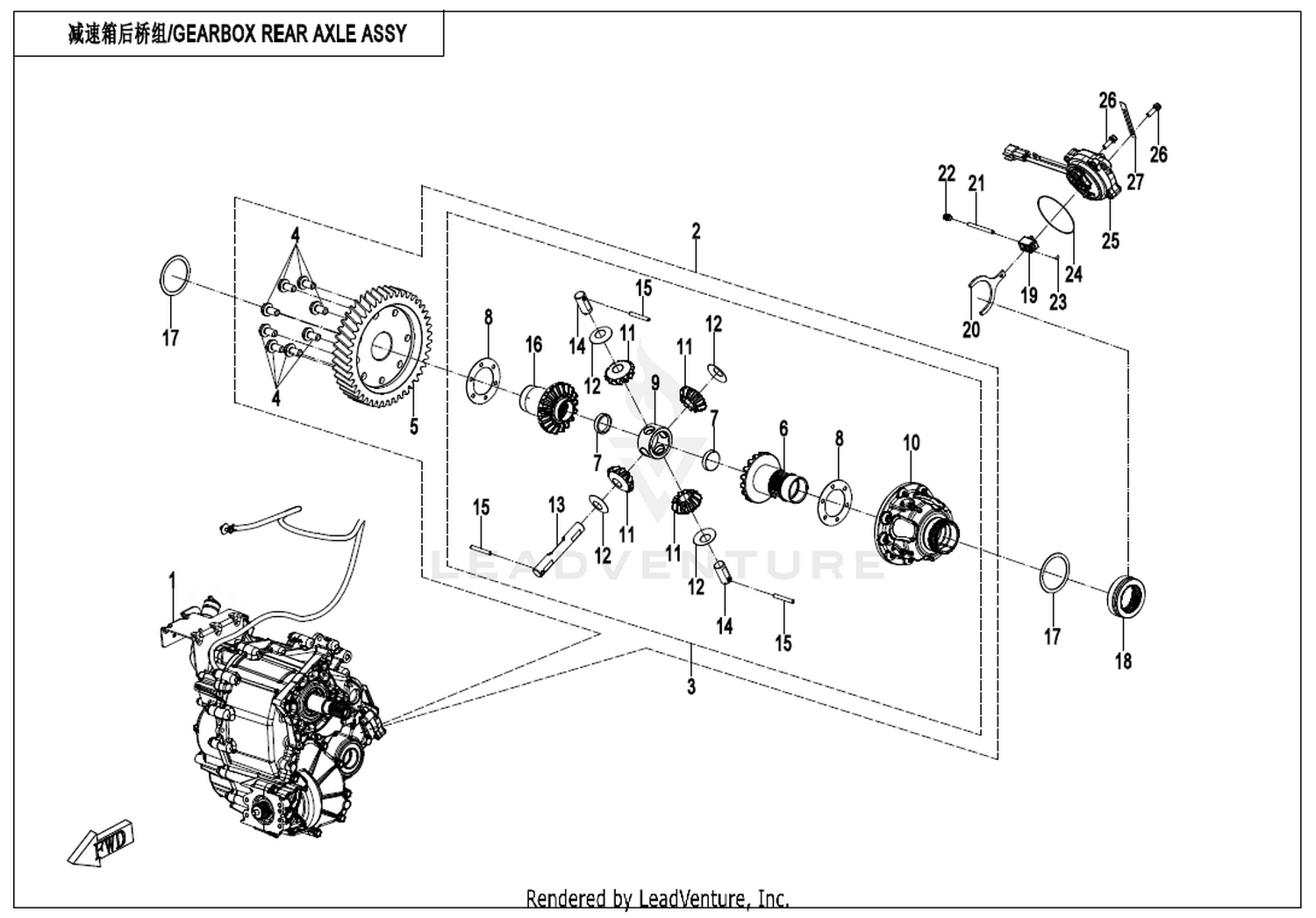

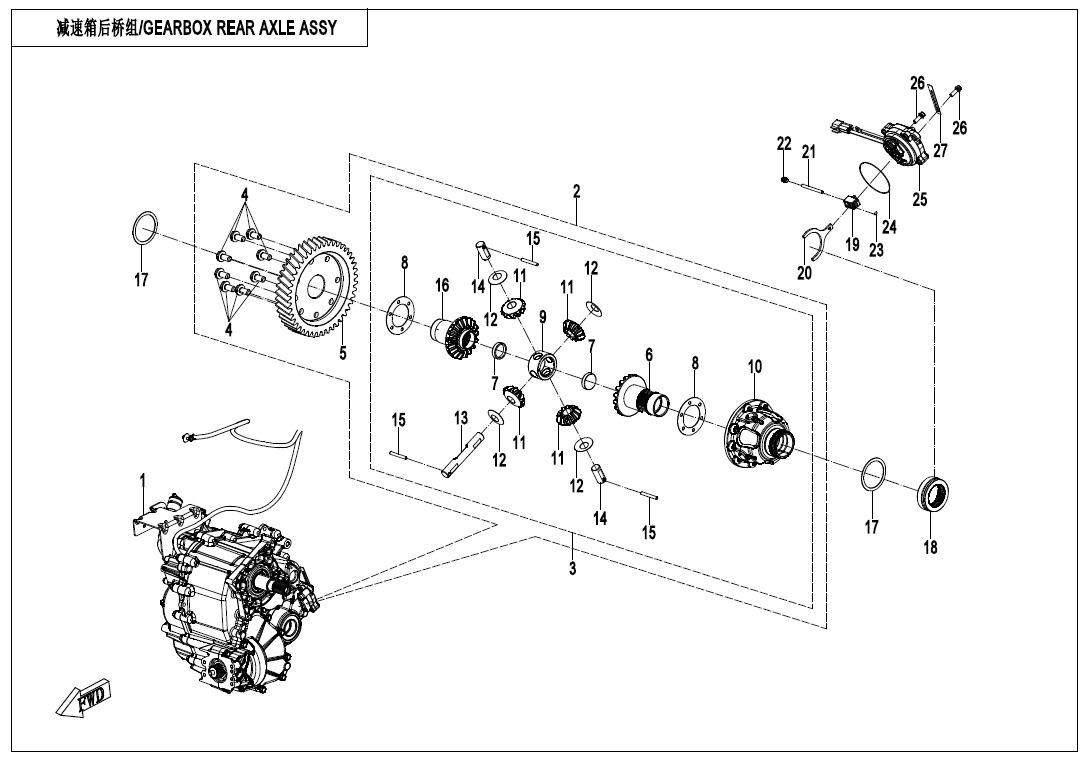

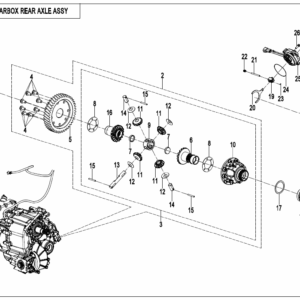

Location in exploded diagrams
Other parts on this diagram — GEARBOX REAR AXLE ASSY
- #27 0180-014010 — WIRE CLAMP
- #15 30906-0504000 — PIN
- #16 0NYV-069102-3001 — RH CV SHAFT GEAR
- #17 Q820-330003-00100 — ADJUSTING WASHER 61*50.5, T=0.10
- #1 0NYV-06010Z-3012 — GEARBOX ASSY Replacing: 0NYV-06010Z-3005 - GEARBOX ASSY
- #3 0NYV-069100-3001 — DIFFERENTIAL ASSY
- #4 0180-021008-00001 — BOLT Replacing: 0181-313100 - BOLT M10X1.25X22
- #5 0NYV-069001-3000 — REAR GEAR CASE GEAR
- #6 0NYV-069106-3001 — LH SHAFT GEAR
- #7 0NYV-069107-3000 — SHAFT GEAR SEAL COVER
- #8 0NYV-069105-3001 — SEMIAXIS GEAR GASKE
- #9 Q870-333102 — CROSS BUSHING
- #10 0NYV-069103-3000 — DIFFERENTIAL HOUSING
- #11 Q870-333105 — PLANET GEAR
- #12 Q870-333109 — SPHERICAL WASHER
- #13 Q870-333106 — PLANET GEAR SHAFT
- #14 Q870-333107 — SHORT PLANET GEAR SHAFT
- #22 30130-080010810 — SCREW
- #17 Q820-330003-00200 — ADJUSTING WASHER 61*50.5, T=0.30
- #17 Q820-330003-00300 — ADJUSTING WASHER 61*50.5, T=0.50
- #17 Q820-330003-00400 — ADJUSTING WASHER 61*50.5, T=0.90
- #17 Q820-330003-00500 — ADJUSTING WASHER 61*50.5, T=0.92
- #17 Q820-330003-00600 — ADJUSTING WASHER 61*50.5, T=0.94
- #17 Q820-330003-00700 — ADJUSTING WASHER 61*50.5, T=0.96
