Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.94 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.80 | listing | cfmoto.quadzillaparts.co.uk |

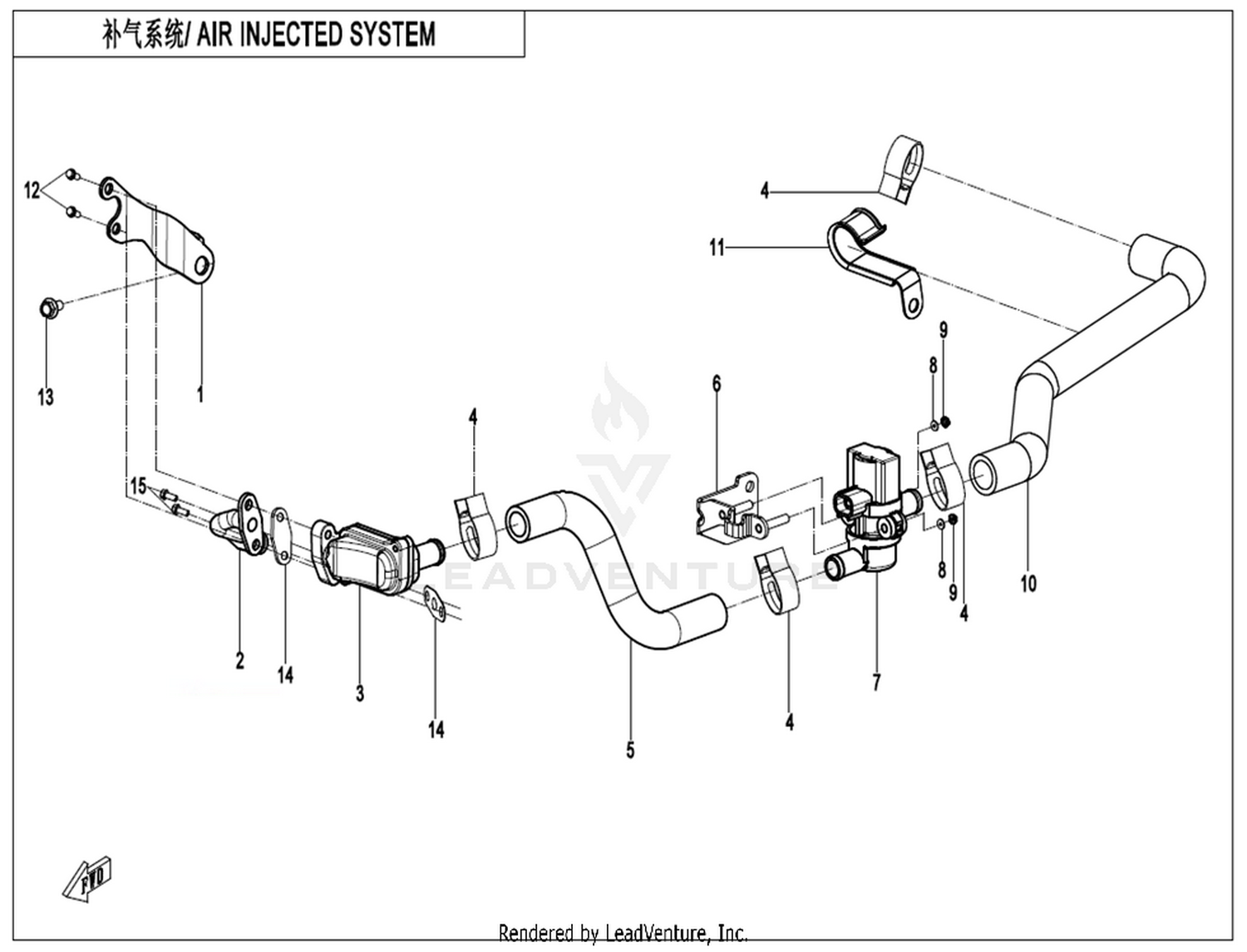

Location in exploded diagrams
Other parts on this diagram — Air Injected System
- #06 9DQ#-030030-6000 — Ais Valve Bracket
- #21 30001-060016810 — Bolt Gb & T5787 & M6X16 & Trivalent Chromium
- #11 0HU0-179000 — Gulp Valve
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
- #02 0JYC-028220-00001 — Cylinder 2 Sas Pipe Assy
- #19 30306-050110 — Wahser 5
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #05 0JYC-022200 — Sas One-Way Valve
- #06 30202-050110 — Nut M5
- #06 8030-020101 — One-Way Valve Gasket
- #03 30604-116500 — Hose Clamp Qc & T620 16.5 (12~20)
- #10 0GQV-110002-2100 — Gulp Valve Breather Hose
- #20 30001-060014810 — Bolt M6×14
- #05 0GQA-110001 — Gulp Hose
- #11 9DQV-030040-6001 — Gulp Hose Wire Clip
- #05 0110-090008-0030 — Bolt M6X14 M6X14
