0JYA-071004Water Outlet Pipe, Cylinder Head — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 6.59 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 6.10 | listing | cfmoto.quadzillaparts.co.uk |

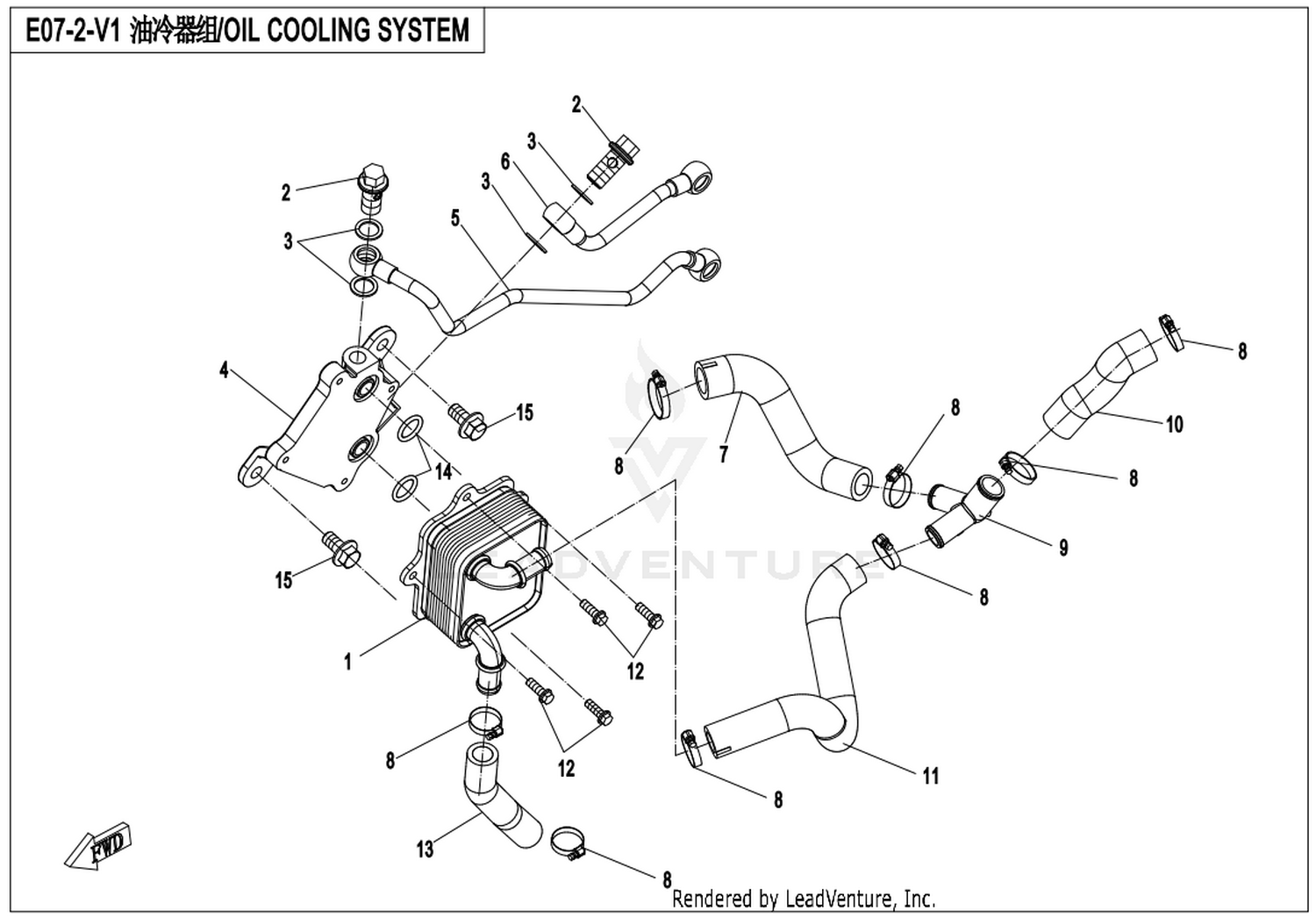

Location in exploded diagrams
Other parts on this diagram — Oil Cooling System
- #06 0JYA-071200 — Oil Outlet Pipe, Oil Cooler
- #50 0010-023008-00001 — Bolt
- #01 0JWA-071300 — Oil Cooler
- #13 0JWA-071002-10000 — Water Inlet Hose, Oil Cooler
- #20 0180-011007-0010 — Bolt M14X1.5X32 Galvanized Trivalent Chromium
- #01 30603-125020 — Clamp D25
- #14 30502-017000F — O-Ring 17X2.5
- #16 0180-011006 — Gasket 14 14
- #09 0JYA-071006 — T-Joint, Water Hose
- #18 30006-103020810 — Bolt M10X20 M10X20
- #04 0JWA-071001 — Base Seat, Oil Cooler
- #10 0JYA-071005 — Water Hose, 2 Cylinder
- #05 0JYA-071100 — Oil Inlet Pipe, Oil Cooler
- #11 0JYA-071003 — Water Outlet Pipe, Oil Cooler
