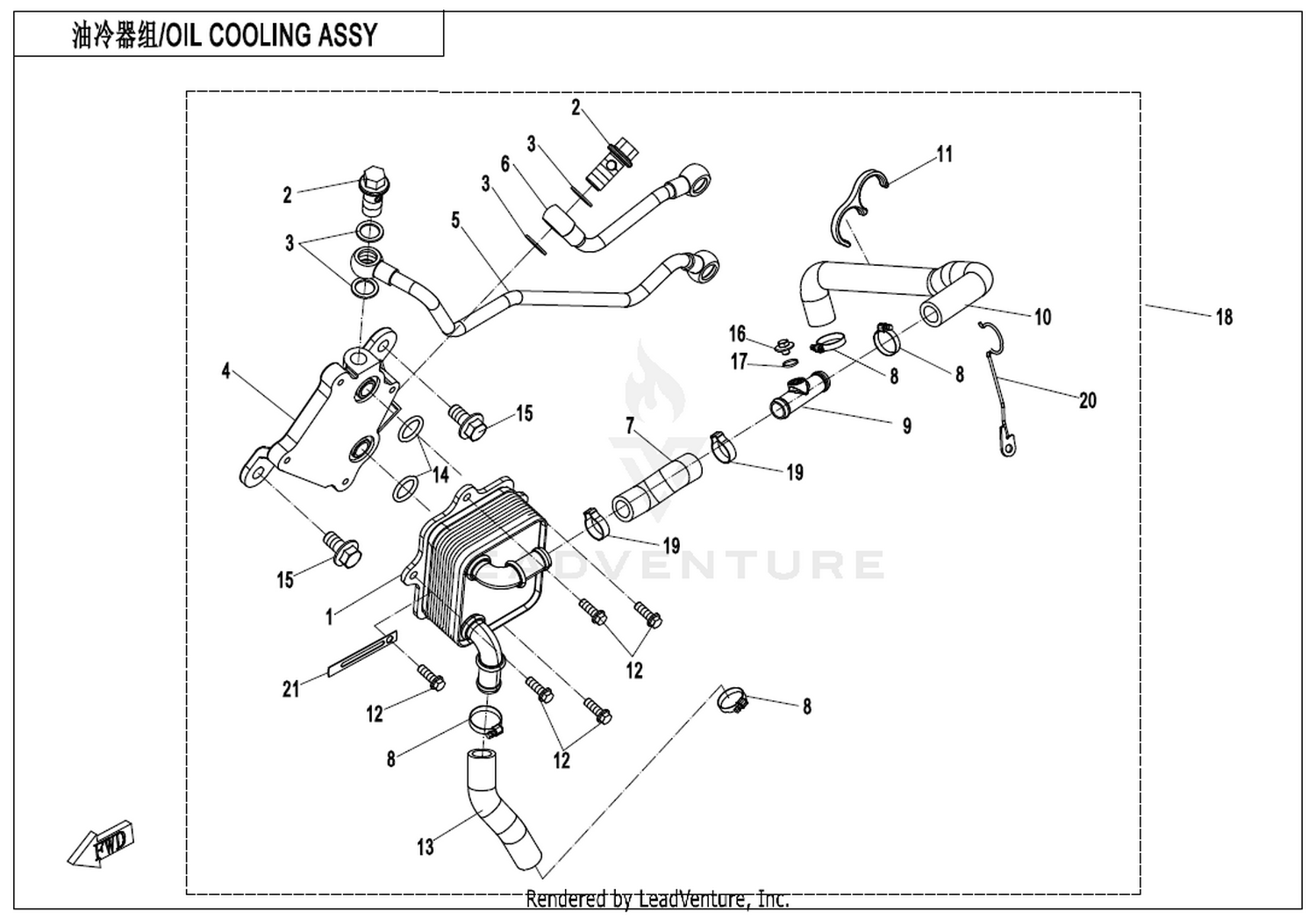

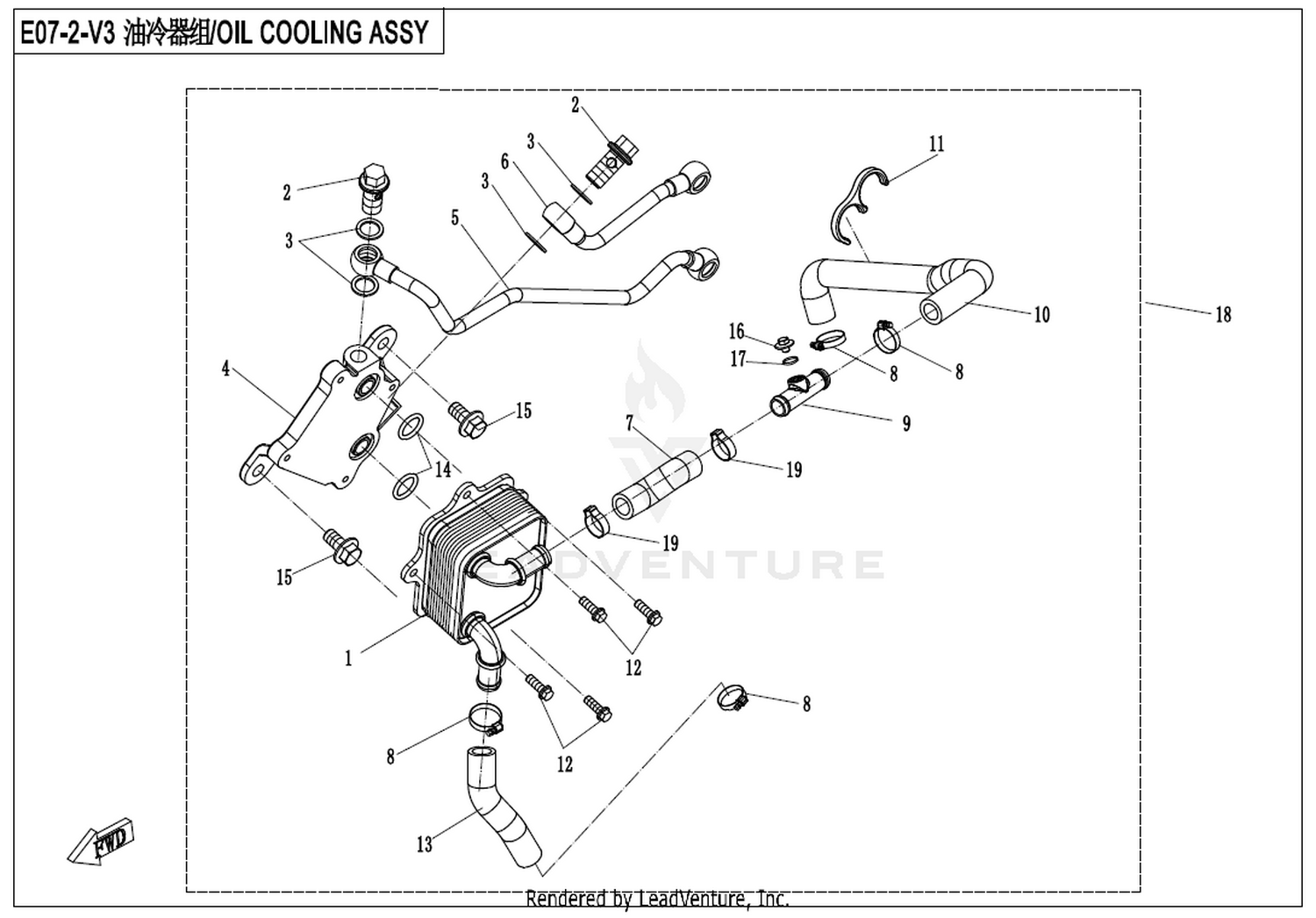

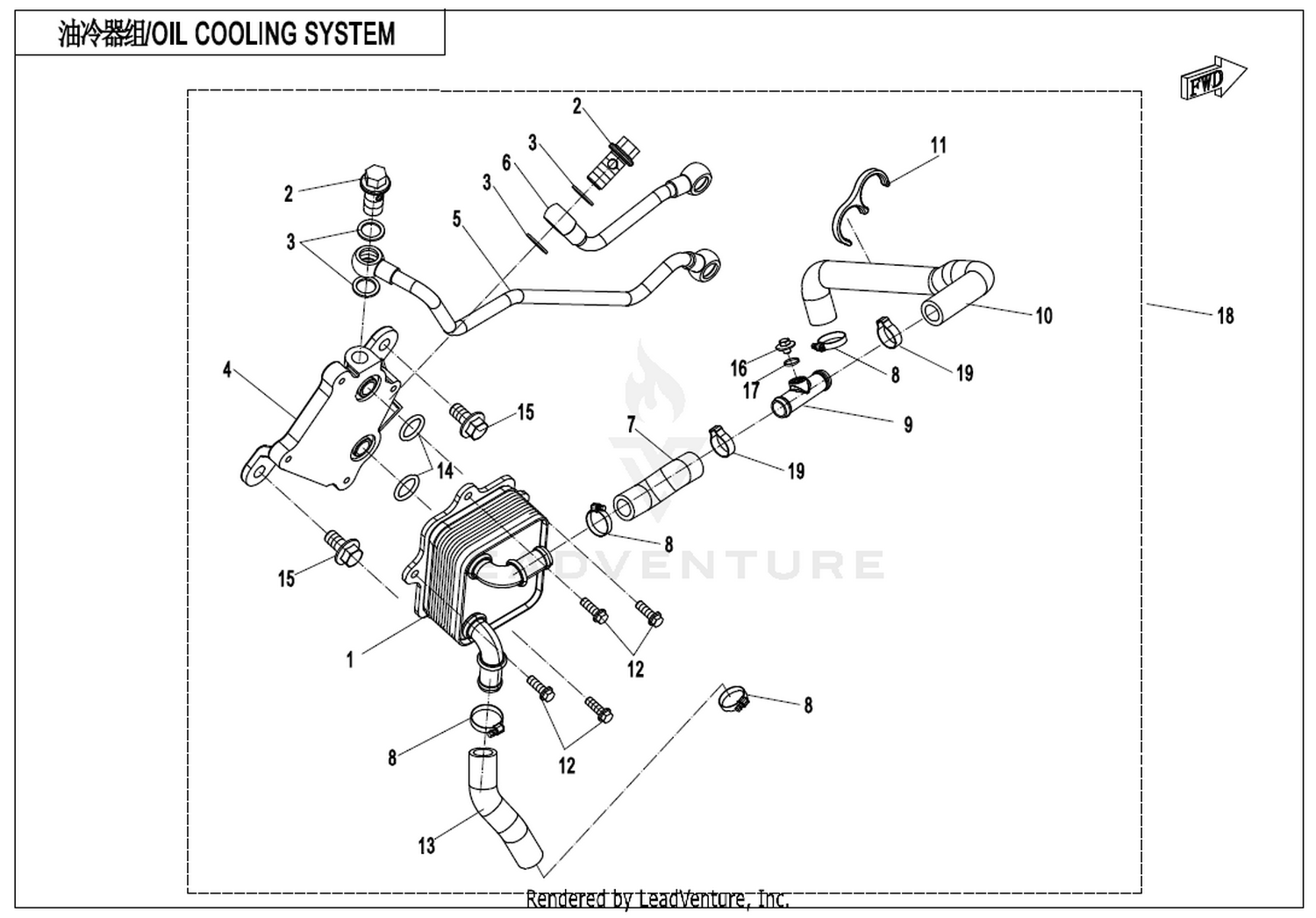

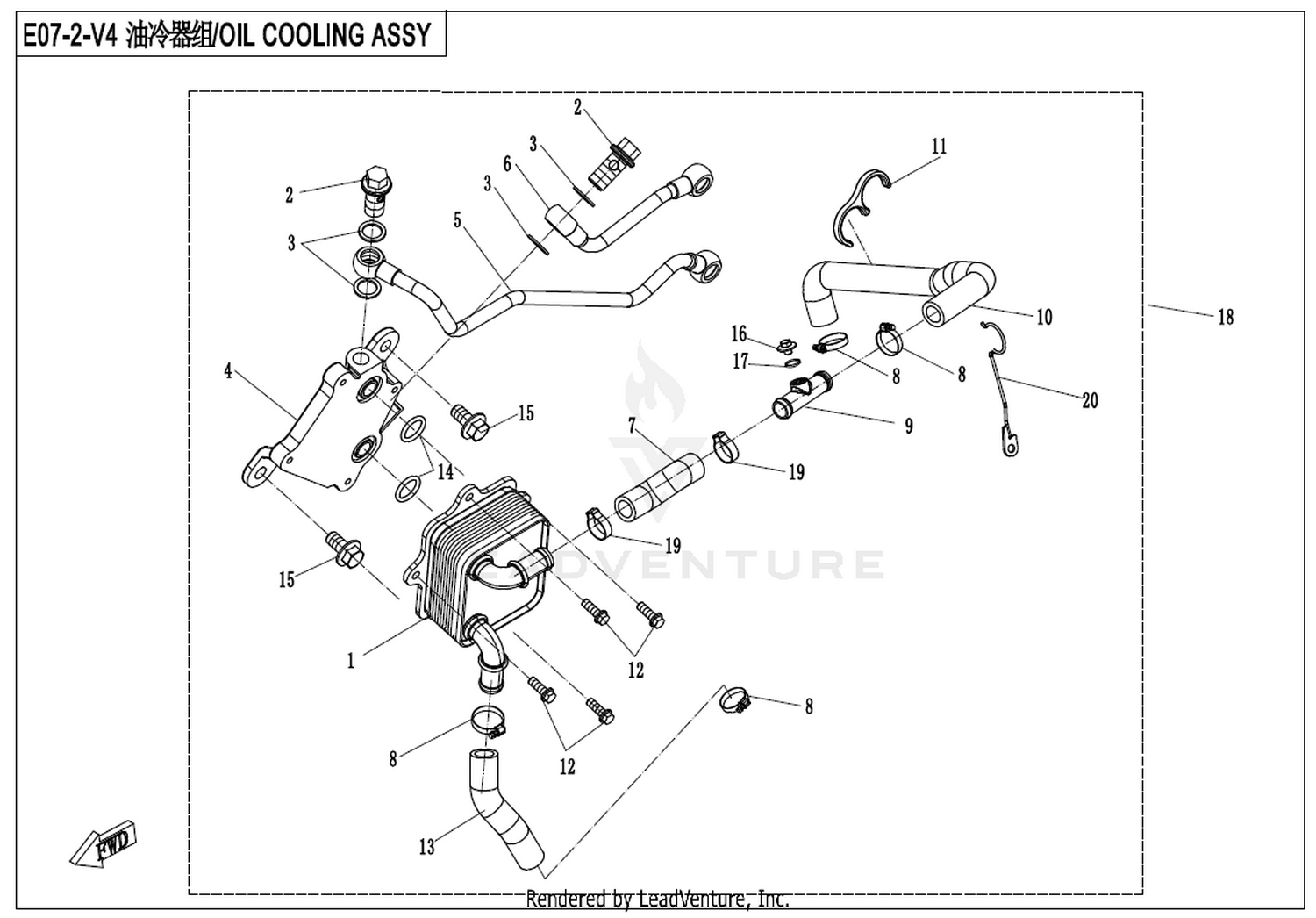

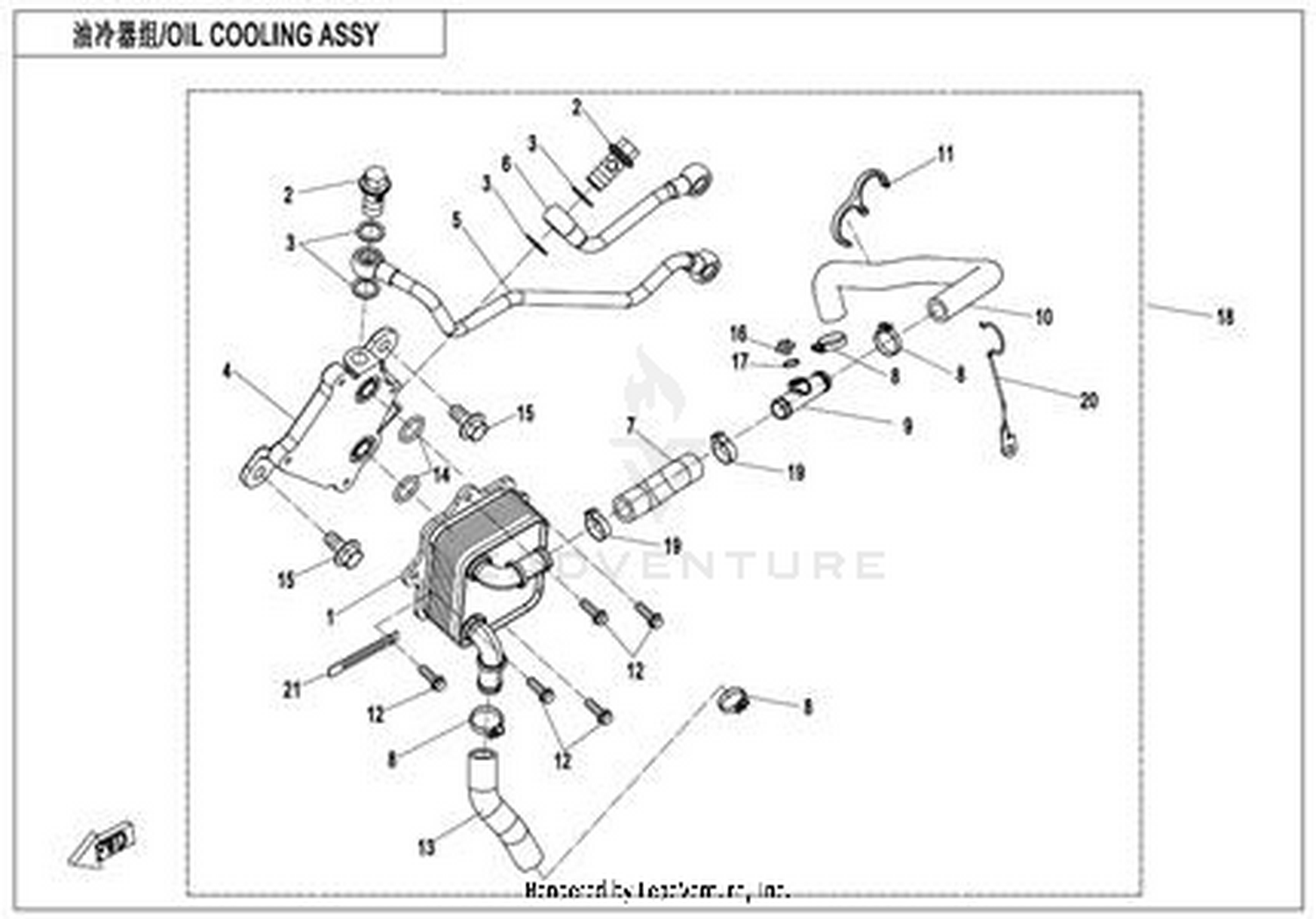

Location in exploded diagrams
Other parts on this diagram — Oil Cooling System
- #01 0JWA-071300 — Oil Cooler
- #13 0JWA-071002-10000 — Water Inlet Hose, Oil Cooler
- #19 C3H0-073002 — Clamp D25.6
- #20 0180-011007-0010 — Bolt M14X1.5X32 Galvanized Trivalent Chromium
- #01 30603-125020 — Clamp D25
- #14 30502-017000F — O-Ring 17X2.5
- #20 0JWA-071400 — Bracket, Water Pipe
- #16 0180-011006 — Gasket 14 14
- #09 0JYA-071401 — Water Outlet Bipass
- #18 30006-103020810 — Bolt M10X20 M10X20
- #16 0180-014010 — Wire Clamp
- #04 0JWA-071001 — Base Seat, Oil Cooler
- #10 0JYA-071008-20000 — Oil Cooler Water Outlet Pipe 2
- #10 0JYA-023001-00001 — Hex Flange Bolt M6X6 Galvanized Trivalent Chromium
- #05 0JYA-071100 — Oil Inlet Pipe, Oil Cooler
- #11 0JYA-071007 — Clip, Water Pipe
- #11 0700-011202 — O-Seal Ring 8.2X1.90
- #06 0JYA-071200 — Oil Outlet Pipe, Oil Cooler
- #50 0010-023008-00001 — Bolt
- #18 0JYA-07100Z-40000 — Oil Cooler Sub Assy
