0JYA-062207DRIVEN BEVEL GEAR — Genuine CF MOTO Part
CF MOTOoem
0JYA-062207 - DRIVEN BEVEL GEAR #33
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

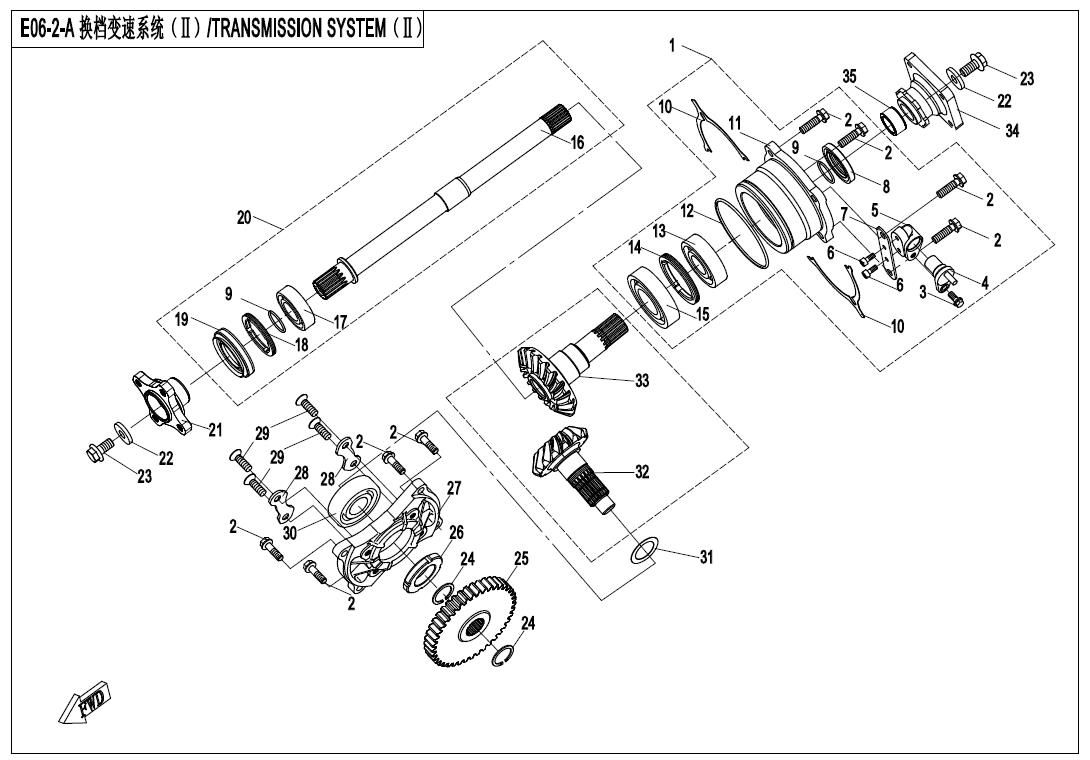

Location in exploded diagrams
Other parts on this diagram — TRANSMISSION SYSTEM(?)
- #1 0800-0622B0-00001 — DRIVEN BEVEL GEAR Replacing: 0800-0622B0 - DRIVEN BEVEL GEAR ASSY
- #2 30001-060014810 — BOLT M6X14
- #3 0JYA-062104 — BOLT M8X28 Replacing: 0110-060011-0010 - BOLT M8X28
- #4 7020-150400 — SPEED SENSOR
- #5 0800-062208 — SEAT, SPEED SENSOR
- #6 30102-050012840 — INNER HEX SCREW, M5×12
- #7 0800-062209 — PLATE, SPEED SENSOR
- #8 0800-062204 — OIL SEAL 35X50X6
- #9 0800-062205 — O-RING 25X2
- #10 0800-062203-0004 — ADJUST GASKET, DRIVEN BEVEL GEAR, T=0.5
- #10 0800-062203-0003 — ADJUST GASKET, DRIVEN BEVEL GEAR, T=0.4
- #10 0800-062203-0002 — ADJUST GASKET, DRIVEN BEVEL GEAR, T=0.3
- #10 0800-062203-0001 — ADJUST GASKET, DRIVEN BEVEL GEAR, T=0.2
- #11 0800-062202-1000 — BEARING HOUSING, DRIVEN BEVEL
- #12 0180-062205 — O-RING 88X2.5
- #13 30400-02502 — BEARING 16017/C2
- #14 0800-062206 — STOPPER NUT, BEARING
- #15 30400-03500 — BEARING 6207C3
- #16 0JWA-062301 — FRONT OUTPUT SHAFT
- #17 30400-02501 — BEARING
- #18 0180-060008 — BEARING RETAINER, FRONT OUTPUT SHAFT
- #19 0JWA-062302-00001 — OIL SEAL Replacing: 0JWA-062302 - OIL SEAL 35X61X9 (14)
- #20 0JWA-062300 — FRONT OUTPUT SHAFT ASSY
- #21 0GR0-060003-00001 — COUPLER Replacing: 0GR0-060003 - COUPLER
