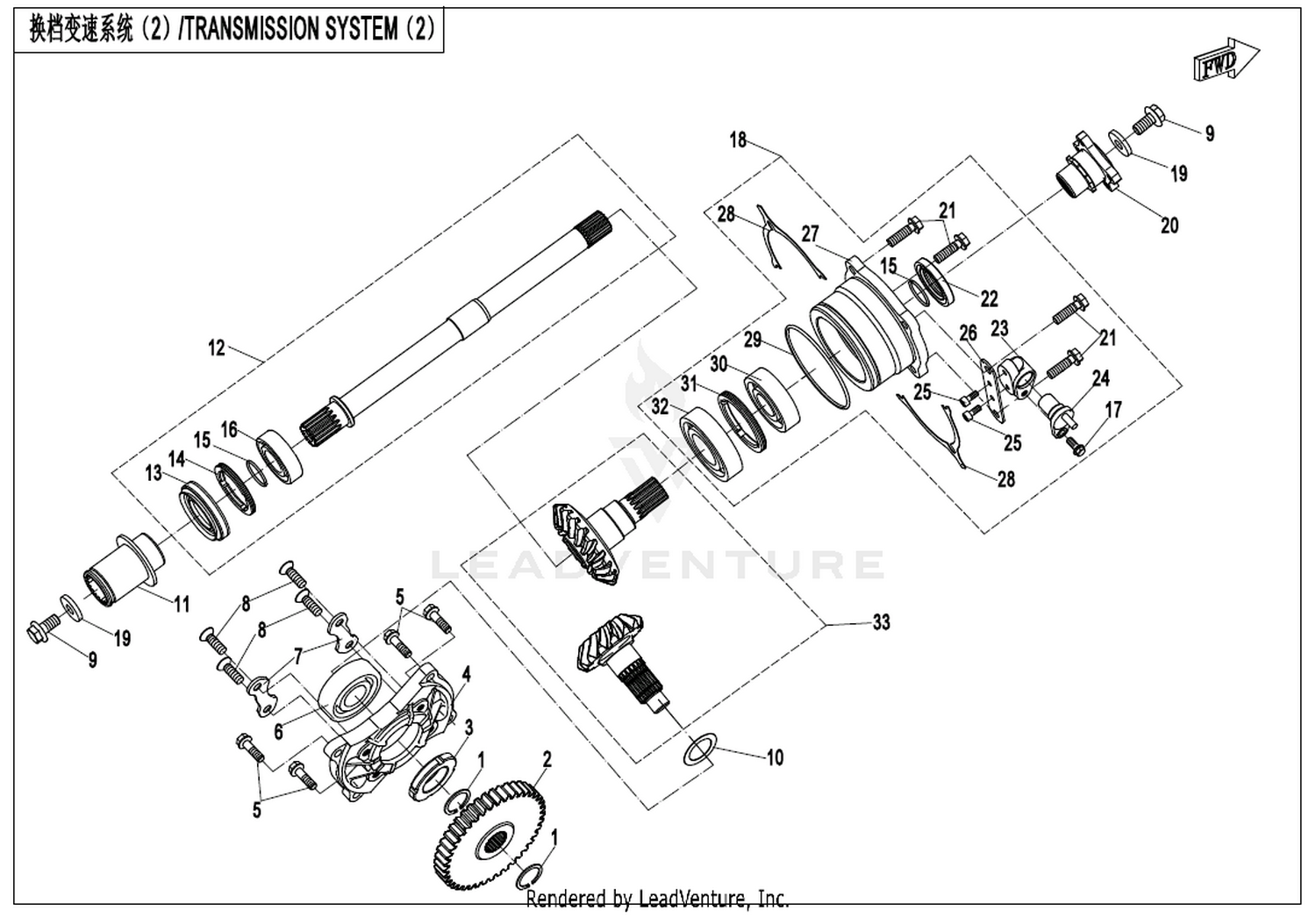

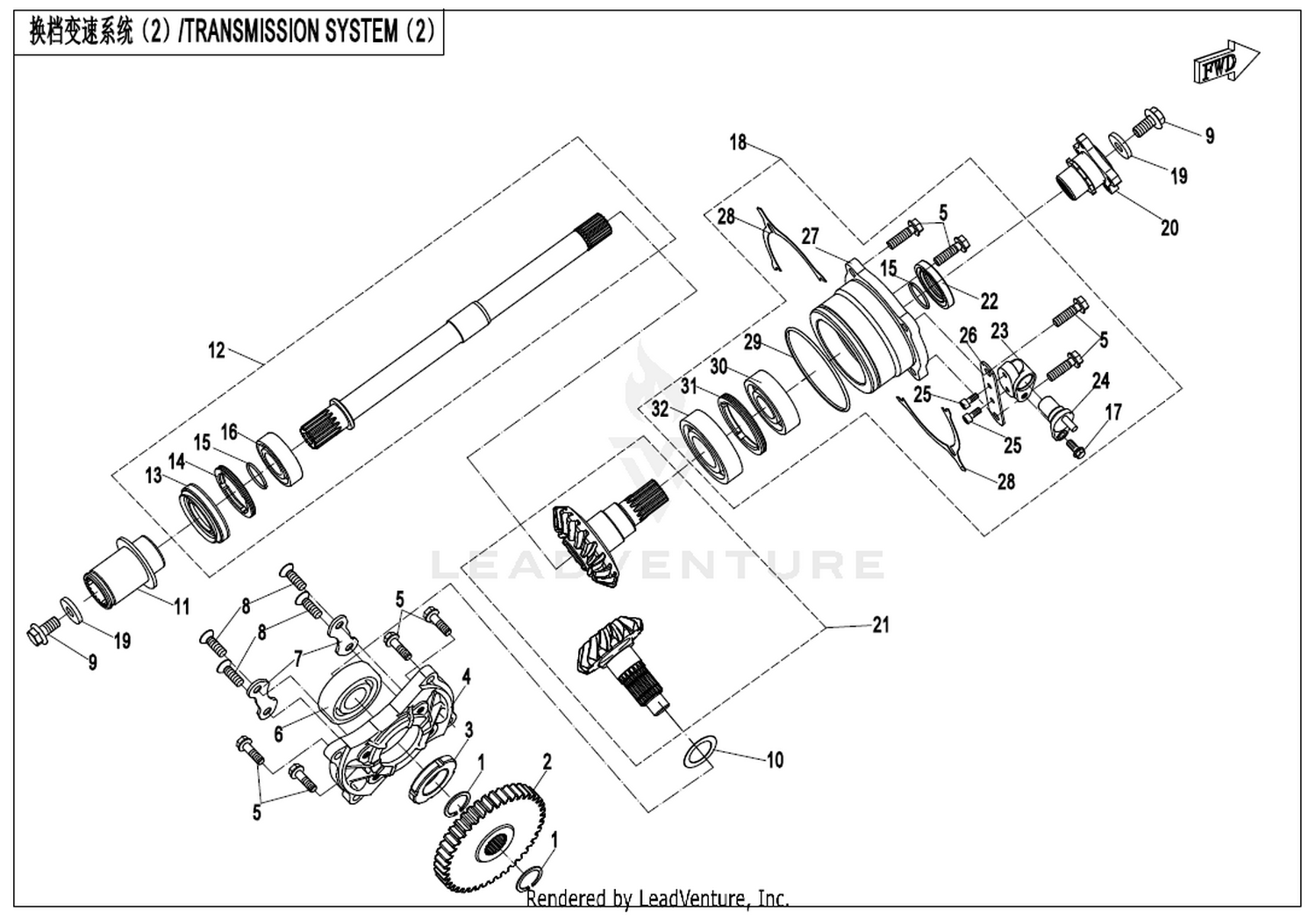

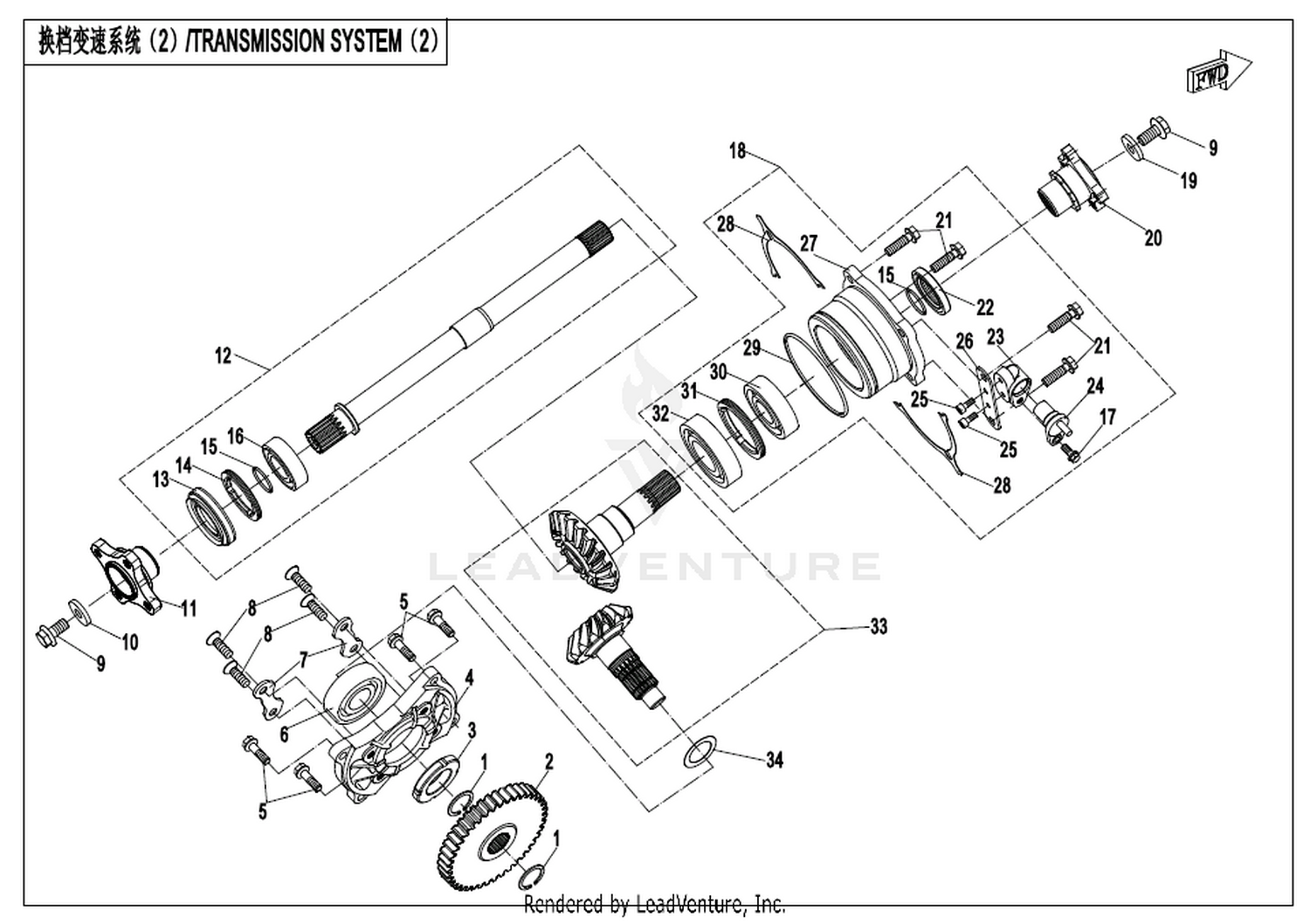

Location in exploded diagrams
Other parts on this diagram — Transmission System(2)
- #02 0180-061007-0050 — Circlip 25 25
- #13 0110-041007 — Bearing 28×68×18
- #09 0JYV-062101-1E00-Q0-00003 — Adjusting Washer, Drive Bevel Gear T=1.500-1.549
- #23 0180-060008 — Bearing Retainer, Front Output Shaft
- #07 0800-062209 — Speed Sensor Plate
- #15 0800-062203 — Adjusting Gasket, Driven Bevel Gear T=0.1 T=0.1
- #23 0800-062102 — Output Driven Gear
- #06 0180-062104-0010 — Limitator, Bearing
- #09 0JYV-062101-1E00-Q0-00004 — Adjusting Washer, Drive Bevel Gear T=1.550-1.599
- #05 0800-062205 — O-Ring 25X2
- #32 0JYA-0622B0-00002 — Bevel Gear Assy
- #12 0800-062202-10001 — Driven Bevel Gear Bearing Seat
- #27 0800-062203-0050 — Adjusting Gasket, Driven Bevel Gear T=0.15 T=0.15
- #26 0JYA-062102-00001 — Lock Nut, Bevel Gear M10X1.25X30
- #07 30124-080025810 — Screw M8X25@Color Zinc-Plated
- #09 0JYV-062101-1E00-Q0-00005 — Adjusting Washer, Drive Bevel Gear T=1.600-1.649
- #24 30400-02501 — Bearing 25
- #06 0800-062204 — Oil Seal 35X50X7
- #15 0800-062203-0004 — Adjusting Gasket, Driven Bevel Gear T=0.5 T=0.5
- #19 0180-062205 — O-Seal Ring 88X2.5
- #27 0JYA-062103 — Bearing Seat,Drive Bevel Gear
- #12 0JWA-060002-00001 — Bolt M10X1.25X30
- #21 0GQ0-060100 — Front Output Bushing Assy
- #20 30001-060014810 — Bolt M6×14
