0JYA-052008SPRING, DRIVEN PULLEY — Genuine CF MOTO Part
CF MOTOoem
0JYA-052008 - SPRING, DRIVEN PULLEY #22
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (3)
United Kingdom (2)

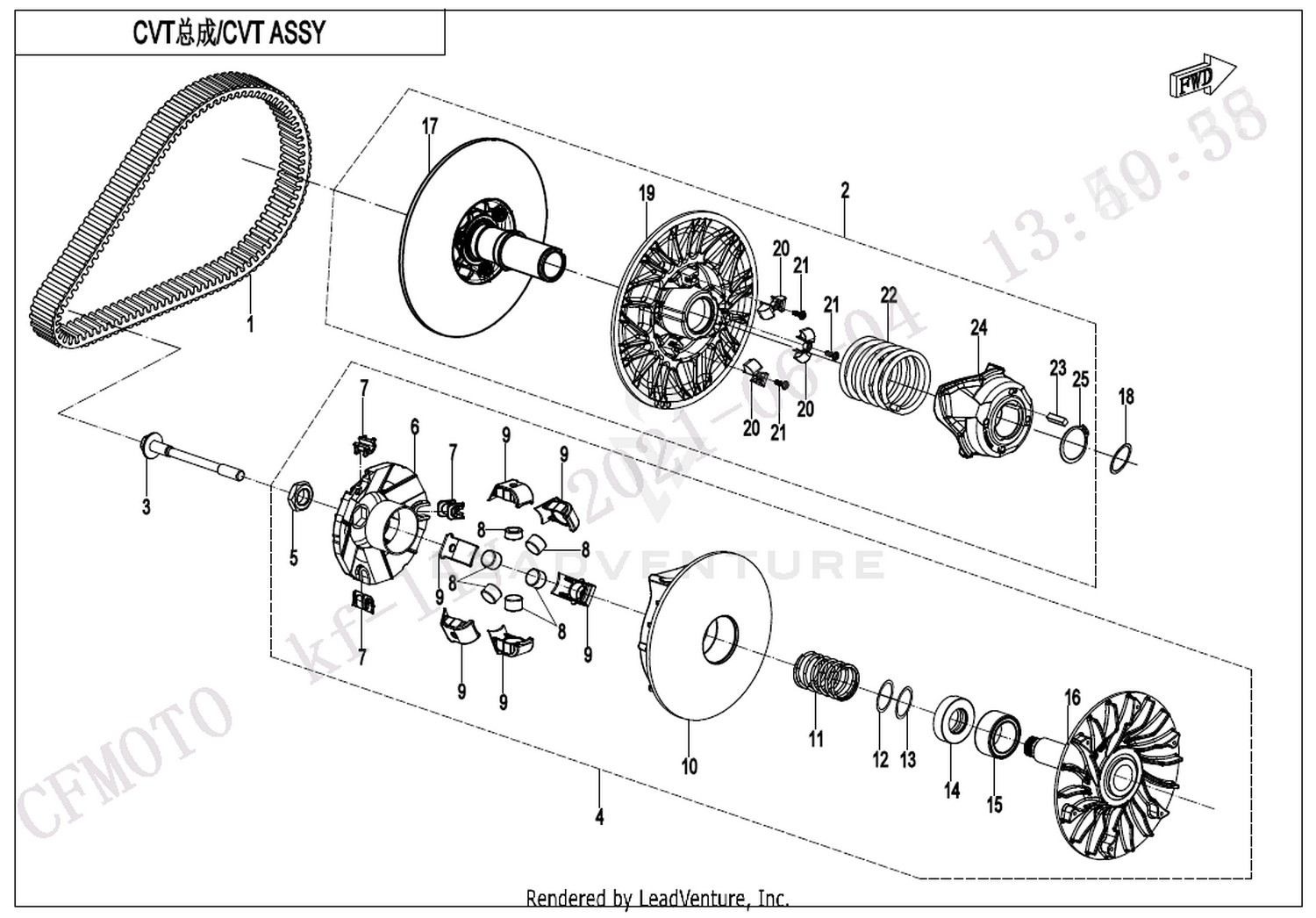

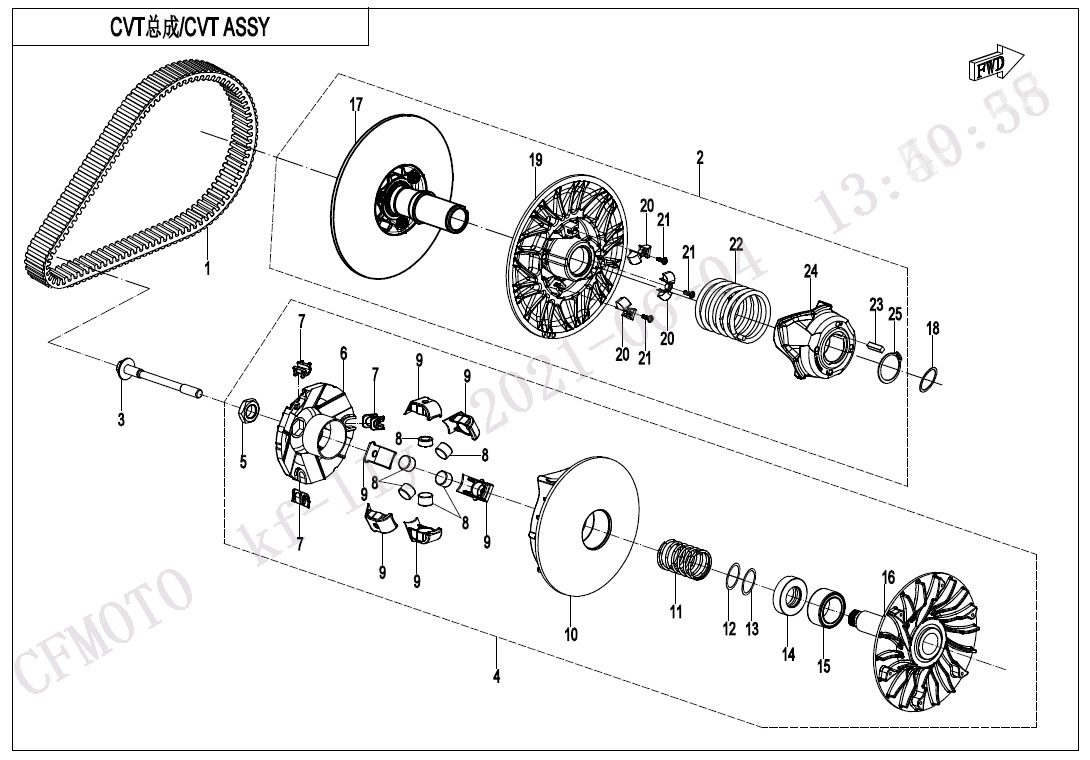

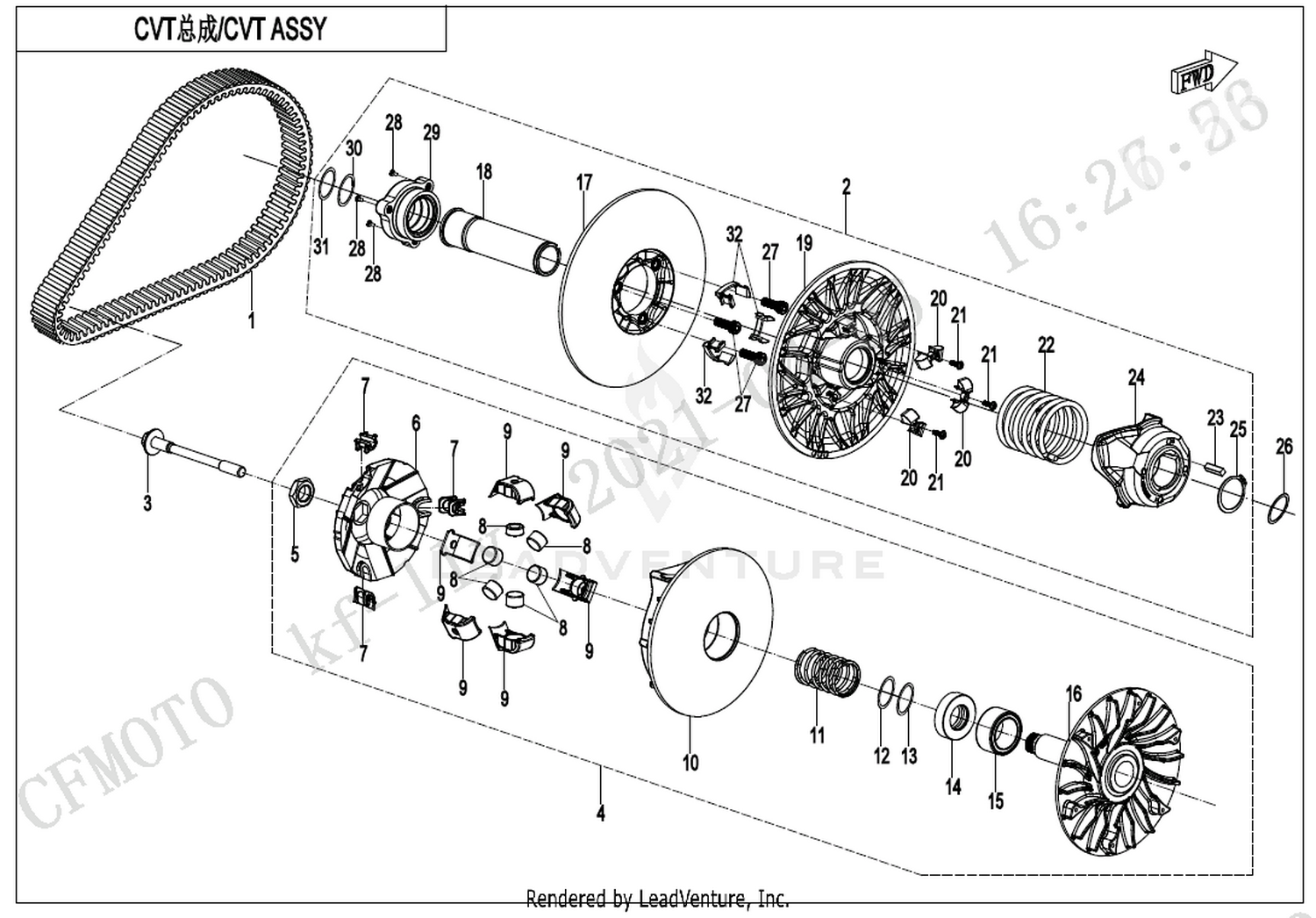

Location in exploded diagrams

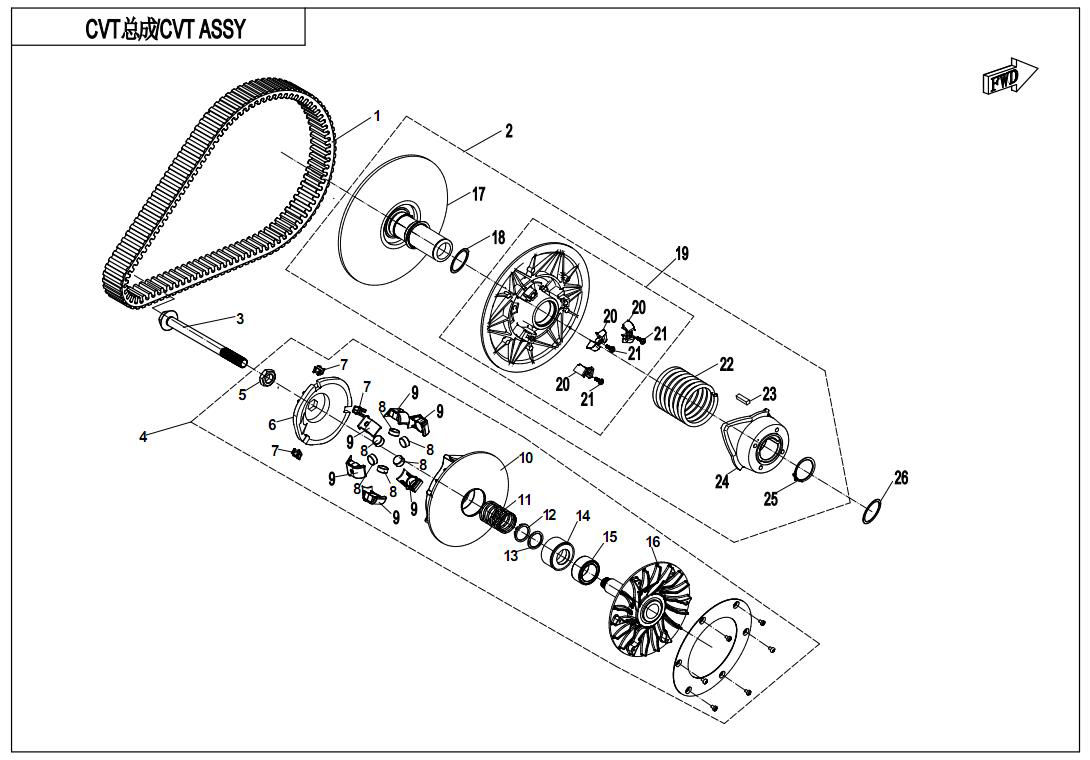

Other parts on this diagram — CVT ASSY (FOR MECHANICAL DOWNHILL BRAKING)
- #21 0GR0-052006 — SCREW
- #23 0GR0-052003 — TAPER KEY
- #1 0JWA-055000-10000 — TOOTHED DRIVE BELT
- #2 0JYA-052000-50000 — DRIVEN PULLEY ASSY
- #3 0JY0-050001-00001 — BOLT, DRIVE PULLEY LH THREAD
- #4 0JYA-051000-50001 — DRIVE PULLEY ASSY, FOR MECHANICAL DOWNHILL BRAKING Replacing: 0JYA-051000-50000 - DRIVE PULLEY ASSY, FOR MECHANICAL DOWNHILL BRAKING
- #5 0JYA-051013-10000 — NUT, DRIVE PULLEY
- #6 0JYA-051006-10000 — THRUST COLLAR
- #7 0JYA-051004-10000 — NYLON PARTS, THRUST DISC
- #8 0JYA-051001 — WEIGHT ROLLER 20G
- #9 0GR0-051005 — NYLON PROTECTOR,WEIGHT
- #10 0JYA-051100 — MOVING PLATE ASSY, DRIVE PULLEY
- #11 0JY0-051002 — SPRING, DRIVE PULLEY, 16G
- #12 0GR0-051009-10000 — NYLON WASHER
- #13 0GR0-051011 — STEEL WASHER
- #14 0GR0-051001 — SPRING SEAT
- #15 0JYA-051210 — ONE-WAY BEARING, DRIVE PULLEY, FOR MECHANICAL DOWNHILL BRAKING
- #16 0JYA-051200 — DRIVE FIXED PULLEY ASSY
- #17 0JYA-052011 — FIXED SHEAVE, DRIVEN PULLEY
- #18 1F30-060002-00500 — ADJUSTING WASHER 20.2X28
- #19 0JYA-052010 — SLIDING SHEAVE, DRIVEN PULLEY
- #20 0GR0-052005 — NYLON BLOCK
- #24 0JYA-052009 — CAM PLATE
- #25 0GR0-052004 — CIRCLIP
