Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

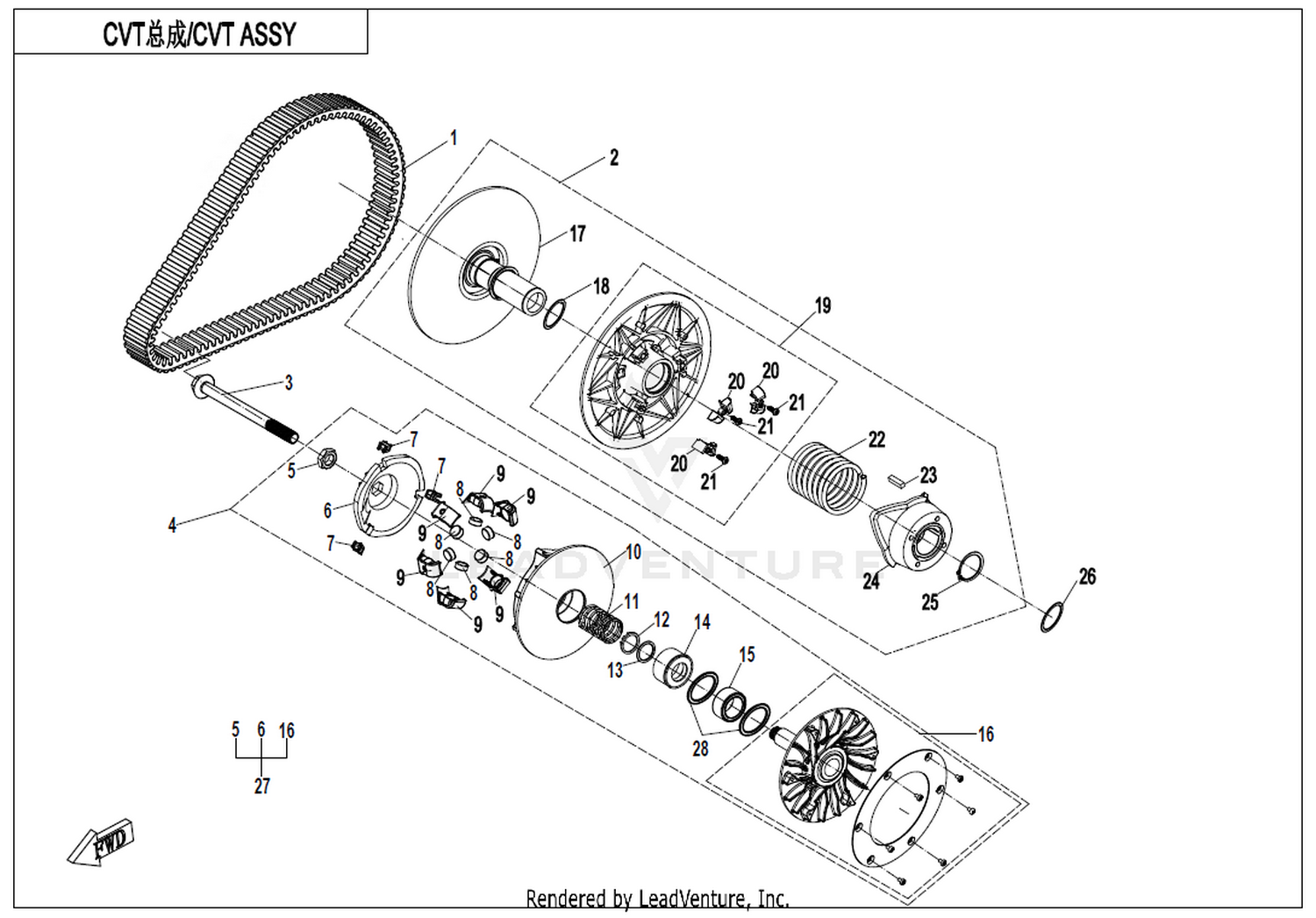

Other parts on this diagram — Cvt Assy(16G Weight Roller) 1
- #12 0JYA-051006-10000 — Thrust Collar Cvtech
- #15 0GR0-051009-10000 — Nylon Washer
- #18 0JYA-052007 — Nylon Washer Cvtech
- #11 0GR0-052002 — Cam Plate Cvtech
- #01 0JWA-055000-10000 — Toothed Drive Belt Mitsuboshi
- #08 0JYA-051004-10000 — Thrust Disc Nylon Parts
- #14 0GR0-051011 — Steel Washer Cvtech
- #06 0GR0-0522A0 — Sliding Flange Assy Cvtech
- #21 0GR0-052004 — Circlip Cvtech
- #02 0JYA-052000 — Driven Pulley Assy
- #07 0GR0-051004-20000 — Weight Roller 16G
- #18 0GR0-051001 — Spring Seat Cvtech
- #24 0GR0-052005 — Nylon Block Cvtech
- #05 0GR0-050001-00002 — Adjusting Washer
- #02 0JY0-050001-00001 — Drive Pulley Bolt Galvanized Trivalent Chromium
- #06 0GR0-051005 — Nylon Protector, Weight Roller Cvtech
- #17 0JYA-051300 — Needle Bearing
- #25 0GR0-052006 — Screw Cvtech
- #04 0JYA-051000-00004 — Drive Pulley Assy
- #13 0JYA-051100 — Moving Plate Assy, Drive Pulley Cvtech
- #16 0JYA-051200-20000 — Drive Fixed Pulley Assy
- #23 0GR0-052001 — Spring, Driven Pulley Cvtech
- #26 0JYA-051016 — Bearing Nylon Washer
- #10 0JYA-051013-10001 — Nut, Drive Pulley
